Wire Harness Split Braided Sleeving Woven Wrap Cable Protection Sleeve
Xiamen QX Trade Co., Ltd.- Certification:CSA, UL, RoHS, ISO
- Type:Self-Close
- Material Type:Polyester Monofilament and Multifilament
- Operating Range:-50°c - +150°c
- Flammability:UL94 V0, DIN5510
- Melt Point:240+-10ºC
Base Info
- Model NO.:BS-WS005
- Standard Color:Black
- Feature1:High Abrasion Resistance
- Feature2:Fireproof
- Certificate:RoHS, Halogen Free
- Cutting Tool:Scissors

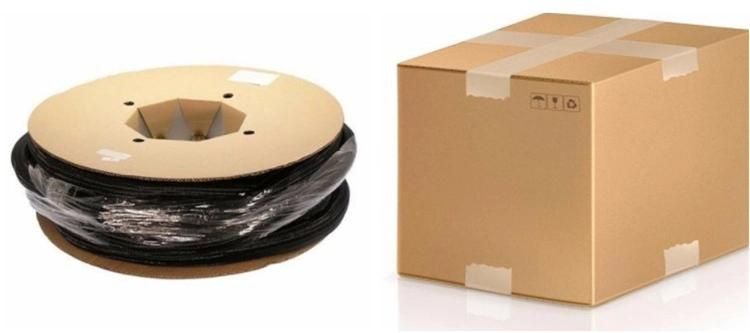

- Transport Package:100m,Roll, 50m,Roll, 25m,Roll or ODM
- Specification:5mm~50mm ID
- Trademark:EKO
- Origin:Fujian, China
- HS Code:630790009
- Production Capacity:3000000 M,Month
Description
Basic Info.
Model NO. BS-WS005 Standard Color Black Feature1 High Abrasion Resistance Feature2 Fireproof Certificate RoHS, Halogen Free Cutting Tool Scissors Transport Package 100m/Roll, 50m/Roll, 25m/Roll or ODM Specification 5mm~50mm ID Trademark EKO Origin Fujian, China HS Code 630790009 Production Capacity 3000000 M/MonthProduct Description

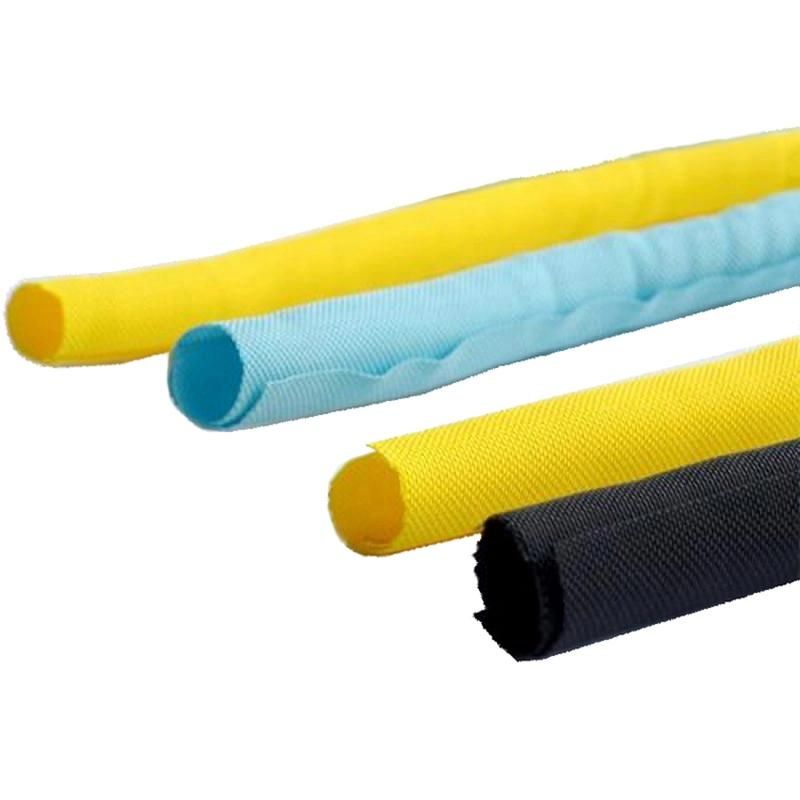

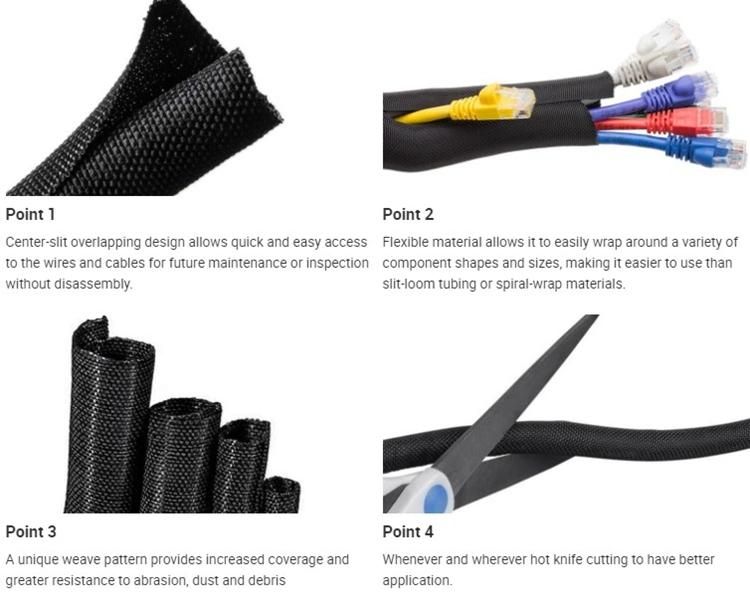

Flame-Retardant PET Split Slef Closing Braided Cable WrapWoven wrap-around sleeving is a non-expandable sleeving woven from monofilament (weft) and multifilament (wrap) polyester yarns. It provides a lightweght, cost-effective and tough solution for the protection of a wide range of components. Its inherent flexibility allows it to bend, coil and conform to irregular shapes, while its open design allows it to be installed on completed assemblies.
Datasheet

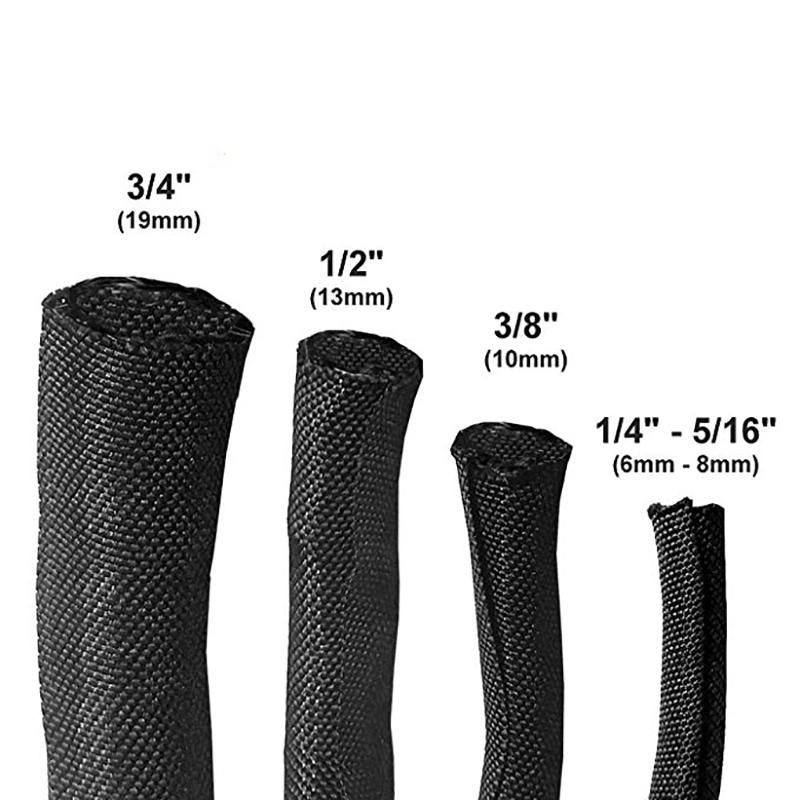

Part No. | Size | Max. Bundle Dia. | Packing (L) |
BS-WS005 | 5.0mm | 6.0mm | 100m/roll |
BS-WS008 | 8.0mm | 9.0mm | 100m/roll |
BS-WS010 | 10.0mm | 11.0mm | 100m/roll |
BS-WS013 | 13.0mm | 14.0mm | 50m/roll |
BS-WS016 | 16.0mm | 17.0mm | 50m/roll |
BS-WS019 | 19.0mm | 20.0mm | 25m/roll |
BS-WS025 | 25.0mm | 27.0mm | 25m/roll |
BS-WS029 | 29.0mm | 31.0mm | 25m/roll |
BS-WS032 | 32.0mm | 34.0mm | 25m/roll |
BS-WS038 | 38.0mm | 40.0mm | 25m/roll |
BS-WS050 | 50.0mm | 52.0mm | 25m/roll |

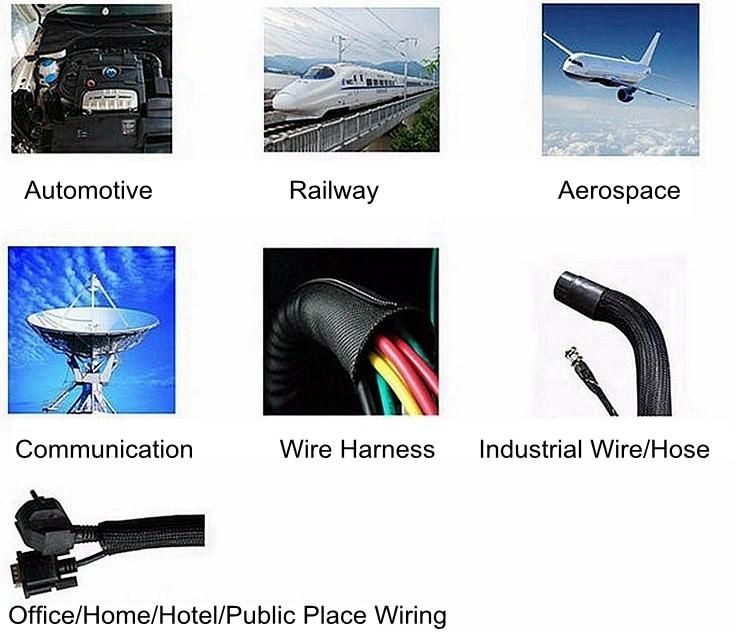

Application
Most commonly used over wire harnesses, cable assemblies, flat ribbon cables, tubes and hoses to provide a tough, durable protection in automotive, automatic equipment, railways and panel boards.
