• Model NO.：OXC
• Specification：Standard, SGS
• Trademark：Powtech
• Origin：China
• HS Code：7326
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. OXC Specification Standard, SGS Trademark Powtech Origin China HS Code 7326 Production Capacity 10000PCS/Month

Product Description

OPGW/ADSS Cable Fittings Transmission Line Accessories

Description:
The OPGW/ADSS fittings are used for fixing OPGW/ADSS cable on pole/towers of aerial electric lines or in transforming stations...

Advantages:
1.20 years experiences
2.ISO 9001: 2008
3.Faster delivery
4.Good Quality
5.Professional technical support on installation


Product Model	Cable Diameter (mm)	Armor Rods (mm)	Anchor Shackle
AQXD 200-12.0	9.0-12.0	800	U-7
AQXD 200-14.0	12.1-14.0	1000	U-7
AQXD 200-16.0	14.1-16.0	1100	U-7

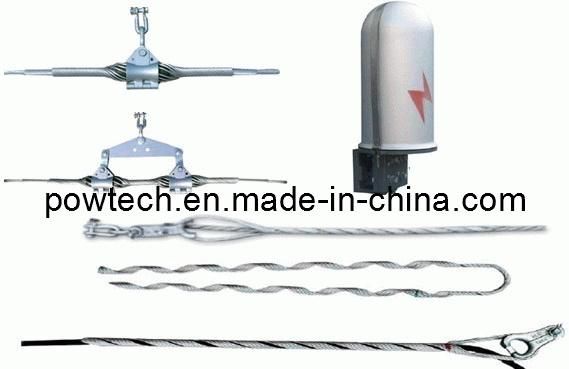

The OPGW/ADSS fittings include:
(1) Preformed retention sets
(2) Preformed suspension sets
(3) Splice closure
(4) Spiral vibration damper
(5) Stockbridge vibration damper
etc.

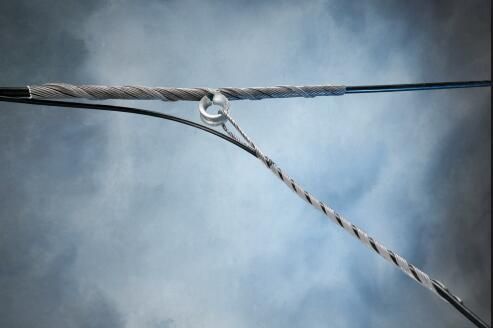

>Preformed  Retention Sets:

The preformed retention sets have simple and stable structure, easy to install and low price.

Main data sheet:
1.Material: Aluminum clad steel
2.Suitable cable span: 100m to 1000m
3.Breacking strength: 5KN to 150KN

Application:

1. Terminal pole tower, tension pole/tower,
2. Pole/tower with corner angles greater than 15°and RTS no more than 10kN
3. Suitable for city ADSS cable installation.

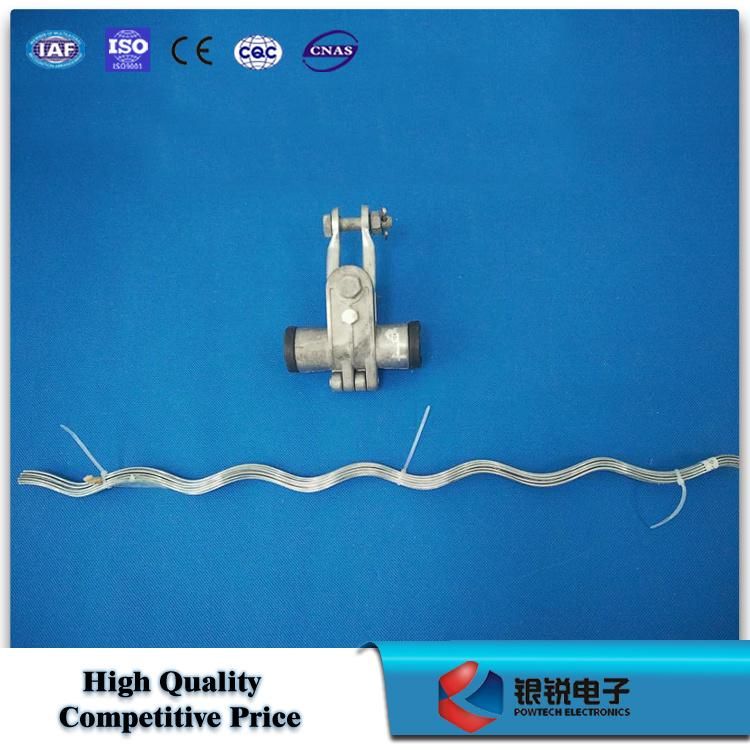

Preformed  Suspension Sets:

The preformed suspension set for ADSS cable is specifically designed for the installation of cables on the pole/tower. The unilateral angle of the suspension will be 15º-18º.This suspension is recommended as being superior to armor-clamp combinations, for protecting conductors from bending stress, compression stress and abrasion. The grip strength of the clamp is bigger than 10%-20% of the rated tensile strength.

Main data sheet:
1. Material: aluminum clad steel
2. Suitable cable span: 100m to 1000m
3. Breacking strength: 5KN to 150KN


Application:
1. Poles/ towers with corner angle of less than or equal to 25°n straight lines.
2. The angle of single-side suspensions  is between15°-18°
