• Model NO.：PHST

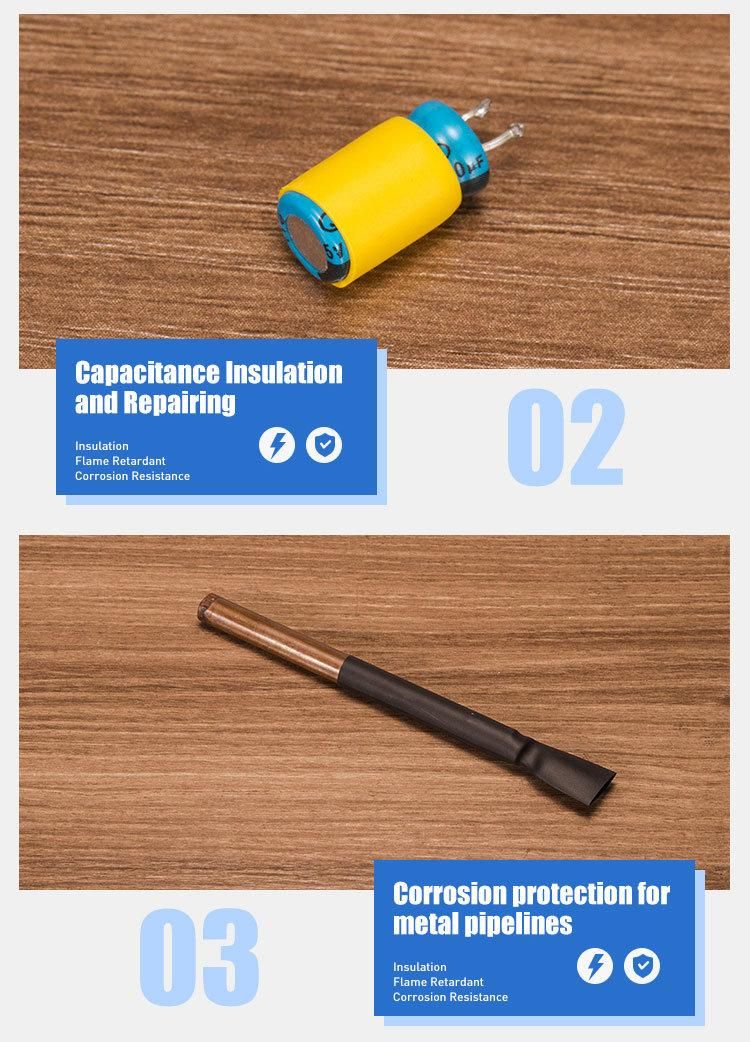

• Application：Electrical Winding Insulation
• Chemistry：Hybrid Insulation
• Thermal Rating：Y 90
• Maximum Voltage：<10kv
• Size：20.0,10.0mm
• Colour：Black, Red, Yellow Green
• Temperature Range：-55~125 Deg C
• Shrinking Ratio：2:1
• Voltage：600V
• Initial Shrinking Temperature：70c
• Fully Shrinking Temperature：125c
• Transport Package：Exporting Carton
• Specification：ROHS
• Trademark：Maxwel
• Origin：Wenzhou
• HS Code：39173100
• Production Capacity：10, 000 PCS,Day

SizeDimensio nbefore shrinking (mm)Dimensio nafter shrinking (mm)Standard packaging (m/disc)Application
(mm)Internal diameterWall thicknessMaxinternal diameterWall thickness2.02.4 ± 0.30.25  ± 0.050.9  ±   0.10.35  ±   0.052001.1~1.83.03.4 ± 0.40.25  ± 0.051.4  ±   0.10.40  ±   0.052001.6~2.74.04.5 ± 0.40.25  ± 0.051.8  ±   0.10.45  ±   0.052002.1~3.65.05.4 ± 0.40.25 ±   0.0523  ±   0.10.55  ±   0.151002.6~4.56.06.4 ± 0.40.28 ±   0.152.8  ±   0.20.55  ±   0.151003.1~5.47.07.4 ±   0.40.28 ±   0.153.3  ±   0.20.55  ±   0.151003.7~6.38.08.4 ± 0.50.28  ± 0.153.8  ±   0.20.55  ±   0.151004.2~7.21010.5 ± 0.50.30 ±   0.154.8  ±   0.20.55  ±   0.151005.2~9.01212.5 ± 0.50.30  ±   0.155.7  ±   0.30.60  ±   0.151006.2~111414.5 ±   0.50.35  ±   0.156.7  ±   0.30.60  ±   0.151007.3~131616.5  ± 0.60.38  ±   0.157.7  ±   0.30.65  ±   0.151008.3~152021.0  ± 0.80.40  ±   0.159.7  ±   0.30.75  ±   0.1510010.4~192525.8 ±   0.80.45  ±   0.1511.0  ±   1.00.75  ±   0.15012.8~243030.8 ±   0.80.45  ±   0.1514.0  ±   1.00.75  ±   0.155016~293535.8 ±   0.80.50  ±   0.2016.0  ±   1.00.85  ±   0.205018~344042.0 ± 1.00.50  ±   0.2019.0  ±   1.00.85  ±   0.205021~395051.0 ±   1.00.50  ±   0.2024.0    ±   1.00.85  ±   0.205026~496061.0 ± 1.00.65  ±   0.2029.0  ±   1.00.85  ±   0.202535~557071.0 ±   1.00.65  ±   0.2033.0  ±   2.01.00  ±   0.202540~658081.0 ± 1.00.65  ±   0.2037.0  ±   2.01.00  ±   0.202545~759091.0 ±   1.00.65  ±   0.2043.0  ±   2.01.00  ±   0.202550~88100102.0 ± 2.00.65  ±   0.2048.0  ±   2.01.00  ±   0.202555~95120122.0  ± 2.00.80  ±   0.2058.0  ±   2.01.50  ±   0.201565~115150152.0  ± 2.00.80  ±   0.2073.0  ±   2.01.50  ±   0.201580~145180182.0 ± 2.00.80 ± 0.2088.0  ±   2.01.50  ±   0.201595~175wire coat and insulationmake the joint of terminal block and wire insulateddevide the colorswater-proofprotection and insualtion of insistors and electrical capacitors

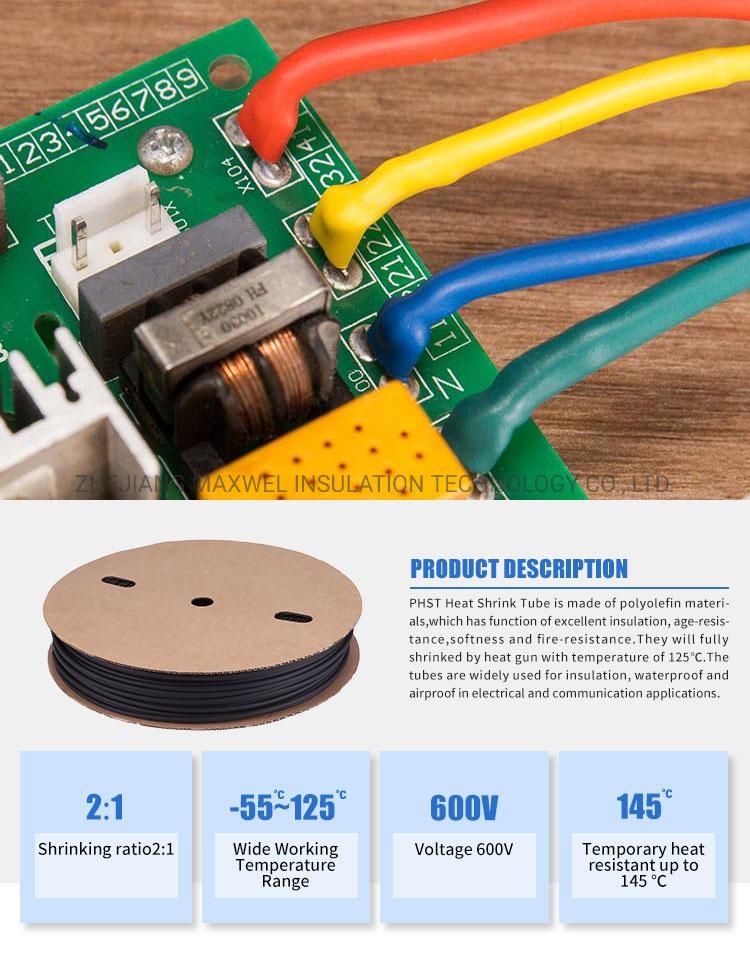

Features:

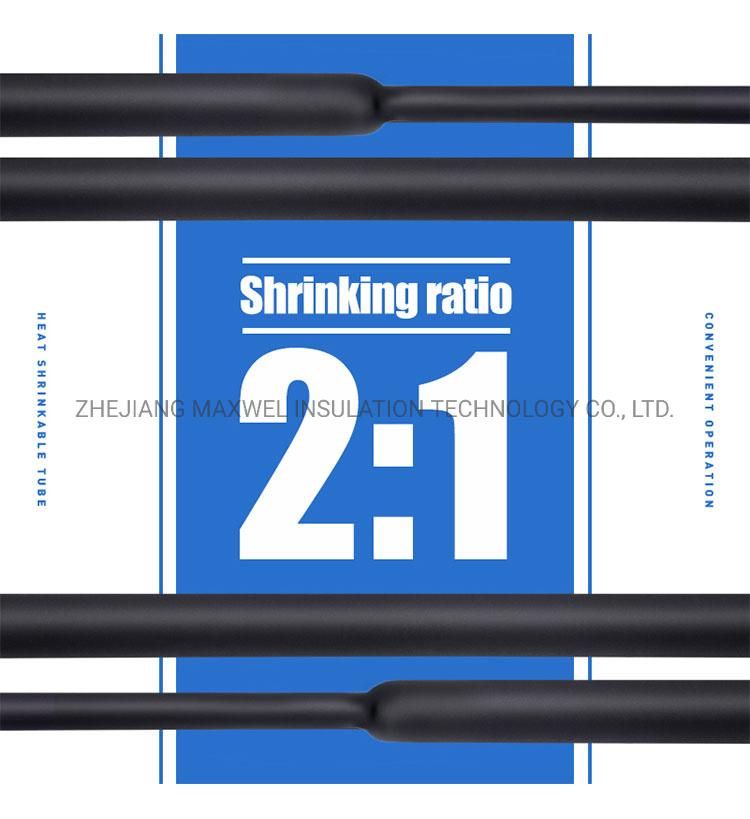

Shrink ratio: 2: 1
Operating temperature: -55 to 125 degree
Minimum fully recovery temperature: 110degree
Longitudinal shrinkage≤ 5%
Soft, Flammability, Environmental protection
The specification range from 1.0mm to 180mm, special specification is accepted.

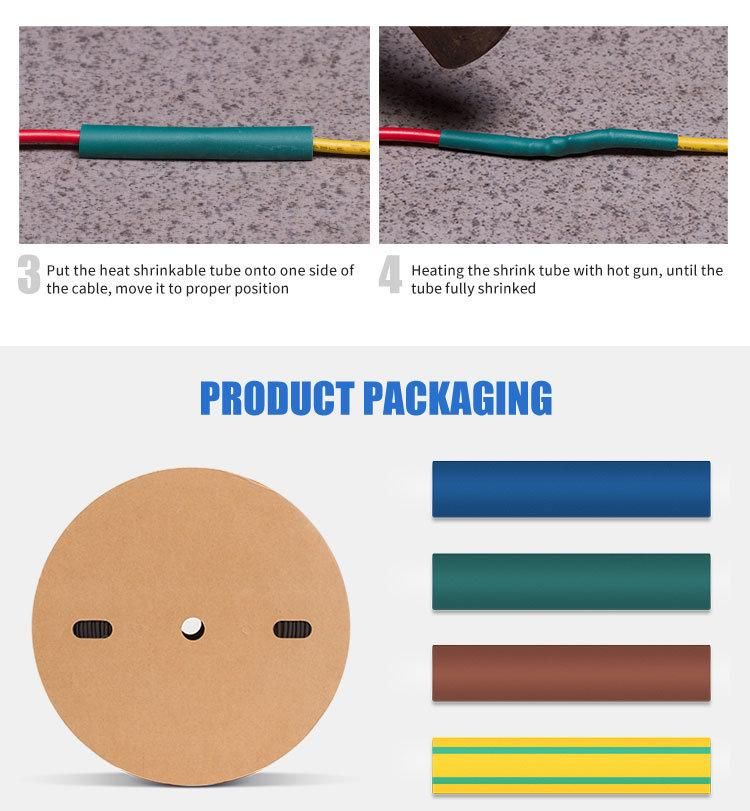

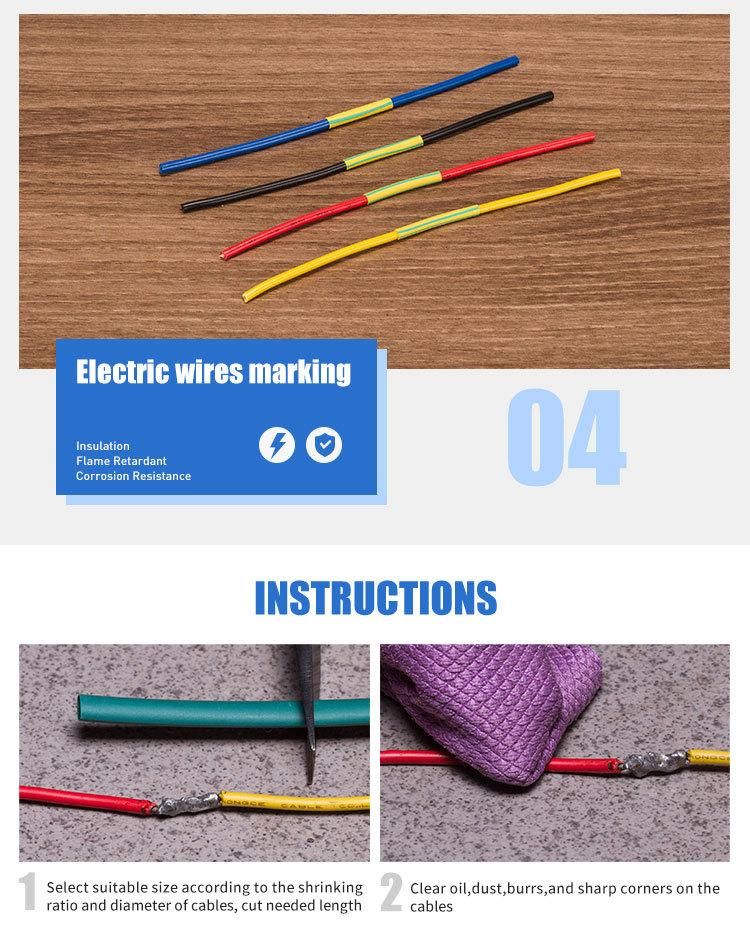

Easy to operate, shrinking with the drying oven and the hot air gun
Standard color: Yellow and green Interaction
