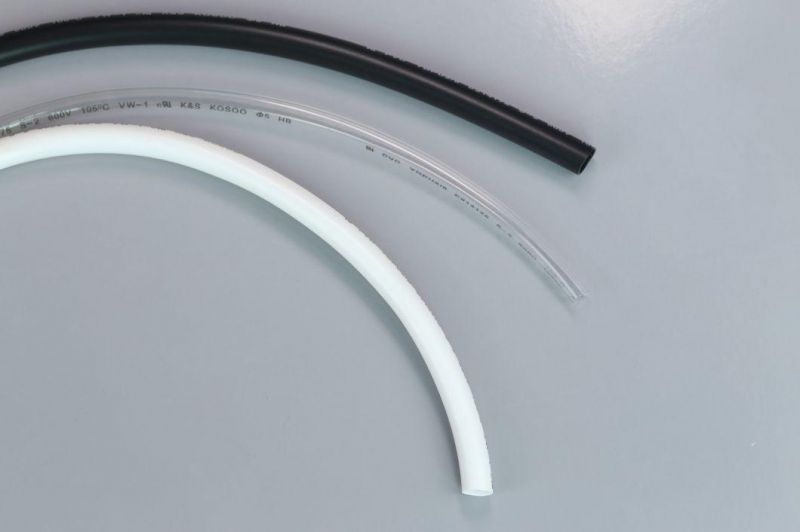

RoHS UL Flame Retardant 105º C PVC Sleeve

GUANGZHOU KAIHENG SPECIAL WIRE&CABLE CO., LTD.
  • Certification：UL, RoHS, ISO
  • Color：White
  • IP Rating：IP54
  • Usage：Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable
  • Material：PVC
  • Type：Insulation Protection

Base Info

  • Model NO.：S-2
  • Transport Package：Cartons
  • Specification：1.0mm-30mm
  • Origin：China
  • Production Capacity：50000000000year

Description

RoHS UL Flame Retardant 105º C PVC SleeveRoHS UL Flame Retardant 105º C PVC SleeveFeatures/Benefits
  • Outstanding electrical and mechanical properties.
  • 105ºC,VW-1,300V/600V
  • Conform to RoHS and Sony-ss00259 environmental directive.
Operating temperature range
  • -30ºC~105ºC
Approvals/Specification
  • UL224 YDPU2/8 CSA22.2
NO.198.1-M1998

PropertyValue
Tensile strength <MPa>≥10.4
Elongation <%>≥100
Tensile strength after aging<MPa>≥7.3
Elongation after aging<%>≥100
Flexibility after agingNo crack,remain flexible
Insulating voltage<2500V 60S>Pass
Minimum volume resistivity≥1010
Cool bending <-30ºC 1h>No crack
Radial shrindage <%>≥±5
Heat shockNo crack

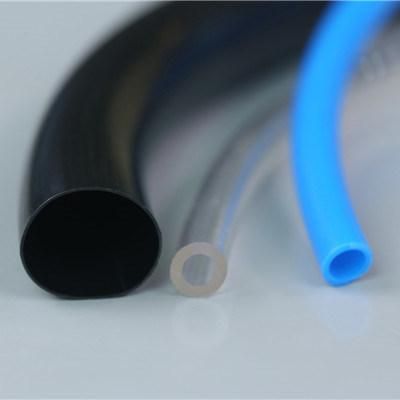

Sizes/colors                                      inside diameter: ф5.0mm~ф19.5mm         wall thickness:0.3mm~2.0mm
colors :ALL colors are available. RoHS UL Flame Retardant 105º C PVC SleeveRoHS UL Flame Retardant 105º C PVC SleeveRoHS UL Flame Retardant 105º C PVC Sleeve
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in KOSOO standard paper rolls and cartons. If you have special request,we could do the OEM packing for you.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
