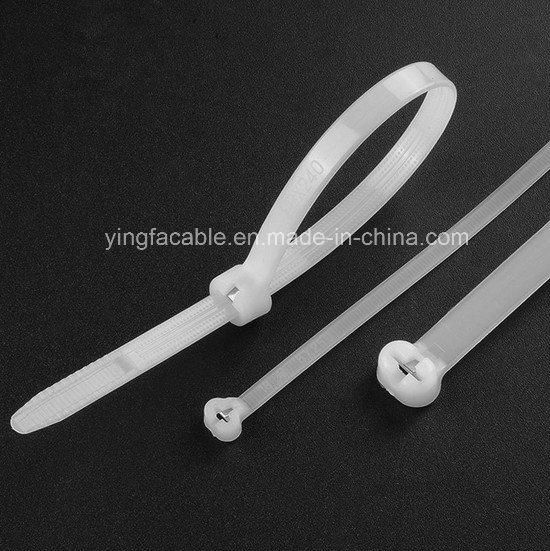

Self Locking Plastic Nylon Cable Ties with Steel Ball
Yueqing Yingfa Cable Accessories Co., Ltd.- Certification：RoHS, ISO, CE
- Color：White
- Fire Rating：94V2
- Size：Various
- Material：Nylon
- Type：Self-Locking Cable Tie
Base Info
- Model NO.：YF
- Colour：Black, White, Red, Green, etc
- Width：2.5mm, 3.6mm, 4.5mm, 4.8mm, 7.6mm, 8.7mm
- Length：100mm~600mm
- Feature：Heat-Resistant, UV- Resistant
- Tensile Strength：18-250lbs
- Application：Used to Bundle Cables,Wires,Conducts,Chemical,etc
- Characteristics：Easy to Opertate
- Small Order：Accept
- Custom Label：Accept
- Sample：Free
- Transport Package：100PCS,Polybag with Label
- Specification：all sizes are available
- Trademark：INGFA
- Origin：China
- HS Code：3926909090
- Production Capacity：999999999PCS,Week
Description
Basic Info.
Model NO. YF Colour Black, White, Red, Green, etc Width 2.5mm, 3.6mm, 4.5mm, 4.8mm, 7.6mm, 8.7mm Length 100mm~600mm Feature Heat-Resistant, UV- Resistant Tensile Strength 18-250lbs Application Used to Bundle Cables,Wires,Conducts,Chemical,etc Characteristics Easy to Opertate Small Order Accept Custom Label Accept Sample Free Transport Package 100PCS/Polybag with Label Specification all sizes are available Trademark INGFA Origin China HS Code 3926909090 Production Capacity 999999999PCS/WeekProduct Description
Nylon Stainless Steel Inlay Block Ties-nylon 66Features:
1. For outdoor and indoor use
2. Material : Nylon 66 , steel . 94v-2
3. Specification : UL approved material .
4. Heat resistant , high tensile strength , easy to opertate
5. Working temperature :-48'C -85'C
6. Many colors and sizes can be customized.
Data Sheet:
| Item No. | Aprox Length mm(inch) | Approx. Width mm(inch) | Max.Bundle Dia. mm(inch) | Min. Loop Tensile Strength N(lbs) |
| YF-3×100 | 100(3.94) | 3(0.118) | 22(0.87) | 80(18) |
| YF-4×150 | 150(5.91) | 4(0.157) | 35(1.38) | 160(36) |
| YF-4×200 | 200(7.87) | 4(0.157) | 53(2.09) | 160(36) |
| YF-5×250 | 250(9.84) | 5(0.197) | 65(2.56) | 200(45) |
| YF-5×300 | 300(11.81) | 5(0.197) | 76(2.99) | 200(45) |
| YF-5×380 | 380(14.96) | 5(0.197) | 102(4.02) | 200(45) |
| YF-6×200 | 200(7.87) | 6(0.236) | 53(2.09) | 220(49.5) |
| YF-7×300 | 300(11.81) | 7(0.276) | 76(2.99) | 250(56.3) |
| YF-8×145 | 145(5.7) | 8(0.315) | 34(1.33) | 250(56.3) |
| YF-8×175 | 175(6.89) | 8(0.315) | 43(1.69) | 250(56.3) |
| YF-8×200 | 200(7.87) | 8(0.315) | 53(2.09) | 250(56.3) |
| YF-8×240 | 240(9.45) | 8(0.315) | 64(2.52) | 250(56.3) |
| YF-8×300 | 300(11.81) | 8(0.315) | 76(2.99) | 250(56.3) |
| YF-8×400 | 400(15.75) | 8(0.315) | 102(4.02) | 500(112.5) |
| YF-10×300 | 300(11.81) | 10(0.394) | 76(2.99) | 500(112.5) |
| YF-10×350 | 350(13.78) | 10(0.394) | 97(3.82) | 500(112.5) |
| YF-10×400 | 400(15.75) | 10(0.394) | 102(4.02) | 550(123.7) |
| YF-10×450 | 450(17.72) | 10(0.394) | 120(4.72) | 550(123.7) |
| YF-10×600 | 600(23.62) | 10(0.394) | 186(7.32) | 550(123.7) |

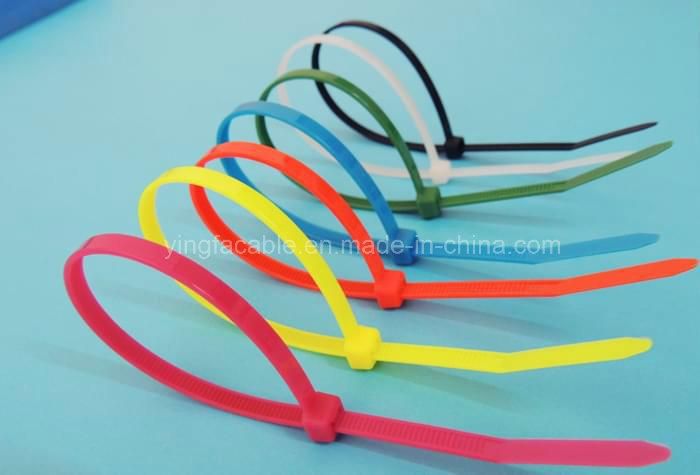

Any colour could be customized:

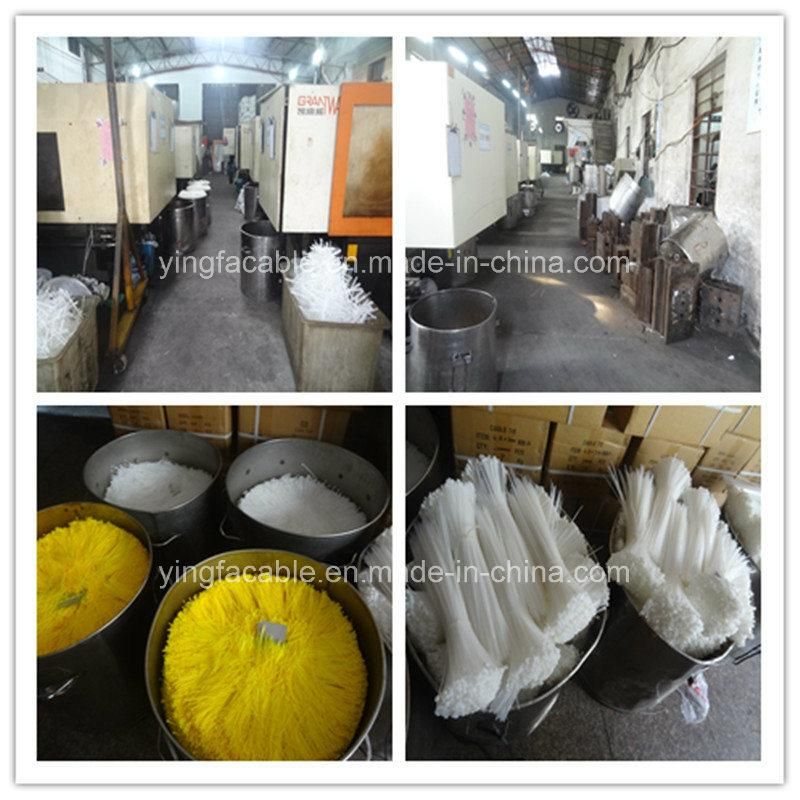

Company Profile:
Yueqing Yingfa Cable Accessories Co., Ltd, is a hi-tech enterprise, occupied with a professional experts, stainless steel cable tiePlastic stuck stainless steel cable tiePlastic covered stainless steel cable tiePlastic stuck stainless steel cable tie doctors, and skilled technicians, imported foreign advanced production and test equipment, mainly manufacture nylon tie, steel nail clip, wiring cap, terminal, cable marker, spiral wrapping bands, cold compressed connector and etc.
Based on excellent quality and good reputation and complete after-service service, the products are widely exported to America, Europe, Russia, Australia, Middle East and etc, established full sale network for being based on domestic market and extending overseas, won great economic profits and social appreciation.
Yueqing Yingfa Cable Accessories Co., Ltd. With strong strength, reasonable prices, excellent service and a number of enterprises to establish a long-term relations of cooperation. Warmly welcome to visit, study, business negotiations.

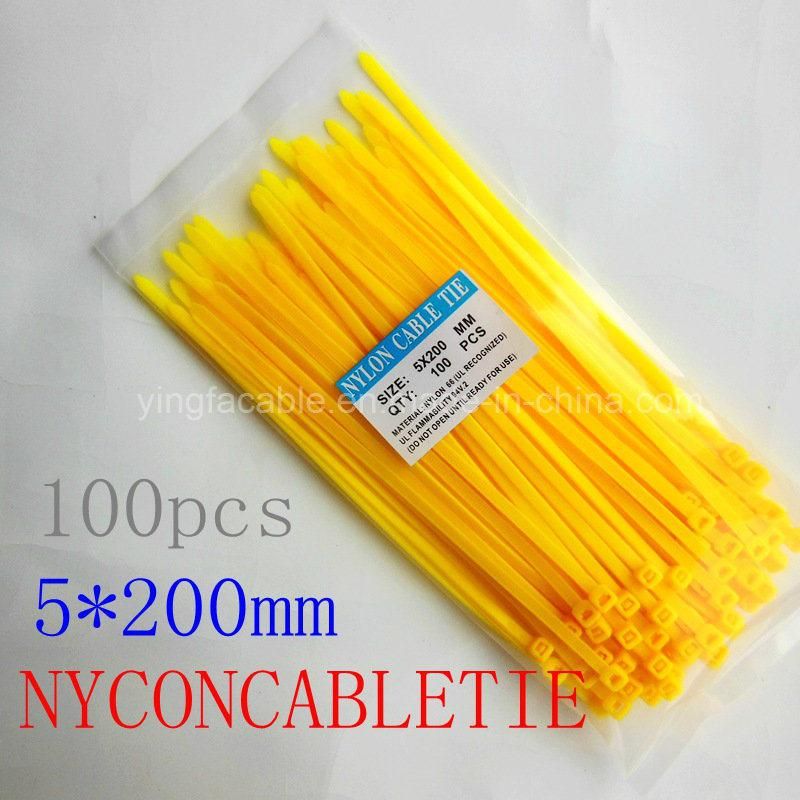

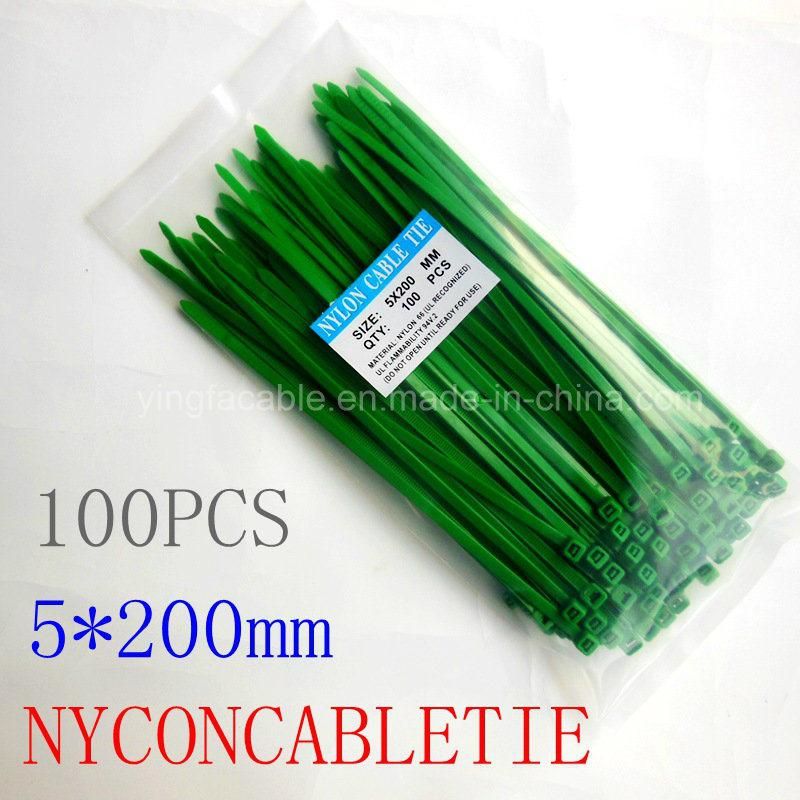

Small Package:
Welcome to contact us:
