6mm * 200mm Woven Wrap Split Braided Sleeving Self-Closing Wrap Black

Xiamen QX Trade Co., Ltd.
  • Certification：CSA, UL, RoHS, ISO, Halogen Free
  • Color：Black
  • IP Rating：IP50
  • Usage：Electric Wire
  • Material：Polyester Monofilament and Multifilament
  • Type：Cable Sleeve

Base Info

  • Model NO.：BS-WS006
  • Material Type：Polyester Mutifilament and Monofilament
  • Operating Range：-50°c±150°c
  • Flammability：UL94 V0, DIN5510
  • Melt Point：240c±10c
  • Size：5mm~50mm
  • Standard Color：Black
  • Feature：Highly Abrasion Resistance
  • Certificate：RoHS, Halogen Free
  • Transport Package：100m,Roll, 50m,Roll, 25m,Roll or ODM
  • Specification：6mm*20mm
  • Trademark：EKO
  • Origin：Fujian, China
  • HS Code：630790009
  • Production Capacity：3000000 M,Month

Description

Part No.SizeMax. bundle Dia.Packing (L)BS-WS0033.0mm4.0mm200m/rollBS-WS0055.0mm6.0mm100m/rollBS-WS0088.0mm9.0mm100m/rollBS-WS01010.0mm11.0mm100m/rollBS-WS01313.0mm14.0mm50m/rollBS-WS01616.0mm17.0mm50m/rollBS-WS01919.0mm20.0mm25m/rollBS-WS02525.0mm27.0mm25m/rollBS-WS02929.0mm31.0mm25m/rollBS-WS03232.0mm34.0mm25m/rollBS-WS03838.0mm40.0mm25m/rollBS-WS05050.0mm52.0mm25m/rollFeature

1. Easy, cost and labor effective installation
2. More flexible than split convoluted or spiral wrap
3.25% edge overlap
4. Cut and abrasion resistant
5. Halogen free
6. Retains shape and rigidity throughout -50º C to 150º C temperature range
7. Melt temp. 250º C
6mm * 200mm Woven Wrap Split Braided Sleeving Self-Closing Wrap Black

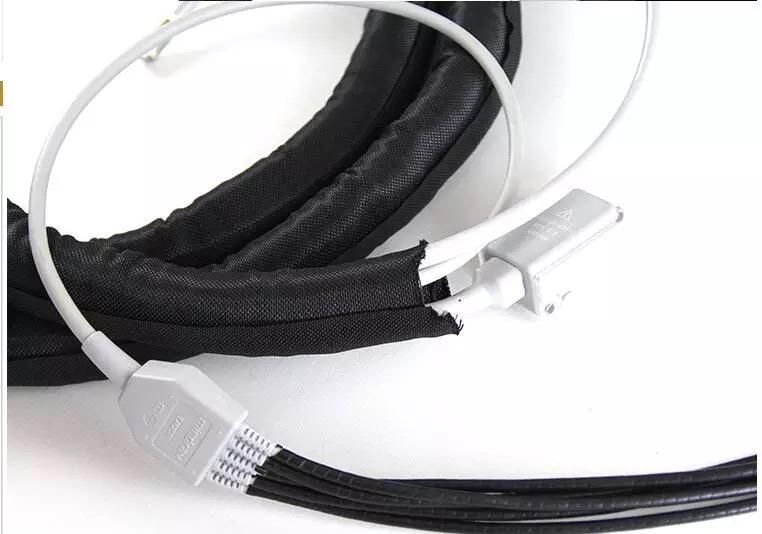

Application
Most commonly used over wires harnesses, cable assemblies, flat ribbon cables, tubes and hoses to provide a tough, durable protection in automotive, automatic equipment, railways and panel boards.
6mm * 200mm Woven Wrap Split Braided Sleeving Self-Closing Wrap Black

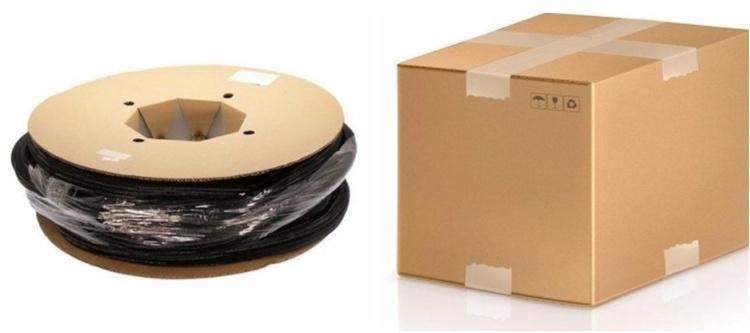

Packing

6mm * 200mm Woven Wrap Split Braided Sleeving Self-Closing Wrap Black
6mm * 200mm Woven Wrap Split Braided Sleeving Self-Closing Wrap Black
6mm * 200mm Woven Wrap Split Braided Sleeving Self-Closing Wrap Black
6mm * 200mm Woven Wrap Split Braided Sleeving Self-Closing Wrap Black
6mm * 200mm Woven Wrap Split Braided Sleeving Self-Closing Wrap Black

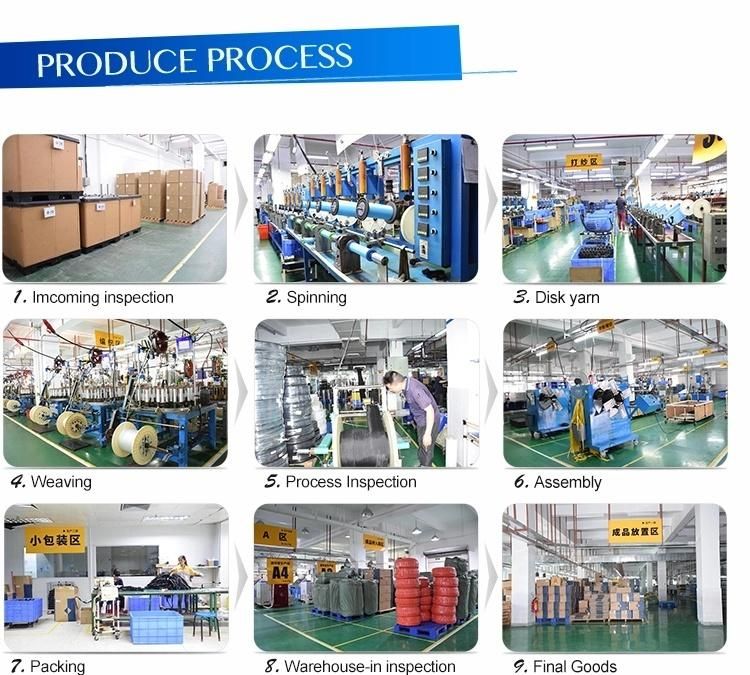

Factory Show & Community Work
