• Model NO.：Comflex
• Product Name：Waterproof Steel Flexible Metal Conduit, PVC Coate
• Place of Origin：Jiangsu , China(Mainland)
• Brand Name：Comflex
• Size/ID：3-102mm
• Od：5-110mm
• Thickness：0.2-1.5mm
• Temperature：-40 to 120 Degree
• Coating：PVC Coating Optional
• Customize：Acceptable
• Coated：PVC
• Transport Package：Standard Seaworthy Package
• Specification：CE,ROHS
• Trademark：Comflex
• Origin：Wuxi, Jiangsu, China(Mainland)
• HS Code：7307190000
• Production Capacity：50000 Meter,Meters Per Month

Material:stainless steel grade 201/304/316L/321galvanized steelSizeID3.2-57mmID3.2-51mmOD4-57mmThickness0.2-1.5mmPressure-10 to 100 barTemperature-40 to 120 degreeCertificationCE/ROHSFittingsoptionalCoatingPVD coating optionalCustomizeacceptableFeaturesIt has excellent performance of waterproof, insulation, and tensile property.The counter-lock structure provide a powerful tensile resistance, hard to break and deformHigh flexibilityUsage fieldPower plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.Payment TermTT / West Union / PAYPALDelivery TimeIn 15 daysDeliveryShipment / DHL / TNT/ FEDEX

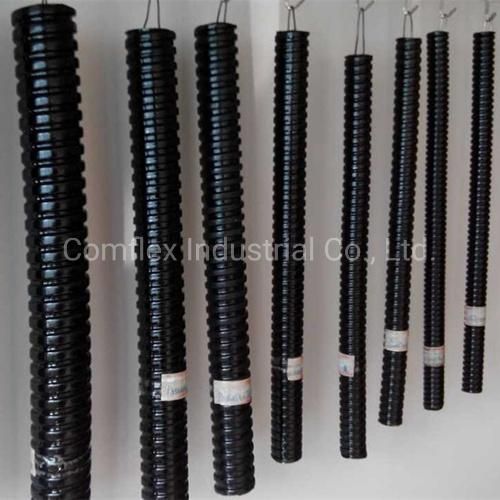

PVC coated conduit



 Technical data for flexible conduitNo.Size
(inch)Inner diameter
(mm)Outer diameter
(mm)PVC coated ODPackage
(M)W030050S1F1 3.005.006.00100W040060S1F1 4.006.007.00100W050070S1F1 5.007.007.60100W060080S1F1 6.008.009.20100W070090S1F1 7.009.009.80100W080010S1F1 8.0010.0011.00100W090011S1F1 9.0011.0012.00100W010012S1F1 10.0012.0013.00100W095125S1F1 1/49.5012.5013.2050W125157S1F1 3/812.5015.7016.6050W030060S1F1 1/216.1019.5020.5050W030060S1F1 19.1022.2023.0050W208255S1F1 3/420.8024.3025.5040W220268S1F1 22.0025.6026.8040W264316S1F11   26.4030.0031.6030W345396S1F11 1/434.5038.0039.6030W400468S1F11 1/240.0045.0046.8020W510586S1F2251.0057.0058.6010

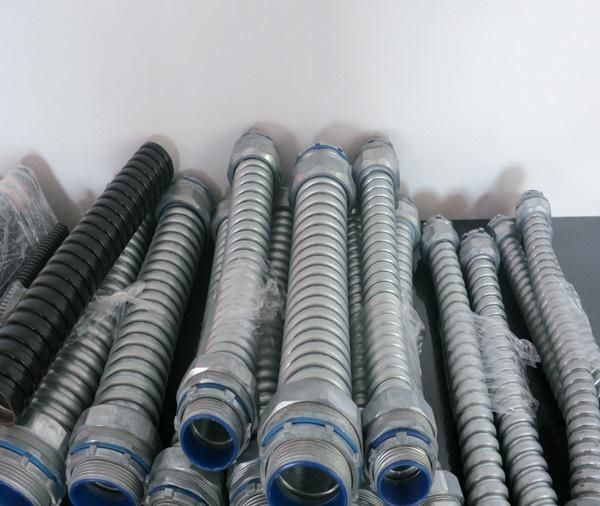

Flexible metal conduit with fitting

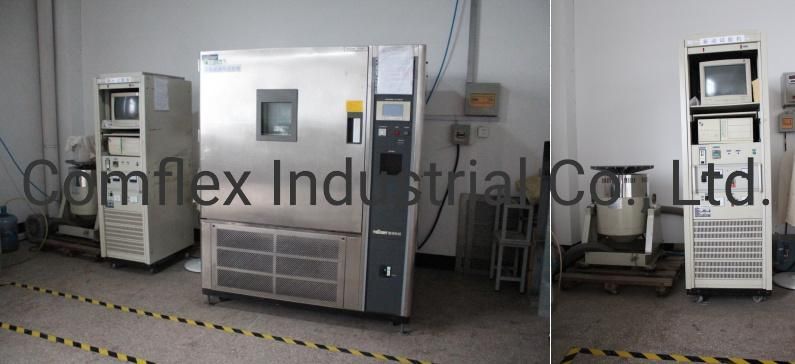

Testing machine

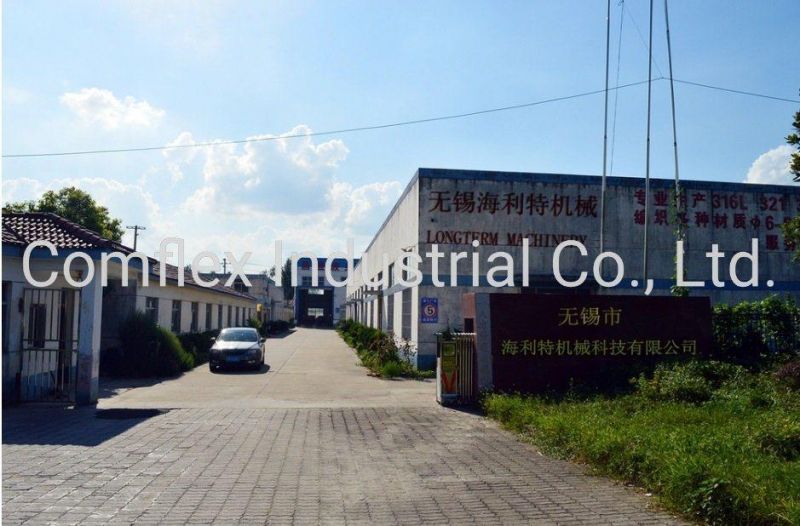

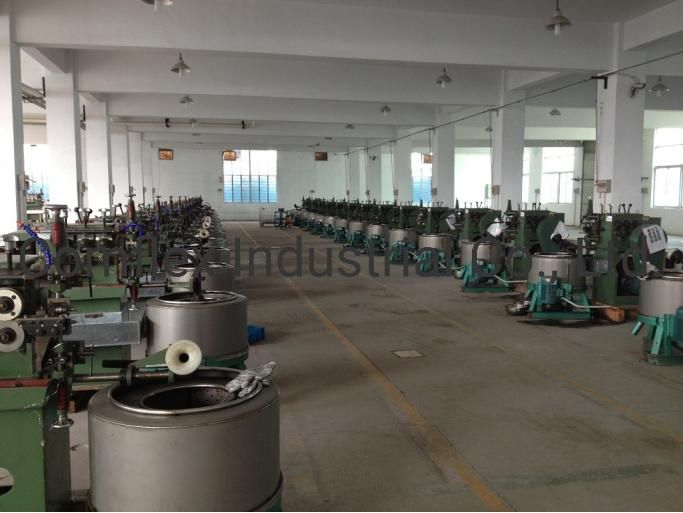

Our factory

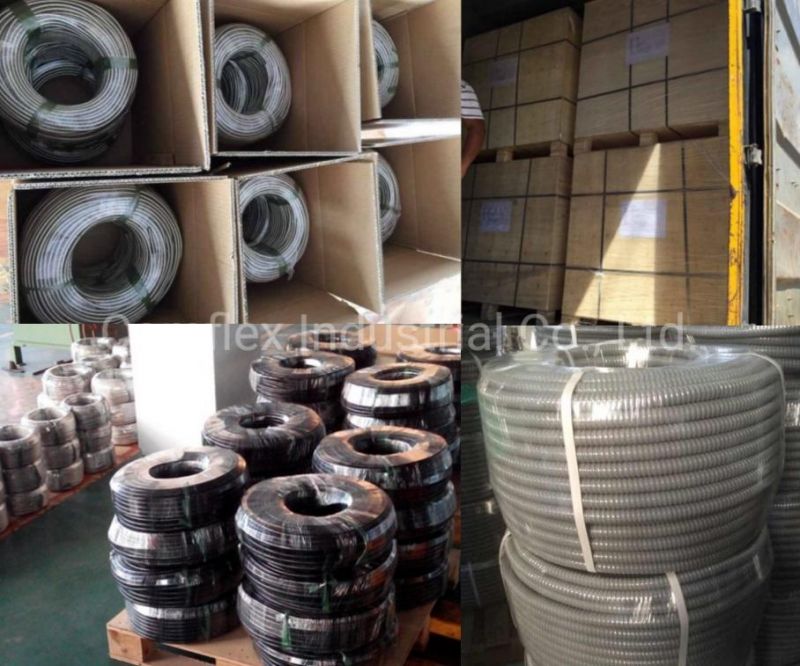

Picture of packages&delivery



---Company Info
We are a professional manufacturer of all types of metal flexible metal hose and machinery with more than 35 years of history, such as corrugated metal hose, square lock and interlock hose/ conduit, expansion joint, PTFE hose, hose making machine, etc... The hoses are widely used in energy, petroleum, petrochemical, machinery, refrigeration, construction, hydropower, nuclear power, cement, paper, medicine, transportation, mining, metallurgy, urban central heating, shipbuilding, city gas, natural gas pipeline construction, Central air conditioning, aerospace and other industries. Our products have exported to many countries such as Russia, Ukraine, USA, Australia, New Zealand, Poland, etc..


---Our Team



FAQ for conduit
Q: What material hose do you have?
A: stainless less steel (garde201, 3045, 316L, 321), galvanized steel, aluminum.
Q: What size hose and what type do you have?
A:We have both square lock and interlock hose
B: square lock hose: ID 3.2mm-57mm
C:interlock hose: ID4 till ID56
Q: Can you customize for us?
A: yes we accept customize, including hose size, diameter, and pvc coating material & thickness.
Q: why should I chose you?
A: we produce both hose and hose making machine with many years' experience and professional technology.
Q: what is your hose features?
A: performance of waterproof, powerful tensile resistance, high flexibility.
We need to know the following information before we send quotation for the hoses/conduit you need:
1.Hose/conduit material
2.Hose/conduit type, for instance, square lock or interlock hose
3.Size/diameter
4.Quantity, for big quantity order, the prices will be much lower
