H Type Aluminium Compression Tap Connector Parallel Groove Clamp

Wenzhou Ziyong Electrical Co., Ltd.
  • Certification：ISO, CE
  • Surface Treatment：Galvanised
  • Color：White
  • IP Rating：IP66
  • Material：Al
  • Type：Torsion Resistance

Base Info

  • Model NO.：LH11-LH54
  • Clamp：H Type Clamp
  • Transport Package：Export Carton
  • Specification：as your require
  • Trademark：JMA
  • Origin：China
  • HS Code：8539319900
  • Production Capacity：200000,Month

Description


Catalog No.SpecificationCrimpType of insulation silicone rubberA core hitchB core hitchMoulding-dieNumber of timesLength(mm+1)outside diameter(mm)Dia(mm2)outside diameter(mm)Dia(mm2)LH114.8-8.216-354.8-8.216-350-0244LHZ-1LH218.3-14.050-954.8-9.616-501-2363LHZ-2LH2210.0-14.050-9510.0-14.050-951-2363LHZ-2LH3113.0-22.495-2404.8-11.416-703-5363LHZ-2LH3213.0-22.495-24011.6-16.070-1503-5363LHZ-2LH4116.2-22.4150-24016.2-22.4150-2403-54114LHZ-3LH5122.4-25.9300-40010.0-14.570-1203-5389LHZ-3LH5222.4-25.9300-40014.6-18.0120-1853-5389LHZ-3LH5322.4-25.9300-40018.9-22.4185-2403-54118LHZ-3LH5422.4-25.9300-40022.4-25.9300-4003-54118LHZ-3H Type Aluminium Compression Tap Connector Parallel Groove ClampH Type Aluminium Compression Tap Connector Parallel Groove Clamp

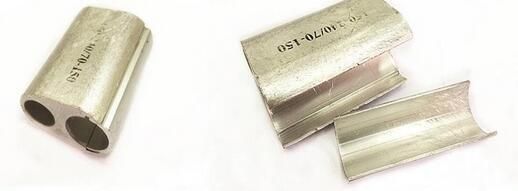

H Type Aluminium Compression Tap Connector Parallel Groove Clamp
H Type Aluminium Compression Tap Connector Parallel Groove Clamp
