ADSS Fittings Aluminum Alloy Pole Mounting Universal Pole Bracket
Qingdao Powtech Electronics Co., Ltd.- Name：Pole Bracket
- Jacket：PE
- Type：High Voltage
- Material：Aluminum Alloy
- Transport Package：Wooden Cartons
- Specification：CE, RoHS, SGS, ISO
Base Info
- Model NO.：UPB
- Trademark：POWTECH
- Origin：China
- HS Code：85044020
- Production Capacity：10000PCS,Month
Description
Overview
Product Description
Packaging & Shipping
Technical data
Application
Application: widely applied in cable connecting fittings,to support wire,conductor,cable in transmission line fittings.

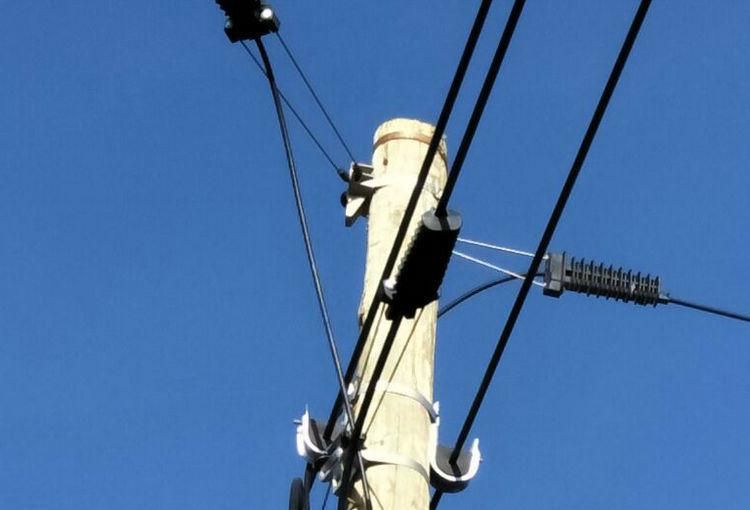

Installation
1. With steel bands
The UPB bracket can be installed on any type of pole - drilled or undrilled - with two 20x0.7 mm stainless steel bands SB207 plus two buckles B20 (check our pole banding products). Usually allow two bands of one meter each per bracket.
2. With bolts
If the top of the pole is drilled (wooden poles, occasionally concrete poles) the UPB bracket can also be secured with a 14 or 16 mm bolt. The bolt length should be at least equal to the pole diameter + 50 mm (bracket thickness). Check our bolts.
Production Line:
