• Model NO.：BS-SCW003
• Product Name：Split Braided Sleeving
• Flame Retardant：Normal
• Flammability：VW-1
• Appllication：Eletrical Insulation Protection
• Expandable：Flexible
• Temperature：50ºC to 150ºC
• Function：Wire and Cable Protection
• Appllication1：Wire Harness, Automatic Equipments, Railways, Gene
• Overlap：25% Edge Overlap
• Transport Package：100 Meter,Spool
• Specification：RoHS, UL, CSA
• Trademark：QX
• Origin：Made in China
• HS Code：4602900000
• Production Capacity：100000 Meters,Week Pet Braided Split Sleeve

Basic Info.

Model NO. BS-SCW003 Product Name Split Braided Sleeving Flame Retardant Normal Flammability VW-1 Appllication Eletrical Insulation Protection Expandable Flexible Temperature 50ºC to 150ºC Function Wire and Cable Protection Appllication1 Wire Harness, Automatic Equipments, Railways, Gene Overlap 25% Edge Overlap Transport Package 100 Meter/Spool Specification RoHS, UL, CSA Trademark QX Origin Made in China HS Code 4602900000 Production Capacity 100000 Meters/Week Pet Braided Split Sleeve

Product Description

3mm Black Flame Retardant Semi Split Braided Self Wrapped Sleeving

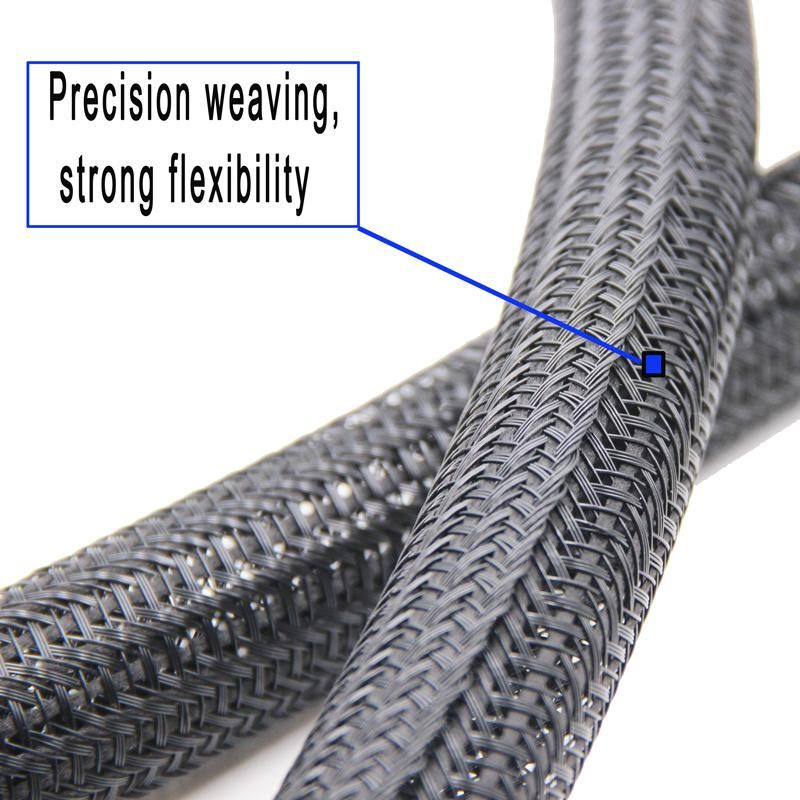

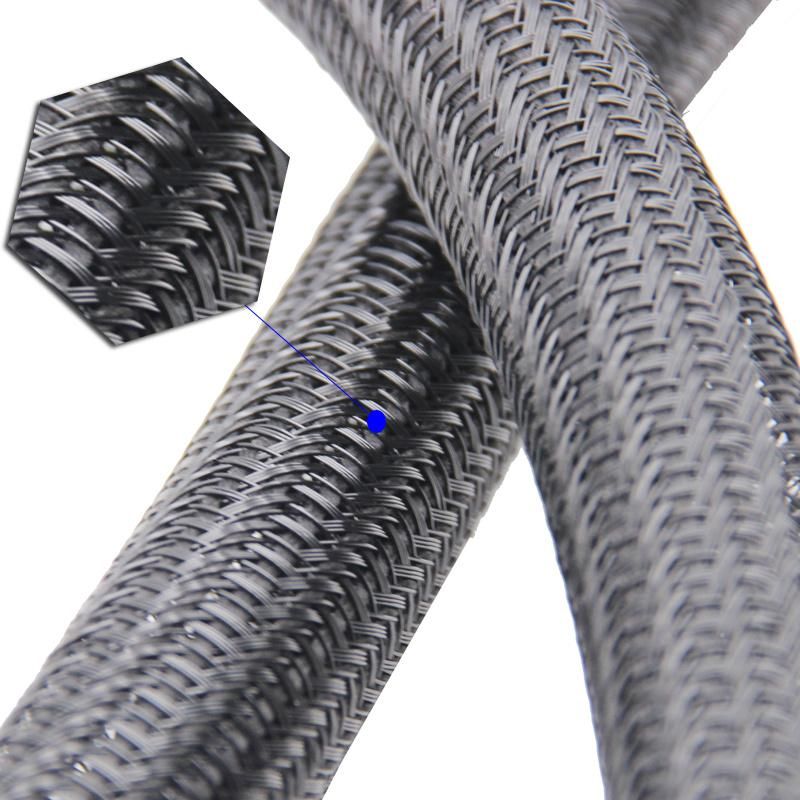

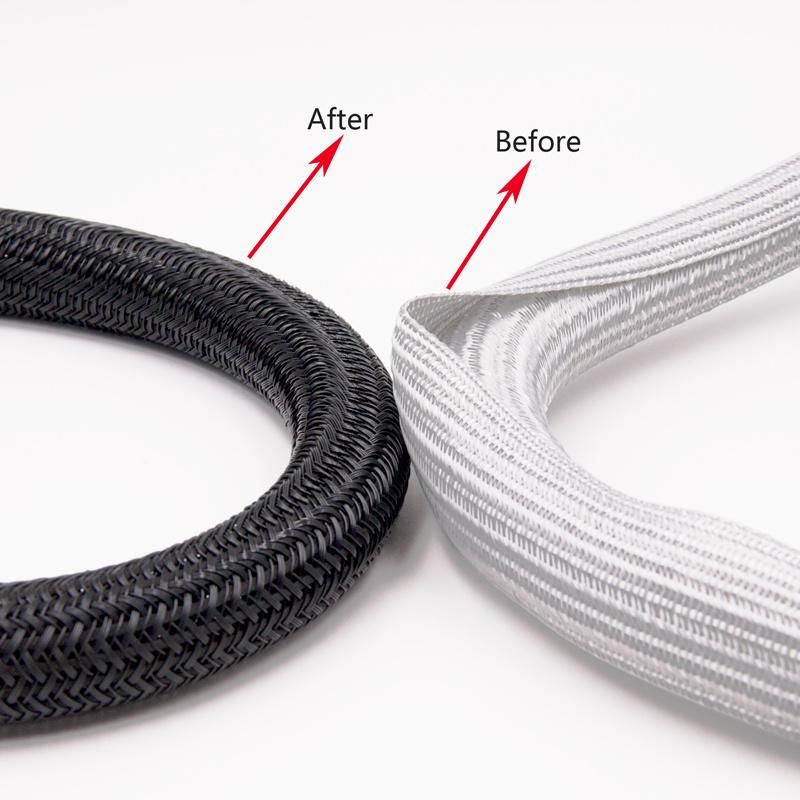

Wrappable split braided tube offers innovative solutions for the protection of breakout areas and provides easy removal
when is necessary an inspection or maintenance of cables.


The special open structure allows to be installed after other components, for example copper terminals and connectors.
A strong resilience protects wires and cables and meanwhile provides exceptional abrasion and flame resistance.






Feature:

1. Easy, cost and labor effective installation
2. More flexible than split convoluted or spiral wrap
3. 25% edge overlap
4. Cut and abrasion resistant
5. Halogen free
6. Retains shape and rigidity throughout -50º C to 150º C temperature range
7. Melt temp. 250º C

Application:

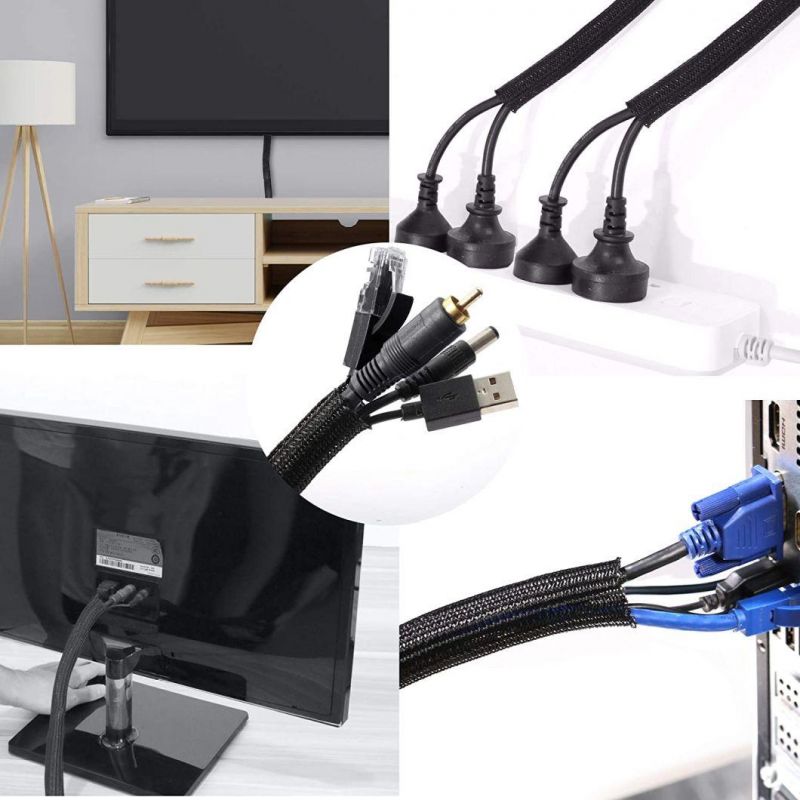

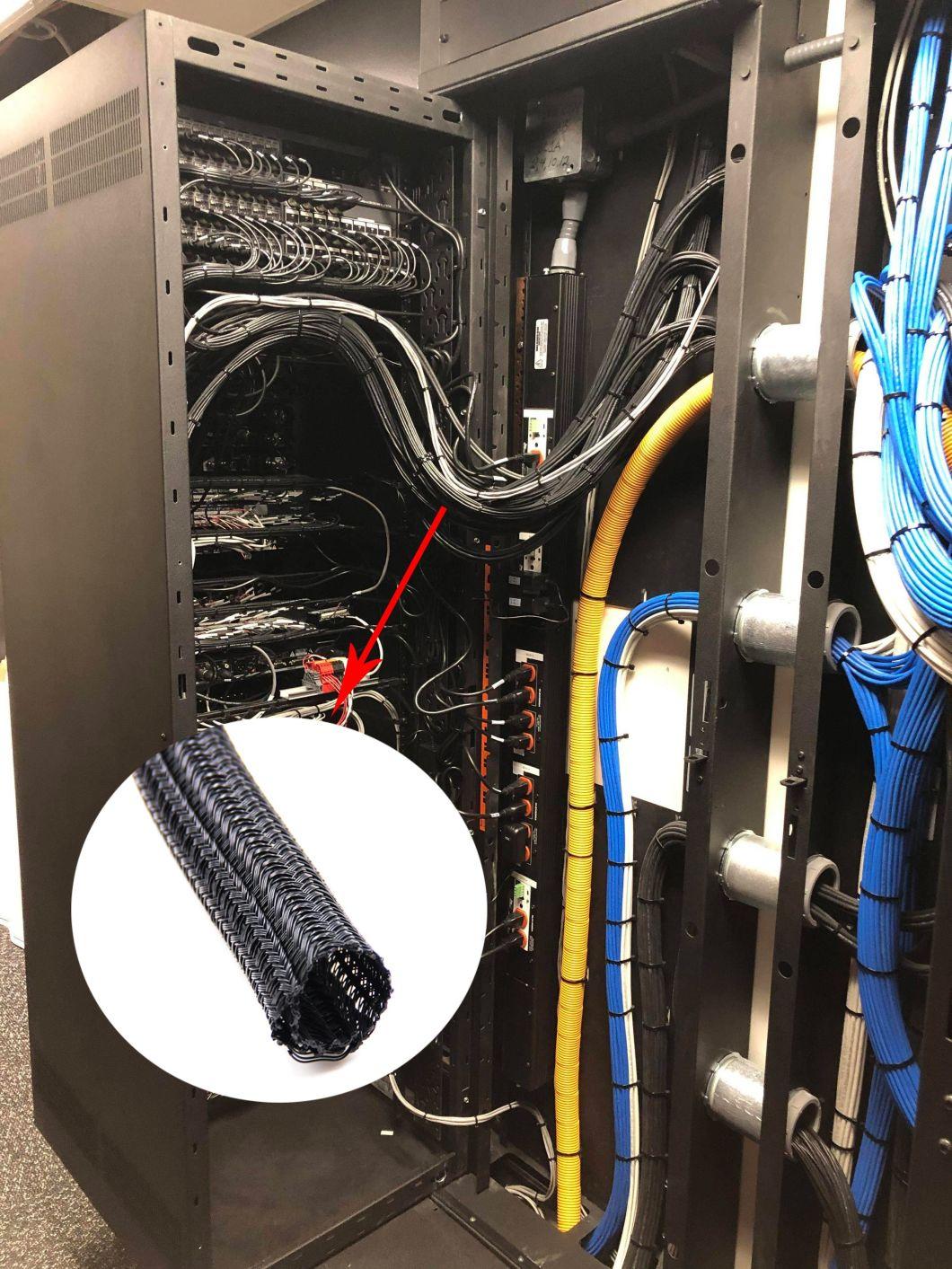

It's ideal for application in wire harness, automatic equipments, railways, general manufacturing industry where wires and tubes need a tough and durable protection.







Technical data:

1. Material: Polyester
2. Operating range: -50C-+150C
3. Melt point: 250+(-)5C
4. Flammability: VW-1
5. Standard colour: Black, Grey
6. Certificate: RoHS, Halogen Free

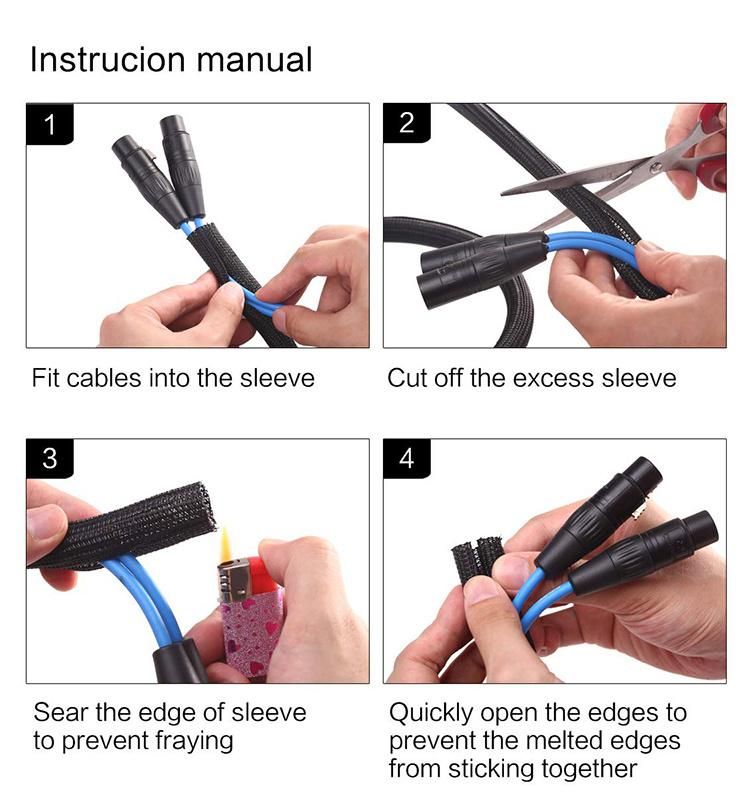

7. Cutting tool: Hot knife

Split Braided Pet Wrappable Sleeve


Part No	ID(mm)	Overlap(%)	Max Bundle Dia(mm)	Packing(L)
BS-SCW006	6	25%	7	200m/spool
BS-SCW009	9	25%	10	100m/spool
BS-SCW013	13	25%	14	50m/spool
BS-SCW016	16	25%	17	25m/spool
BS-SCW019	19	25%	20	25m/spool
BS-SCW025	25	25%	26	25m/spool
BS-SCW032	32	25%	33	25m/spool
BS-SCW038	38	25%	40	25m/spool
BS-SCW050	50	25%	52	25m/spool
