Cable Wire Preformed Guy Grip Dead End Cable Clamp
Qingdao Powtech Electronics Co., Ltd.- Certification:CCC, RoHS, ISO, CE
- Color:White
- Fire Rating:High
- Size:Customized
- Material:Aluminium Clad Steel
- Type:Self-Locking Cable Tie
Base Info
- Model NO.:NL
- Conductor Type:Stranded
- Application:Overhead
- Range of Application:Telecommunication
- Transport Package:50PCS,Carton
- Specification:CE, RoHS, SGS, ISO
- Trademark:Powtech
- Origin:China
- HS Code:73269000
- Production Capacity:1000PCS,Day
Description
Basic Info.
Model NO. NL Conductor Type Stranded Application Overhead Range of Application Telecommunication Transport Package 50PCS/Carton Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 73269000 Production Capacity 1000PCS/DayProduct Description

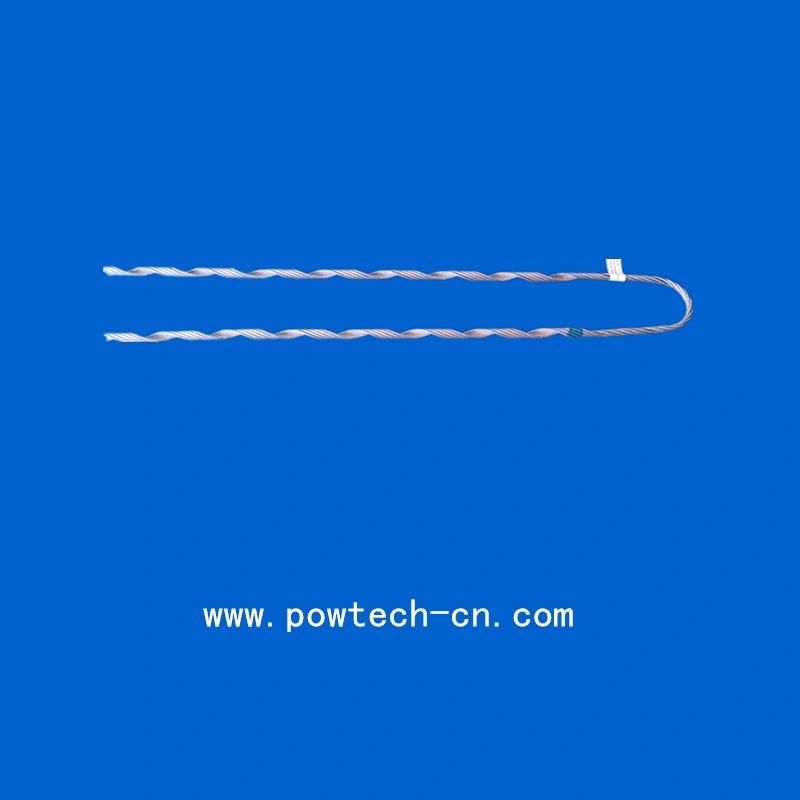

Cable Wire Preformed Guy Grip 5/16"/ Dead End Cable ClampDescription:
The guy-grip dead end clamp for conductor can be applied to bear strain on overhead bared or
insulated covered conductors in transmission & distribution lines. It's the substitutes of the traditional dead end clamps such as bolted type, compression type and wedge type.
Model | Guy Wire (mm) | Length (mm) | Guy Wire (mm2) | Weight (kg) | Color code |
NL-25/G | 6.6 | 635 | 25 | 0.2 | Yellow |
NL-35/G | 7.65~7.95 | 711 | 35 | 0.3 | Black |
NL-50/G | 8.95~9.30 | 901 | 50 | 0.5 | Orange |
NL-70/G | 10.82~11.10 | 1016 | 70 | 0.8 | Green |
NL-95/G | 12.5 | 1333 | 95 | 1.7 | Orange |
NL-100/G | 13.0 | 1333 | 100 | 1.7 | Yellow |
NL-120/G | 14.0 | 1460 | 120 | 2.2 | Yellow |

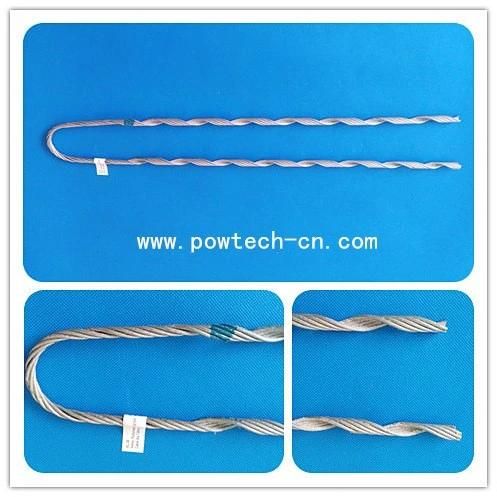

Detailed Images:

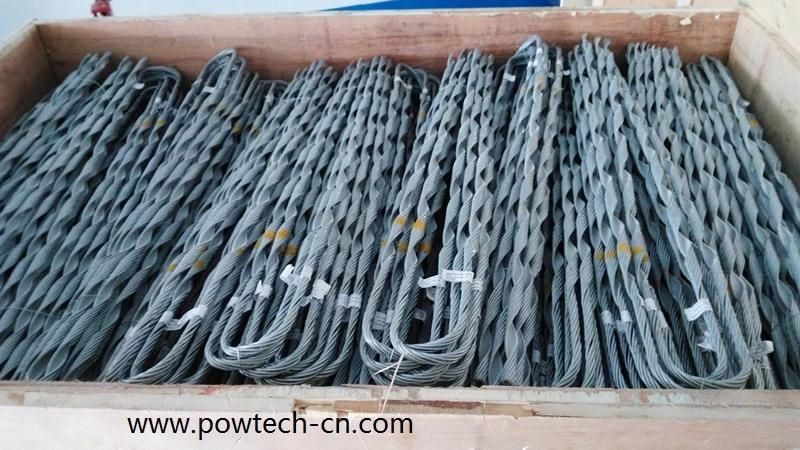

Technical data sheet:Package&Shipment:

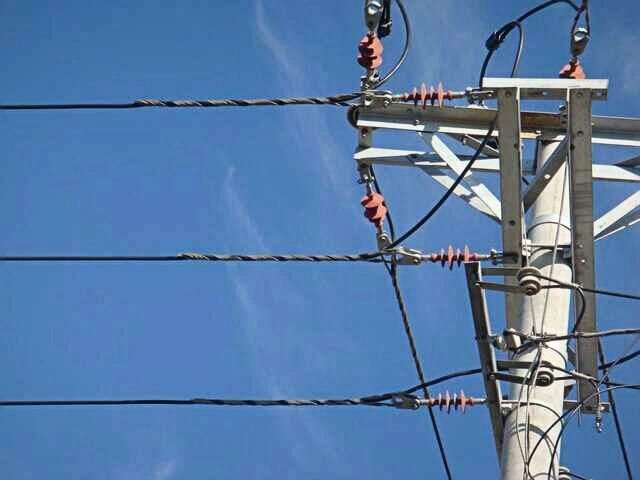

Abroad Installation:
