Split Bolt Connector Brass Copper Cable Connector Earthing Clamp
HEFEI ELECMAN ELECTRICAL CO., LTD.- Color：Copper Color
- Surface Treatment：Tin Coated , Copper Coated,Copper Bonded Brass
Base Info
- Model NO.：SBC016
- Usage：Electric Wire,Cable Connecting and Joining
- Material：Copper
- Type：Cable Clamp
- Function：Electric Wire,Cable Connecting and Joining
- Characters：Easy Installation ,Good Conductivity,Cost Low
- Transport Package：Standard Exporting Cartons
- Specification：16-240mm2
- Trademark：ELECMAN
- Origin：China
- HS Code：7419999900
- Production Capacity：50000 Pieces Per Day
Description
Basic Info.
Model NO. SBC016 Usage Electric Wire/Cable Connecting and Joining Material Copper Type Cable Clamp Function Electric Wire/Cable Connecting and Joining Characters Easy Installation ,Good Conductivity,Cost Low Transport Package Standard Exporting Cartons Specification 16-240mm2 Trademark ELECMAN Origin China HS Code 7419999900 Production Capacity 50000 Pieces Per DayProduct Description

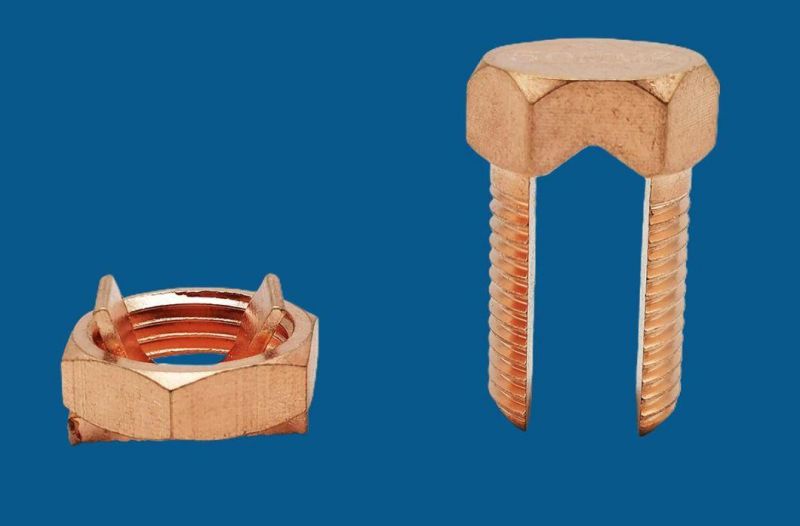

ELECMAN ® Split Bolt Connector Brass Copper Cable Connector Earthing Clamp
PRODUCT: Split Bolt Connector
MATERIAL: Brass, Copper
TYPE: Earthing Clamp
Surface Finish: Tin coated , Copper coated,copper bonded brass

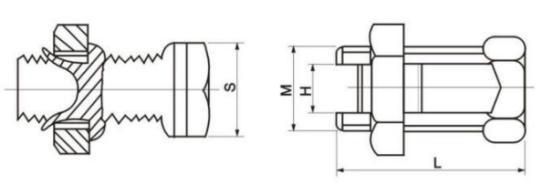

| Applicable conductor (mm²) | L | M | H | S | Weight(kg) |
| 16 | 20 | M17*2.5 | 6 | 18 | 0.023 |
| 25 | 27 | M19*2.5 | 7 | 20 | 0.034 |
| 35 | 35 | M21*2.5 | 7 | 22 | 0.057 |
| 50-70 | 42 | M23*2.5 | 11 | 24 | 0.108 |
| 90-120 | 45 | M25*2.5 | 14 | 26 | 0.142 |
| 150-180 | 60 | M29*2.5 | 17 | 30 | 0.250 |
| 200-240 | 62-72 | M31*2.5 | 20 | 32 | 0.301 |
Customer size is welcomed!
APPLICATION:
• High-strength split bolt connector and hexagon heads are used to connect multiple stranded copper wires of different sizes, and effective connection can be achieved without special tools.Widely used lightning protection grounding protection system.
PRODUCTS FEATURES:
• Easy installation ,Strong corrosion resistance,good conductivity,cost low
• Has a bronze look, not easy to change surface color.
PACKING INFORMATION
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time.
For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton.ELECMAN can follow any packing requirements of customers.
PRODUCT SELLING POINT:
• Provide quality guarantee
• Provide customers with special customized services
• Fast delivery
• Free sample
• Cost-effective
• Strictly control product quality before shipment
