Highest Temperature Phst Heat Shrink Tube
ZHEJIANG MAXWEL INSULATION TECHNOLOGY CO., LTD.- Certification：RoHS, ISO
- Color：Black, Red, Yellow, Green, etc
- IP Rating：IP68
- Usage：Electric Wire
- Material：Polyolefin
- Type：Heat Shrinkable
Base Info
- Model NO.：PHST
- Application：Electrical Winding Insulation
- Chemistry：Hybrid Insulation
- Initial Shrinking Temperature：70c
- Maximum Voltage：<10kv
- Classification：Hybrid Insulation Materials
- Brand：Maxwel
- Temperature：-50-125c
- Shrinking Ratio：2:1
- Fully Shrinking Temperature：125c
- Transport Package：Exporting Carton
- Specification：ROHS
- Trademark：Maxwel
- Origin：Wenzhou
- HS Code：39173100
- Production Capacity：10, 000 Meters,Day
Description
SizeDimensio nbefore shrinking (mm) Dimensio nafter shrinking (mm) Standard packaging (m/disc) Application
(mm) Internal diameter Wall thickness Maxinternal diameter Wall thickness 2.0 2.4 ± 0.3 0.25 ± 0.05 0.9 ± 0.1 0.35 ± 0.05 200 1.1~1.8 3.0 3.4 ± 0.4 0.25 ± 0.05 1.4 ± 0.1 0.40 ± 0.05 200 1.6~2.7 4.0 4.5 ± 0.4 0.25 ± 0.05 1.8 ± 0.1 0.45 ± 0.05 200 2.1~3.6 5.0 5.4 ± 0.4 0.25 ± 0.05 23 ± 0.1 0.55 ± 0.15 100 2.6~4.5 6.0 6.4 ± 0.4 0.28 ± 0.15 2.8 ± 0.2 0.55 ± 0.15 100 3.1~5.4 7.0 7.4 ± 0.4 0.28 ± 0.15 3.3 ± 0.2 0.55 ± 0.15 100 3.7~6.3 8.0 8.4 ± 0.5 0.28 ± 0.15 3.8 ± 0.2 0.55 ± 0.15 100 4.2~7.2 10 10.5 ± 0.5 0.30 ± 0.15 4.8 ± 0.2 0.55 ± 0.15 100 5.2~9.0 12 12.5 ± 0.5 0.30 ± 0.15 5.7 ± 0.3 0.60 ± 0.15 100 6.2~11 14 14.5 ± 0.5 0.35 ± 0.15 6.7 ± 0.3 0.60 ± 0.15 100 7.3~13 16 16.5 ± 0.6 0.38 ± 0.15 7.7 ± 0.3 0.65 ± 0.15 100 8.3~15 20 21.0 ± 0.8 0.40 ± 0.15 9.7 ± 0.3 0.75 ± 0.15 100 10.4~19 25 25.8 ± 0.8 0.45 ± 0.15 11.0 ± 1.0 0.75 ± 0.15 0 12.8~24 30 30.8 ± 0.8 0.45 ± 0.15 14.0 ± 1.0 0.75 ± 0.15 50 16~29 35 35.8 ± 0.8 0.50 ± 0.20 16.0 ± 1.0 0.85 ± 0.20 50 18~34 40 42.0 ± 1.0 0.50 ± 0.20 19.0 ± 1.0 0.85 ± 0.20 50 21~39 50 51.0 ± 1.0 0.50 ± 0.20 24.0 ± 1.0 0.85 ± 0.20 50 26~49 60 61.0 ± 1.0 0.65 ± 0.20 29.0 ± 1.0 0.85 ± 0.20 25 35~55 70 71.0 ± 1.0 0.65 ± 0.20 33.0 ± 2.0 1.00 ± 0.20 25 40~65 80 81.0 ± 1.0 0.65 ± 0.20 37.0 ± 2.0 1.00 ± 0.20 25 45~75 90 91.0 ± 1.0 0.65 ± 0.20 43.0 ± 2.0 1.00 ± 0.20 25 50~88 100 102.0 ± 2.0 0.65 ± 0.20 48.0 ± 2.0 1.00 ± 0.20 25 55~95 120 122.0 ± 2.0 0.80 ± 0.20 58.0 ± 2.0 1.50 ± 0.20 15 65~115 150 152.0 ± 2.0 0.80 ± 0.20 73.0 ± 2.0 1.50 ± 0.20 15 80~145 180 182.0 ± 2.0 0.80 ± 0.20 88.0 ± 2.0 1.50 ± 0.20 15 95~175 wire coat and insulation make the joint of terminal block and wire insulated devide the colors water-proof protection and insualtion of insistors and electrical capacitors
Features:

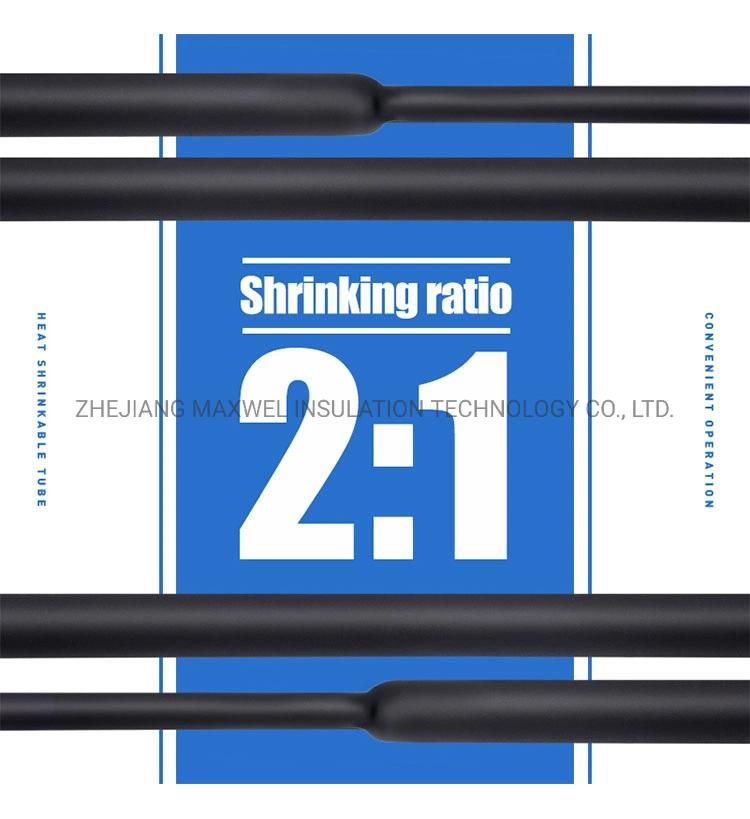

Shrink ratio: 2: 1
Operating temperature: -55 to 125 degree
Minimum fully recovery temperature: 110degree
Longitudinal shrinkage≤ 5%
Soft, Flammability, Environmental protection
The specification range from 1.0mm to 180mm, special specification is accepted.

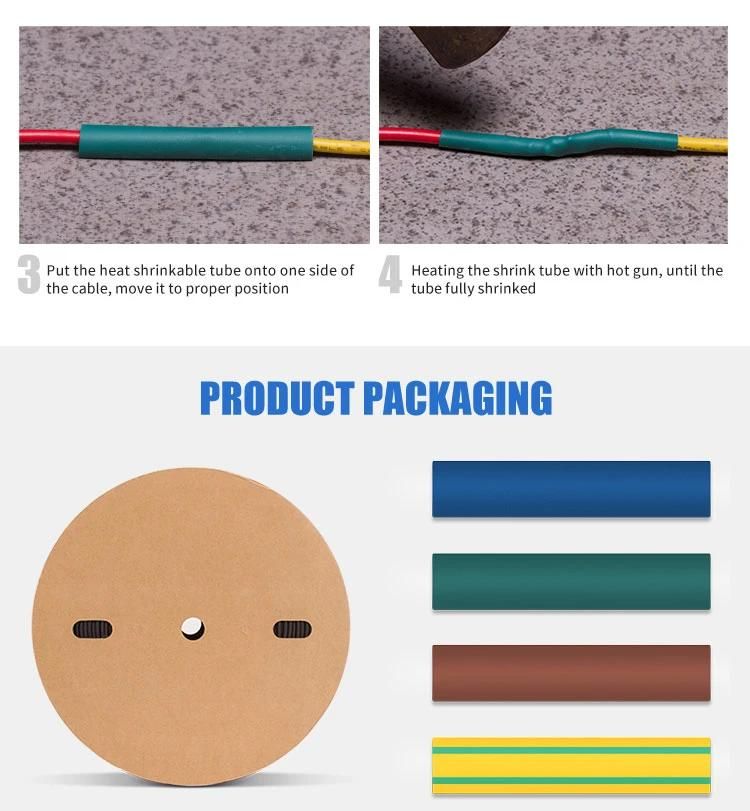

Easy to operate, shrinking with the drying oven and the hot air gun
Standard color: Yellow and green Interaction

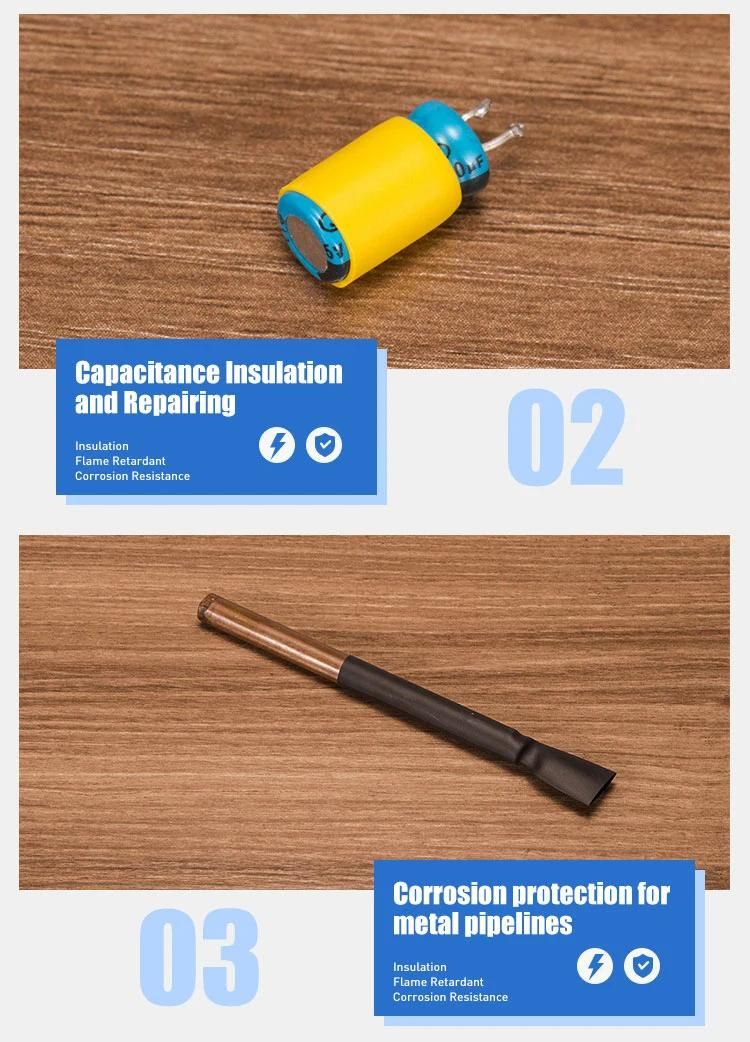

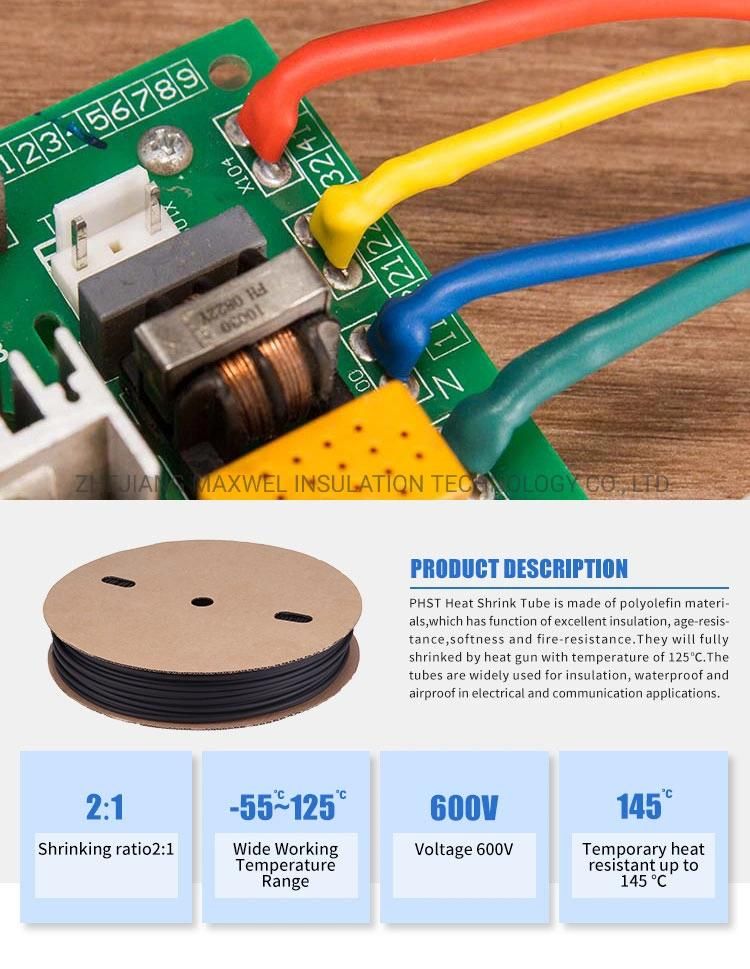

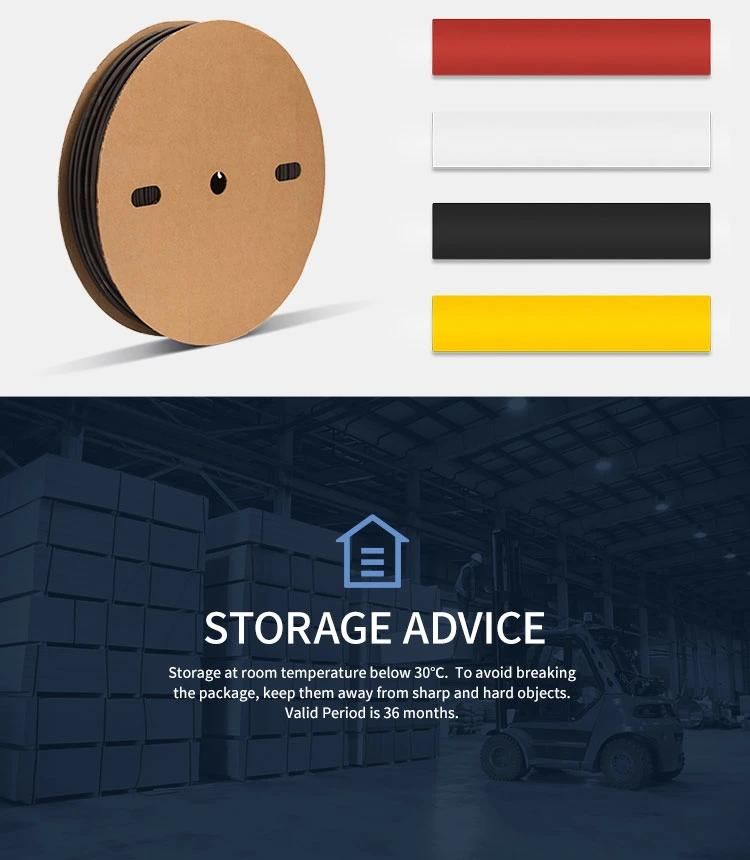

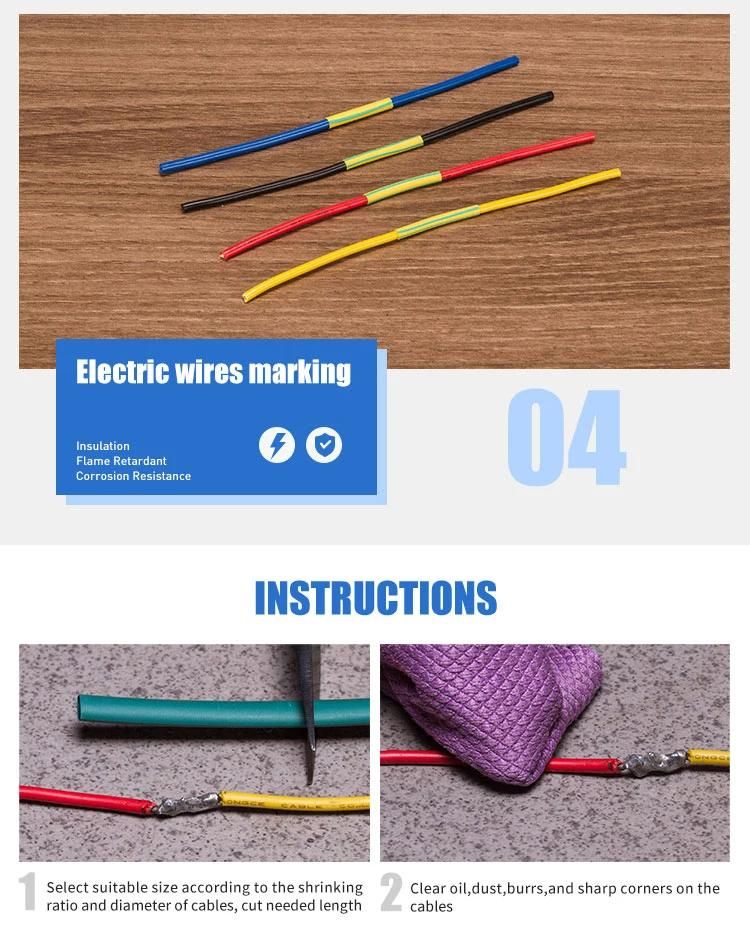

Pictures of heat shrink tubing :
