• Model NO.：JT,JC,JZ,JQ
• Attribute (E. G.: Size)：Value (E. G.: 12 Inches)
• Product Name：Spring Driven Cable Reel Drum
• Cale Length：on Customer′s Requirement
• Application：Industrial Equipment
• Male End Type：NEMA
• Jta Weight：73~268 Kg
• Brand：Yydls
• Accessories：Cable Connector
• Jtd Weight：140~210 Kg
• Warranty：18 Month
• Transport Package：Iron Case
• Specification：ISO9001: 2008
• Trademark：CiShen
• Origin：China
• HS Code：8425399000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. JT/JC/JZ/JQ Attribute (E. G.: Size) Value (E. G.: 12 Inches) Product Name Spring Driven Cable Reel Drum Cale Length on Customer′s Requirement Application Industrial Equipment Male End Type NEMA Jta Weight 73~268 Kg Brand Yydls Accessories Cable Connector Jtd Weight 140~210 Kg Warranty 18 Month Transport Package Iron Case Specification ISO9001: 2008 Trademark CiShen Origin China HS Code 8425399000 Production Capacity 100 PCS/Month

Product Description

Application: For rewinding and winding lighter cables of mobile equipment like cranes, which is moved short distance.

Features and Benefits:
- driven by swirling springs
- energy-saving
- safe and simple for operation
- low abrasion of cables
- easy for maintenance and repair
- reversible mechanism

General Specification
Cable
Recoiling Length(m): 20/40/50/100
Current (A): 35~85 (specified)
Cable Reel
Weight (kg): 88~236
Price Range (FOB): USD 400~2000

Erection Options:
A-Vertical Coiling
B-Reverse Wheel Vertical Coiling
C-Ground Horizontal Coiling (fixed reel)
D-Ground Horizontal Coiling (moving reel)
E-Suspending Horizontal Coiling
F-Suspending Coiling
Note: Cable reels in different configurations and varieties are available.

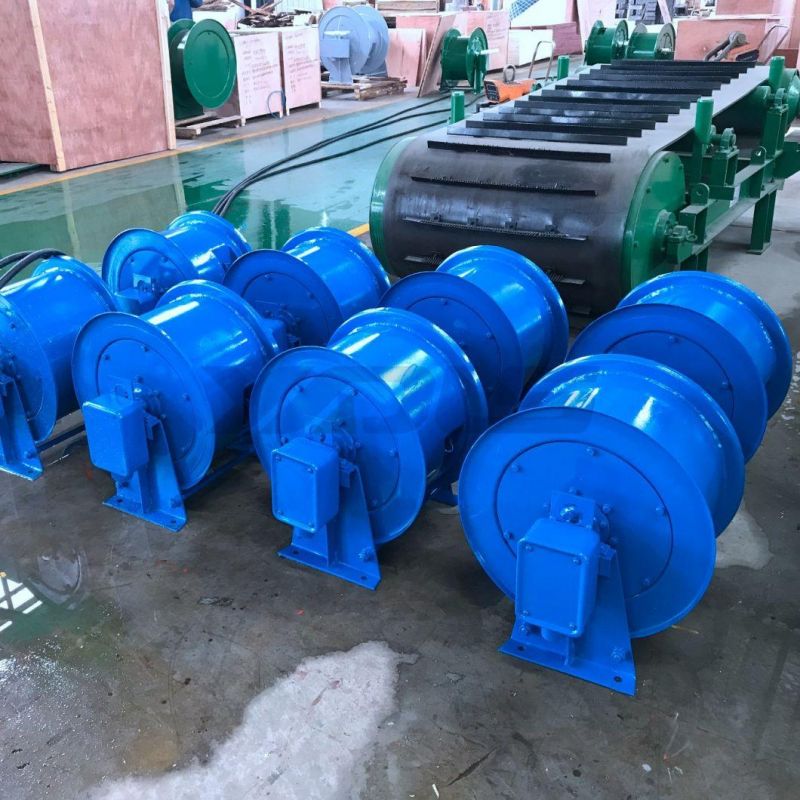

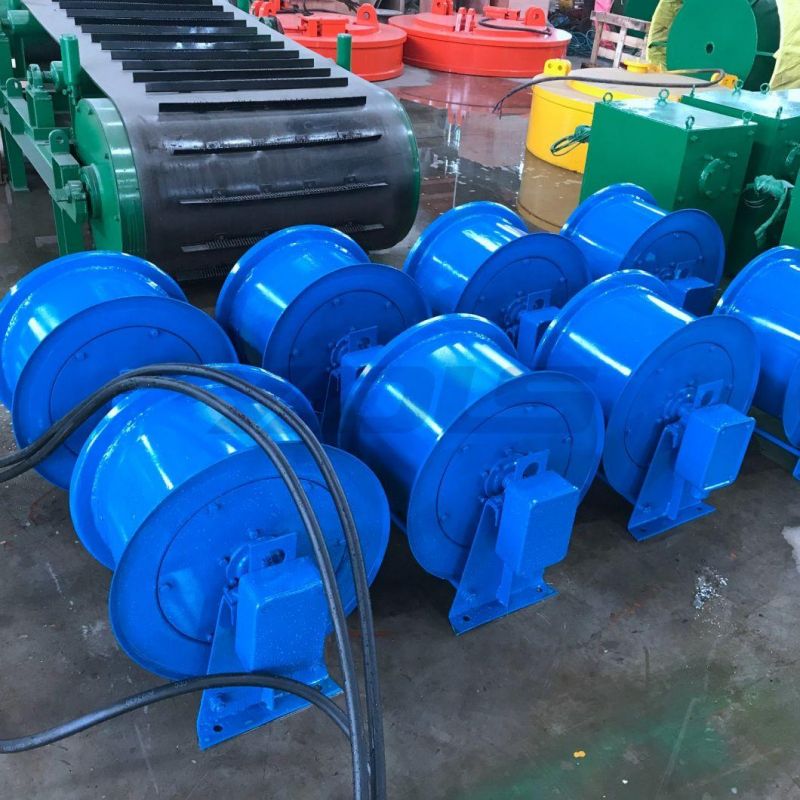

Spring Driven Retractable Cable Reel

Spring Type Cable Reel Drum is one of our main products. Driven by swirling springs, cable reel exploits stored energy of the springs to automatically wind the cable. This cable reel is featured of easy power supply, safe operation and medium cable stress.

Structure characteristics of cable reel:
1.    Driven by swirling springs, it works reliably and doesn't consume electricity.
2.    Cable reel uses the structure of collecting-current slip ring-carbon brush to convey electricity.
3.    Reversible mechanism is equipped to prevent springs from breaking due to the reverse of the reel.




Our company

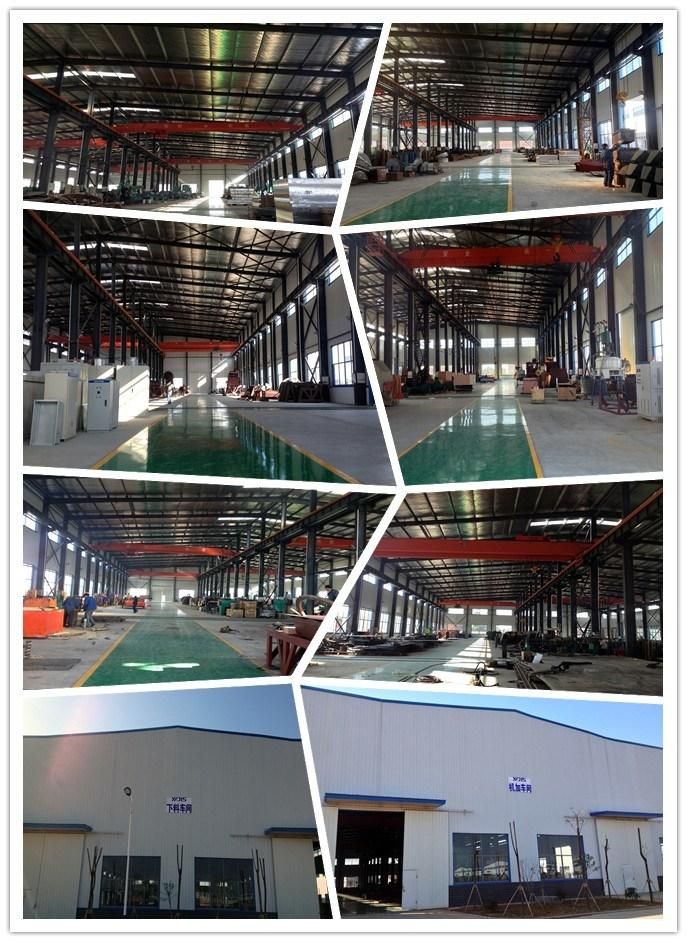

Our factory
