RoHS Flexible Cable Protection Sleeve for Tubes and Hose
Xiamen QX Trade Co., Ltd.- Certification：CSA, UL, RoHS, ISO
- Color：Black
- IP Rating：VW-1
- Material：Nylon Multifilament
- Type：Cable Sleeve
- Customized：Customized
Base Info
- Model NO.：NSSN
- Condition：New
- Flame Retardant：Normal
- Operating Range：-60c-+160c
- Transport Package：500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification：3mm to 100mm Flat Width
- Trademark：QX
- Origin：Fujian, China
- HS Code：4602900000
- Production Capacity：3000000 M,Month
Description
Basic Info.
Model NO. NSSN Condition New Flame Retardant Normal Operating Range -60c-+160c Transport Package 500m, 350m, 300m, 250m, 200m, 150m, 100m/Rol. Specification 3mm to 100mm Flat Width Trademark QX Origin Fujian, China HS Code 4602900000 Production Capacity 3000000 M/MonthProduct Description

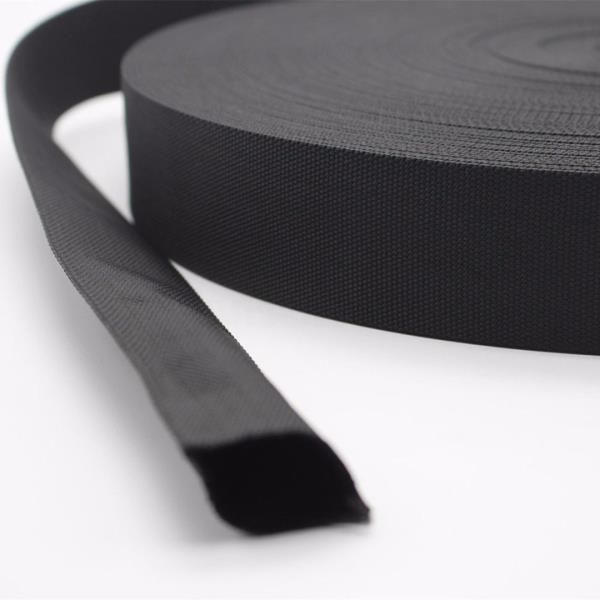

RoHS Flexible Cable Protection Sleeve for tubes and hoseNylon heat shrinkable weaving sleeving is woven from nylon mutifilament.
It offers excellent flexibility, high abrasion and flame resistance. The tight woven construction can provide
chemical fluid resistance and noise reduction.
Specification:
a. High abrasion resistance
b. Flame retardant
c. Thermal insulation performance
d. Flexibility
e. Environmental protection
f. Protect the wiring harness
Application:

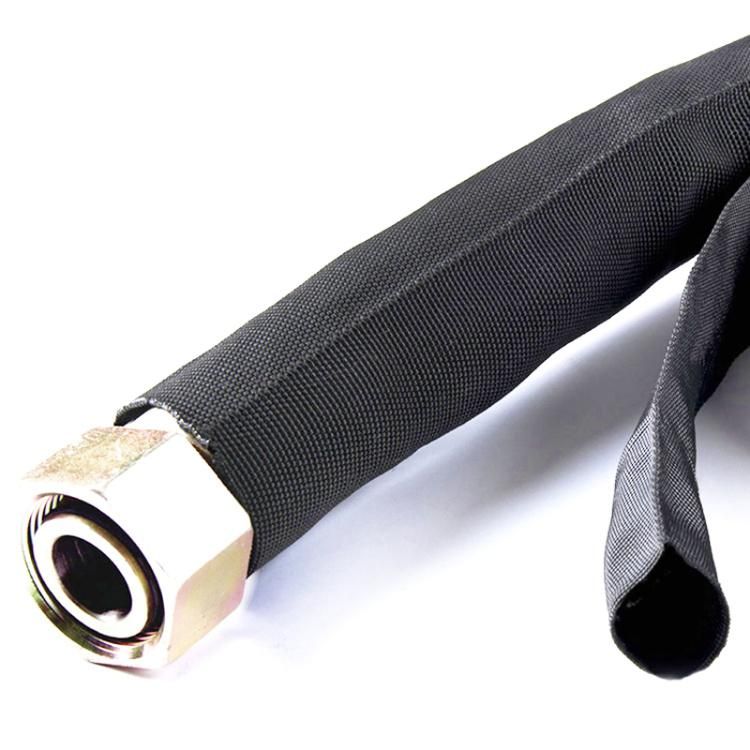

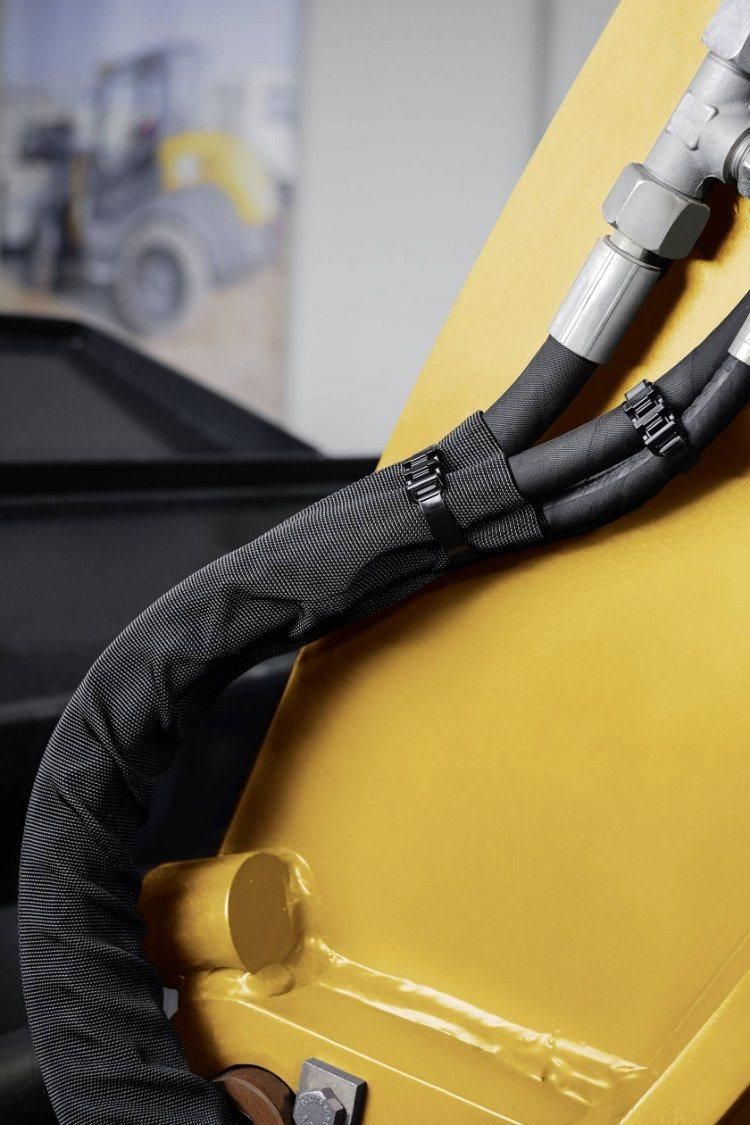

It is wideyl used to protect hydraulic pipes, plastic pipes, rubber hose, wire harnesses away from damage
and abrasion. This kind of sleeve can also be used in industry and construction fields where outstanding
hose protections are needed.
Advantages:
a. Offering durable abrasion resistance in a wide range of industrial applications.
b. Offering kink resistance with good strength and flexibility.
c. Totally expanded the sleeving can reach at least one point five times than the initial dimension.

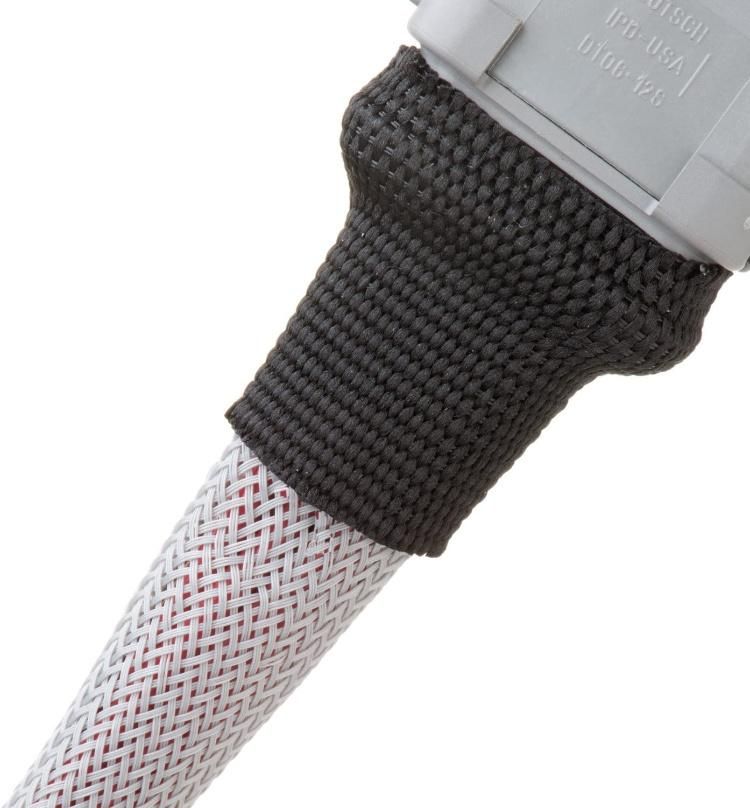

d. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with
bulky or large connectors.
Datasheet
| Part No. | Flat width (W) | Round I.D | Wall Thinckness (T) | Packing(L) |
| NSSN-020 | 20 | 12 | 1.1 | 100m/spool |
| NSSN-025 | 25 | 15 | 1.1 | 100m/spool |
| NSSN-030 | 30 | 19 | 1.1 | 100m/spool |
| NSSN-045 | 45 | 28 | 1.1 | 50m/spool |
| NSSN-050 | 50 | 31 | 1.1 | 50m/spool |
| NSSN-100 | 100 | 60 | 1.1 | 50m/spool |
| NSSN-115 | 115 | 70 | 1.1 | 50m/spool |
| NSSN-176 | 176 | 110 | 1.1 | 50m/spool |
| NSSN-200 | 200 | 125 | 1.1 | 50m/spool |
