• Model NO.：WB-100*300
• Customized：Customized
• Condition：New
• Flame Retardant：High
• Profile：Cabofil
• Transport Package：Seaworthy Packing
• Specification：CE, ROHS, SGS
• Trademark：Powtech
• Origin：China
• HS Code：73089000
• Production Capacity：40hq - 25 Days

Basic Info.

Model NO. WB-100*300 Customized Customized Condition New Flame Retardant High Profile Cabofil Transport Package Seaworthy Packing Specification CE, ROHS, SGS Trademark Powtech Origin China HS Code 73089000 Production Capacity 40hq - 25 Days

Product Description

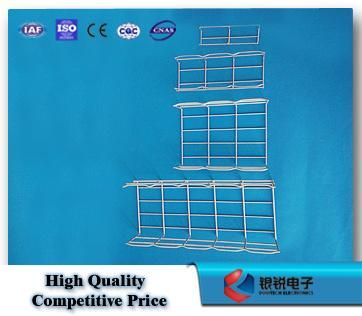

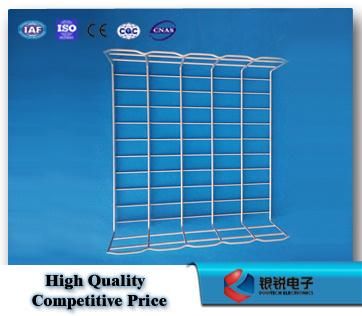

Cable Accessories 304 Stainless Steel Cabofil Cable Tray



Specifications
1. Focus on producing cablofil wiremesh cable tray
2. ISO9001: 2008/UL/CUL/CE, passed Rohs test
3. Easy for installastion
Material:
Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L

Surface Finish:
Electro zinc plated Cablofil Wiremesh Cable Tray for indoor use to BS EN 12329-2000, 12microns thick.
Powder coated Cablofil Wiremesh Cable Tray - for indoor use to JG/T3045-1998, between 60 and 100 microns thick
Hot Dipped Galvanized Cablofil Wiremesh Cable Tray for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing Cablofil Wiremesh Cable Tray for stainless steel use

Dimensions: (Available for customized)
Cablofil Wiremesh Cable Tray dimensions are all internal size.
Cablofil Wiremesh Cable Trays are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.
Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm...
Widths: 50~1000mm.
Length: Maxiun 3000mm
Wire Diameter: 3.5~ 6.0mm

Installation Notice:
Bends, Risers, T Junctions, Crosses and Reducers can be made from Cablofil Wiremesh Cable Tray straight sections flexibly in project site.
Cablofil Wiremesh Cable Tray should be supported at a normally span 1.5m by trapeze, wall, floor or channel mounting methods (Maxium span is 2.5m).
Cablofil Wiremesh Cable Tray can be safely applied in places where the temperature ranges between -40° C and +150° C without any change to their characteristics.
Powtech China is located in the port city Qingdao. Powtech Cablofil Wiremesh Cable Tray is exported to more than 100 countries. Powtech is a leading manufacturer of Cablofil Wiremesh Cable Tray in China.

Our company has ISO9001: 2008 and GMC. Cablofil Wire mesh Cable Tray has UL, CUL, CE certificates and passed Rohs, loading capacity, welding strength etc. Tests.
The welding strength of our Cablofil Wiremesh Cable Tray is higher than industry standards, and the capacity of our Cablofil Wiremesh Cable Tray is 27% greater than traditional cable trays and cable ladders.

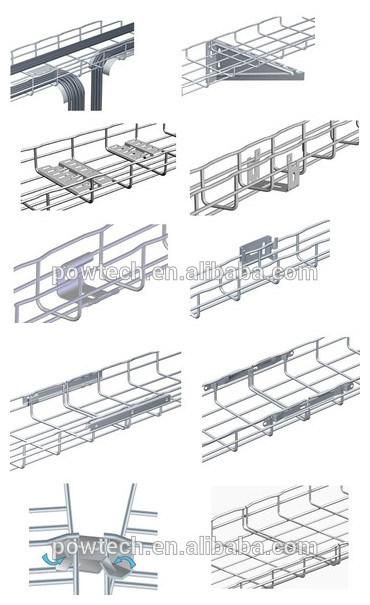

Installation Guide:

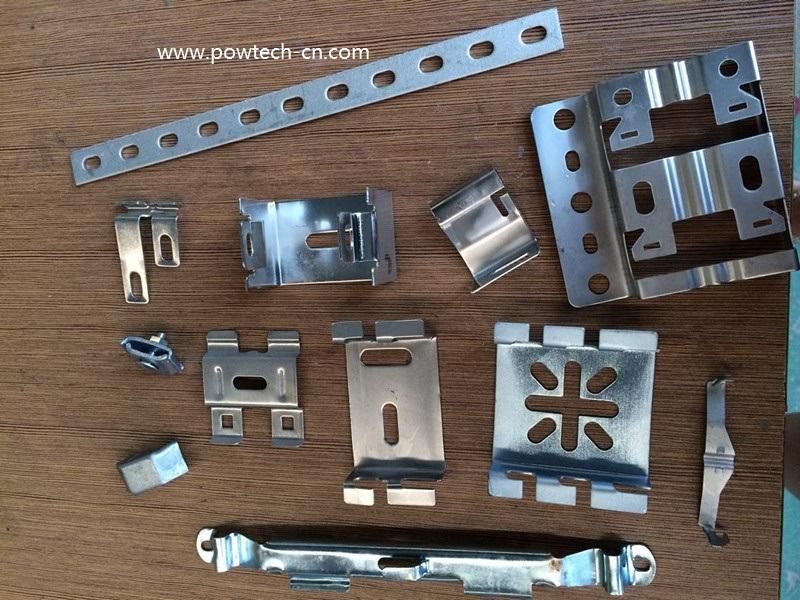

Related Products:

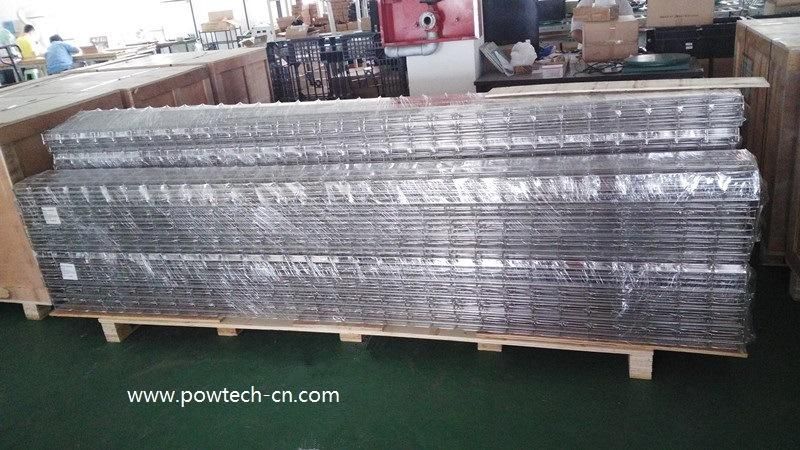

Package&Shipment:
