• Model NO.：Comflex
• Section Shape：Round
• Technique：Hot Rolled
• Size：ID3-102 ;Od5-110mm
• Thickness：0.2-1.5mm
• Pressure：-10 to 100bar
• Temperature：-40 to 120degree
• Fittings：Optional
• Product Name：PVC Coating Flexible Metal Conduit
• Transport Package：Standard Cartons
• Specification：350mm*350mm*260mm
• Trademark：HLT
• Origin：China
• HS Code：7304111000
• Production Capacity：1000000meters,Year

Product NamePVC coating flexible metal conduitMaterialStainless Steel 304, 321, 316 and 316L, Galvanized SteelDN3-102mmThickness0.2-1.5mmMax. work pressure100 barWorking temperature-40 to 120 degreeConnect typeFlange/Thread/Quick coupling






Technical Data:

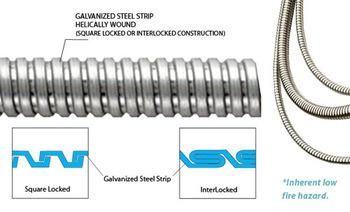

I.Square lock/Single Lock ConduitMaterial:stainless steel grade 201/304/316L/321galvanized steelSizeID3-102mmID3-102mmOD5-110mmThickness0.2-1.5mmPressure-10 to 100 barTemperature-40 to 120 degreeCertificationCE/ROHSFittingsoptionalCoatingPVD coating optionalCustomizeacceptableFeaturesIt has excellent performance of waterproof, insulation and tensile property. The counter-lock structure provide a powerful tensile resistance, hard to break and deformHigh flexibilityUsage fieldPower plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.Payment TermTT / West Union / PYAPALDelivery TimeIn 15 daysDeliveryShipment / DHL / TNT/ FEDEX
II.Inter lock/Double Lock ConduitMaterial:stainless steel grade 201/304/316L/321galvanized steelSizeID3-102mmID3-102mmOD5-110mmThickness0.2-1.5mmPressure-10 to 100 barTemperature-40 to 120 degreeCertificationCE/ROHSFittingsoptionalCoatingPVD coating optionalCustomizeacceptableFeaturesIt has excellent performance of waterproof, insulation and tensile property. The counter-lock structure provide a powerful tensile resistance, hard to break and deformHigh flexibilityUsage fieldPower plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.Payment TermTT / West Union / PaypalDelivery TimeIn 15 daysDeliveryShipment / DHL / TNT/ FEDEX

Testing process:

A.Hardness tester
B.High and low voltage tester
C.Tension and compression tester
D.Salt spray tester
E. High and low temperature testing equipment
F.Swing tester
G.Resistance tester
H.Impact tester

Package:

Comflex Industrial Co.,Ltd

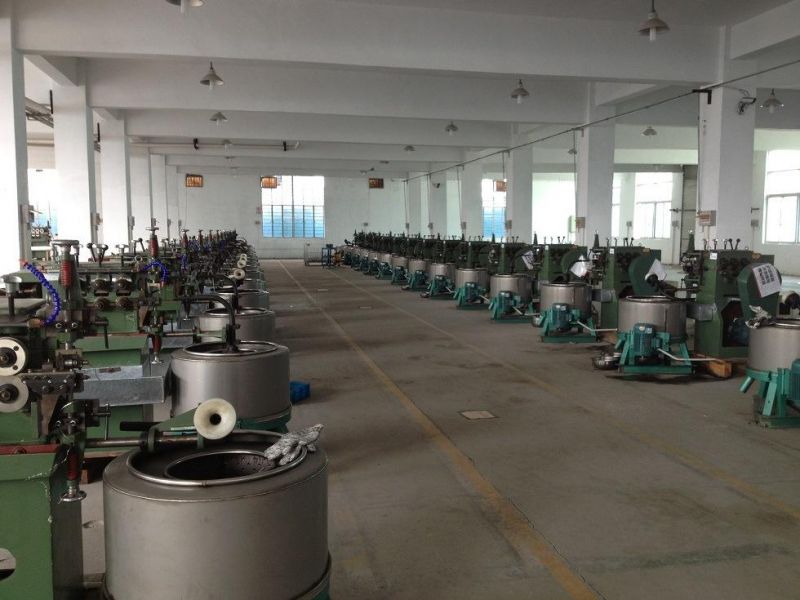

We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines,such as elastomer hose forming machine,hydraulic forming machine,wire braiding machine,rewinding machine,bellow forming machine, etc..We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.

FAQ
Q: What material conduit do you have?
A: stainless less steel (grade201, 3045, 316L, 321), galvanized steel, aluminum.

Q: What size conduit and what type do you have?
A:We have both square lock and interlock conduit
B: square lock hconduit: ID 3mm-102mm
C:interlock conduit: ID3 till ID450

Q: Can you customize for us?
A: yes we accept customize, including conduit size, diameter, and pvc coating material & thickness.

Q: why should I chose you?
A: we produce both conduit and conduit making machine with many years' experience and professional technology.

Q: what is your conduit features?
A: performance of waterproof, powerful tensile resistance, high flexibility.

We need to know the following information before we send quotation for the conduit:
1.Conduit material
2.Conduit type, for instance, square lock or interlock
3.Size/diameter
4.Quantity
