• Model NO.：BE-PETM003
• Application：Insulators, Electrical Winding Insulation
• Chemistry：Organic Insulation
• Thermal Rating：220 220
• Operating Range：-50ºC ±150ºC
• Melt Point：240ºC±10ºC
• Flammability：VW-1
• Standard Colour：Black and Grey
• Certificate：UL, CSA, RoHS, Pfos, Reach, Halogen Free
• Cutting Tool：Hot Knife
• Transport Package：1000m500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
• Specification：3mm-76mm Flat Width
• Trademark：EKO
• Origin：Fujian, China
• HS Code：4602900000
• Production Capacity：3000000 M,Month

Part No Size Expanded Range(mm) Packing (L)  Flat width(mm) Min(I) Max.(O) M/spool BS-PETM003 3 1 6 1000 BS-PETM006 6 3 9 500 BS-PETM008 8 516 350 BS-PETM010 10 719 350 BS-PETM012 12 824 300 BS-PETM016 151027 250 BS-PET0M19 201430 200 BS-PETM025 251835 200 BS-PETM032 302050 150 BS-PETM038 403060 100 BS-PETM045 453575 100 BS-PETM050 504080 100 BS-PETM064 6445105 100 BS-PETM076 7664120 100
Product feacture
1. Light weight & Flexible & Insulation & UV Resistant & Decoration  & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.

Application

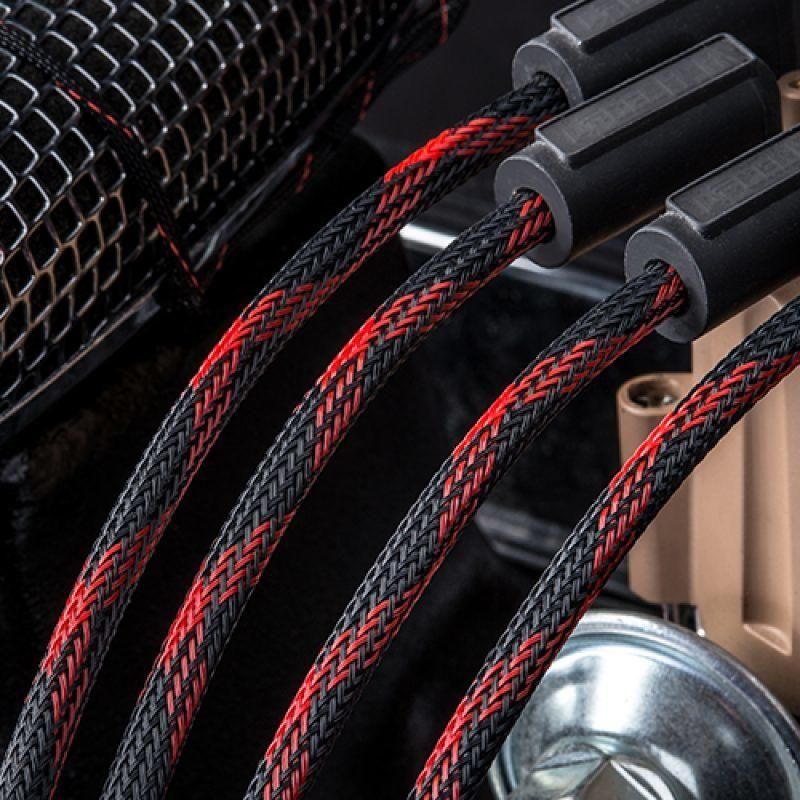

It is typically used for high grade A/V cables,HDMI cables an power supply.
