Cable Parts

Product Category

Home > Product > Cable Gland

M32 Multi Hole 3 Holes Nylon Cable Glands with RoHS

Yueqing Jixiang Connector Co., Ltd.

Certification：CCC, RoHS, ISO, CE
Surface Treatment：,
Color：Black(PAL9005) Grey(PAL7035)
IP Rating：IP68
Material：Nylon
Type：Straight Head

Base Info

Model NO.：M,PG,NPT Type
Holes：2-8
Seal：EPDM Rubber
Working Temperature - Ststic：-40~100, Short Time to 120
Working Temperature - Dynamic：-20~80, Short Time to 100
Factory Report：ISO90001
Transport Package：Standard Export Carton
Specification：Customization
Trademark：JXLJQ
Origin：China Mainland
HS Code：8547901000
Production Capacity：3000000PCS,Month

Description

M32 Multi Hole 3 Holes Nylon Cable Glands with RoHS

Mulit-Holes Nylon Cable GlandsAG item

Flat

(mm)

2 holes

(mm)

3 holes

(mm)

4 holes

(mm)

5 hols

(mm)

6 holes

(mm)

7 holes

(mm)

8 holes

(mm)

M12x1.5/3-1.22.6-1.22.3-1////M16x1.5/4-1.62.6-1.22.3-12.5-12-1//M18x1.56x103.5-24-1.63-1.22.6-1.52.2-1 / /M20x1.55x11.55.3-1.55-2 4.2-1.7 3-1.23-1.2 3-1.23-1.2M22x1.56x146-2.53.5-1.5 4.5-2 // / /M25x1.56x148.7-48-45-2 3.5-1.53.5-1.53.5-1.5 3.5-1.5M27x1.57x188.7-4.55-2 7-3.53.5-1.53.5-1.53.5-1.5 3.5-1.5M32x1.58x225-1010-59-4.5 8-4 7-3.5 6-3/PG7/3-1.22.6-1.22.3-1 ////PG9/4-1.62.6-1.2 2.3-12.5-1 2-1 //PG116x103.5-24-1.6 3-1.2 2.6-1.5 2.2-1 //PG13.55x11.55.3-1.53.5-1.5 4.2-1.74.2-1.7 ///PG166x146-2.53.5-1.5 4.5-2 ////PG217x188.7-4.55-2 7-3.5 3.5-1.5 3.5-1.5 3.5-1.5/

More size information, kindly contact us directly.. We provide customization service !

Product Details Image

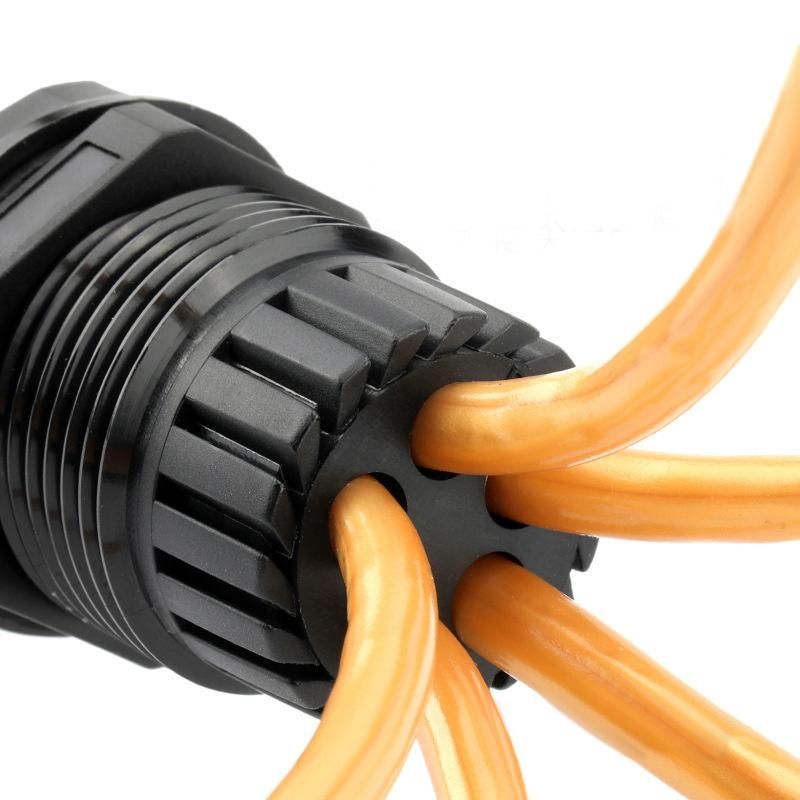

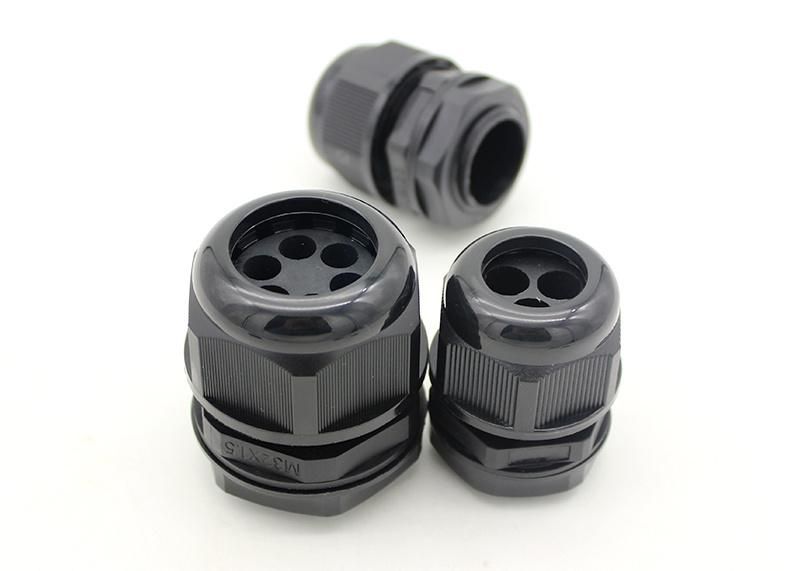

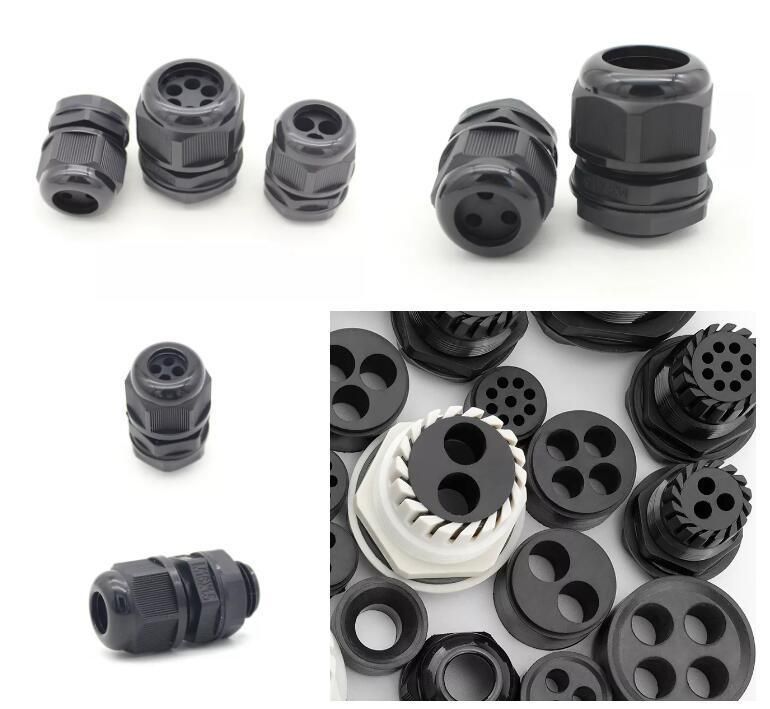

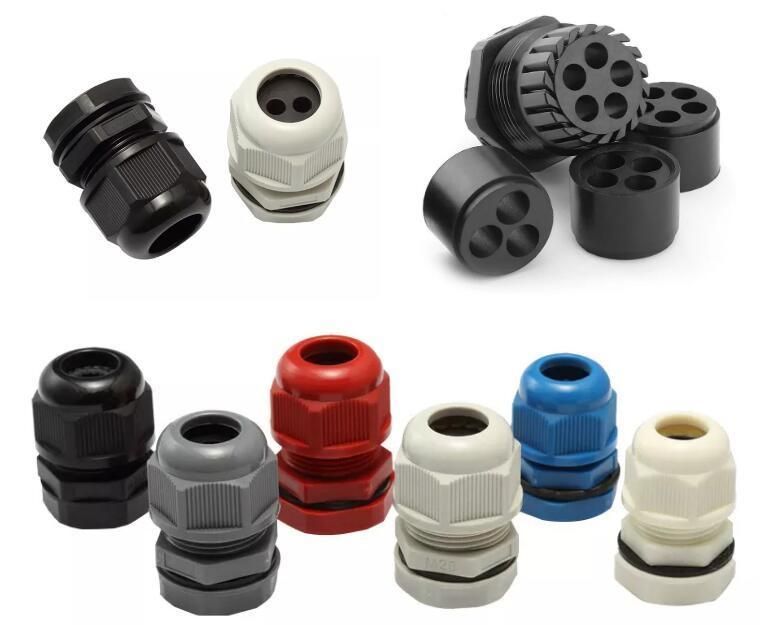

M32 Multi Hole 3 Holes Nylon Cable Glands with RoHS

M32 Multi Hole 3 Holes Nylon Cable Glands with RoHS

M32 Multi Hole 3 Holes Nylon Cable Glands with RoHS

M32 Multi Hole 3 Holes Nylon Cable Glands with RoHS

Application

Product Packaging & Shipping
Cable gland packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.

Certifications

Company Profile
M32 Multi Hole 3 Holes Nylon Cable Glands with RoHS

M32 Multi Hole 3 Holes Nylon Cable Glands with RoHS

M32 Multi Hole 3 Holes Nylon Cable Glands with RoHS

Customise Now

You contact us as blow to start online customization for the design you want!
