Hydraulic Hose Heavy Duty Protective Sleeves
Xiamen QX Trade Co., Ltd.- Certification:UL, RoHS, ISO
- Color:Black
- Usage:Optical Cable, Electric Wire, HDMI Cable
- Material:Nylon Multifialament
- Type:Cable Sleeve
- Flame Retardant:High
Base Info
- Model NO.:NH-NWS-50
- Customized:Non-Customized
- Condition:New
- Classification:Hose Protection Sleeve
- Transport Package:100m,Roll, 50m,Roll or Customrize
- Specification:Round I. D: 12-125
- Trademark:EKO
- Origin:Fujian, China
- HS Code:630790009
- Production Capacity:300, 0000m,Month
Description
Basic Info.
Model NO. NH-NWS-50 Customized Non-Customized Condition New Classification Hose Protection Sleeve Transport Package 100m/Roll, 50m/Roll or Customrize Specification Round I. D: 12-125 Trademark EKO Origin Fujian, China HS Code 630790009 Production Capacity 300, 0000m/MonthProduct Description

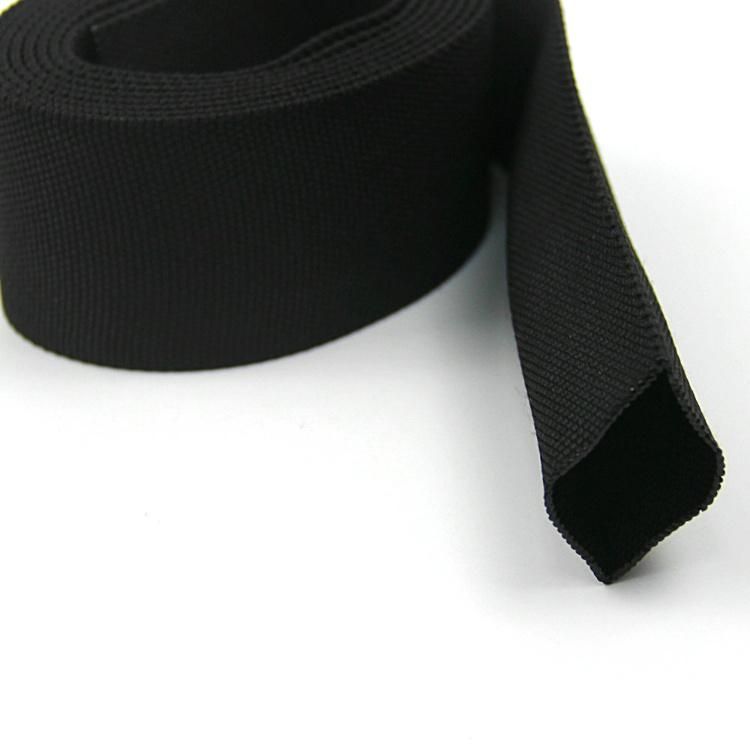

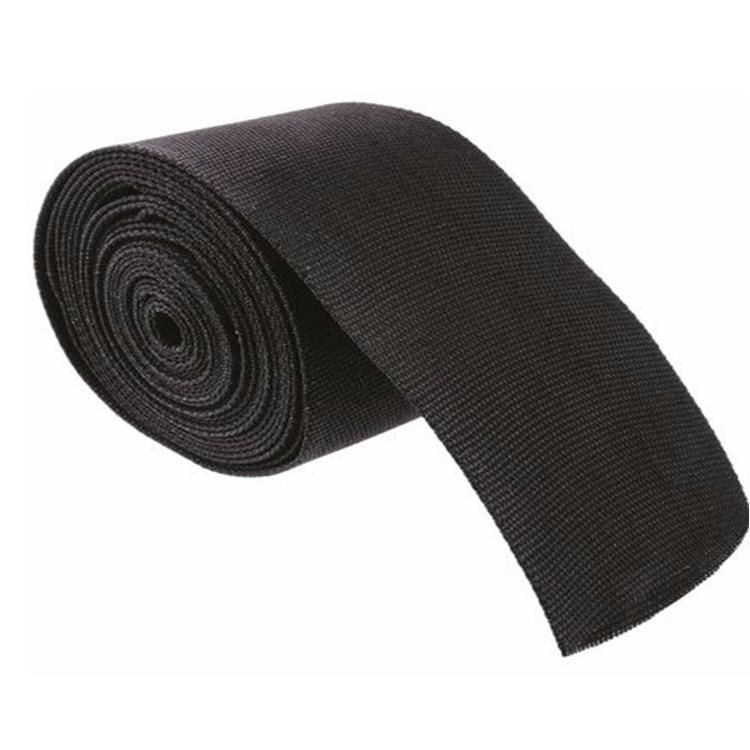

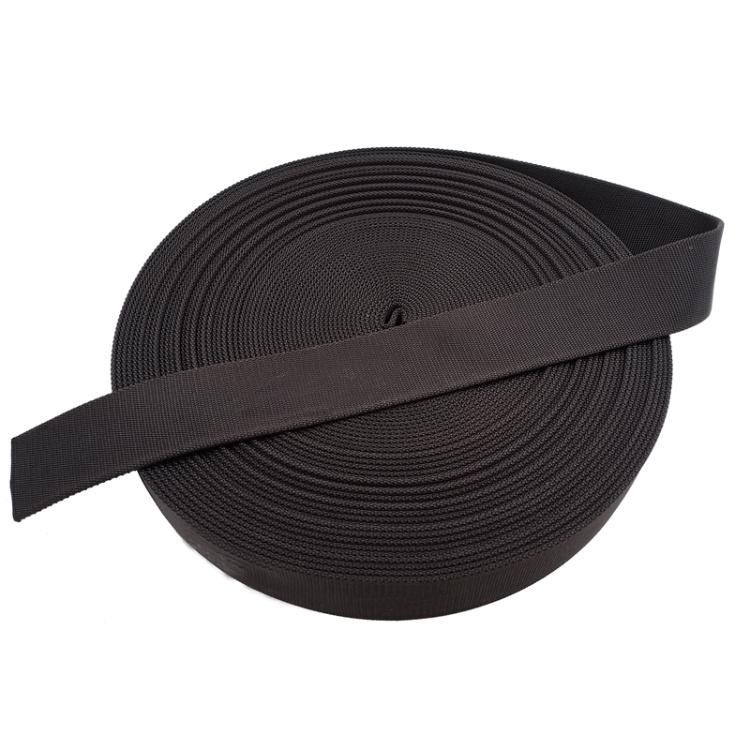

Hydraulic Hose Heavy Duty Protective Sleeves

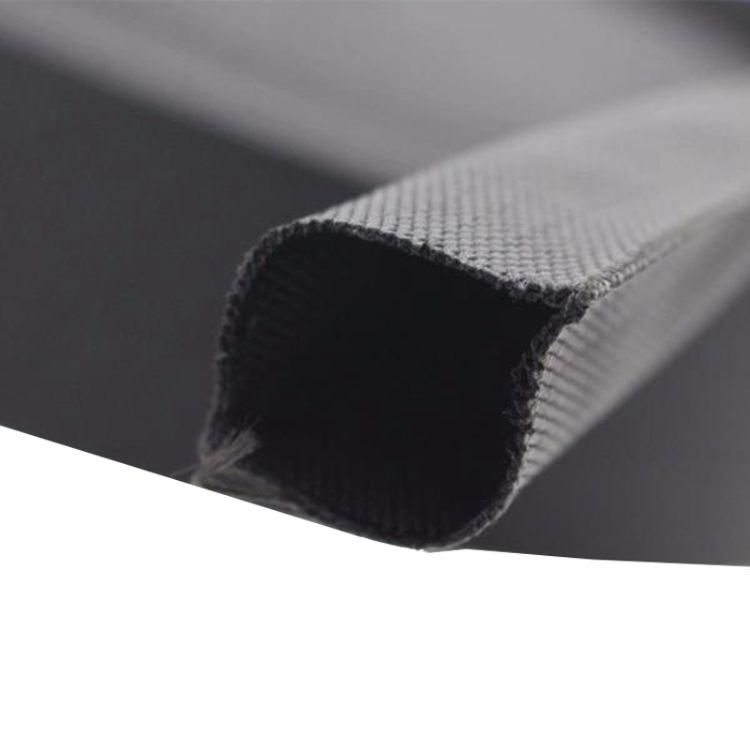

Nylon Woven sleeving made from 45 mil wall thick nylon fiber. It can prevents extreme weather conditions,
engine chemicals, andgasoline from penetrating and causing your ropes, hoses, and cables from suffering
physical damage.
Feactures and Benefts:
1.Withstands temperatures reaching 160 °C
2.45 mil wall thickness prevents damage from UV,
Gaoline,Engine Chemicals ands alt
3.Prevents high pressure hose ruptures from penetrating
through braided sleeving
4.Perfect soluton for indoor and outdoor industrial machinery
5.Easily installs during the production or repair
6.Cut effortlessly with scissors
7.Withstands up to 3,500 abrasion cycles
8.Full coverage
This product does not expand, make sure to match application diameter accordingly.
Application:

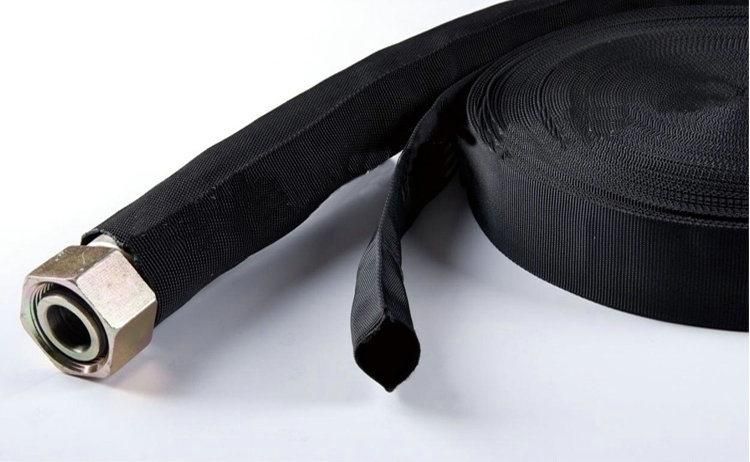

Nylon hose protection sleeve widely use to protect hydraulic pipes,plastic pipes,rubber hose,wire harnesses
away from damage and abrasion.
This kind of sleeve can also be used in industry and construction fields where outstanding hose protections are
needed.
Technical Data:
Material | Nylon Multifilament |
Continue Working Temperature | -60C~160C |
Melting Point | 260+(-)10C |
Flammability | VW-1 |
Standard Color | Black |
Cutting Tool | Scissor or Hot Knife |
Certificated | ROHS,UL,Halogen Free |
Data Sheet:
Item No | Flat Width (W)(mm) | Round I.D (mm) | Wall Thicknedd(T) (mm) | Packing(L) |
NH-NWS020 | 20 | 12 | 1.0 | 100m/Spool |
NH-NWS025 | 25 | 15 | 1.0 | 100m/spool |
NH-NWS030 | 30 | 18 | 1.0 | 100m/Spool |
NH-NWS035 | 35 | 21 | 1.0 | 50m/Spool |
NH-NWS040 | 40 | 24 | 1.0 | 50m/Spool |
NH-NWS050 | 50 | 31 | 1.0 | 50m/Spool |
NH-NWS060 | 60 | 37 | 1.0 | 50m/Spool |
NH-NWS070 | 70 | 44 | 1.0 | 50m/Spool |
NH-NWS080 | 80 | 50 | 1.0 | 50m/Spool |
NH-NWS090 | 90 | 56 | 1.0 | 50m/spool |
NH-NWS100 | 100 | 62 | 1.0 | 50m/Spool |
NH-NWS115 | 115 | 72 | 1.0 | 50m/Spool |
NH-NWS145 | 145 | 90 | 1.0 | 50m/Spool |
NH-NWS176 | 176 | 110 | 1.0 | 50m/spool |
NH-NWS200 | 200 | 125 | 1.0 | 50m/Spool |

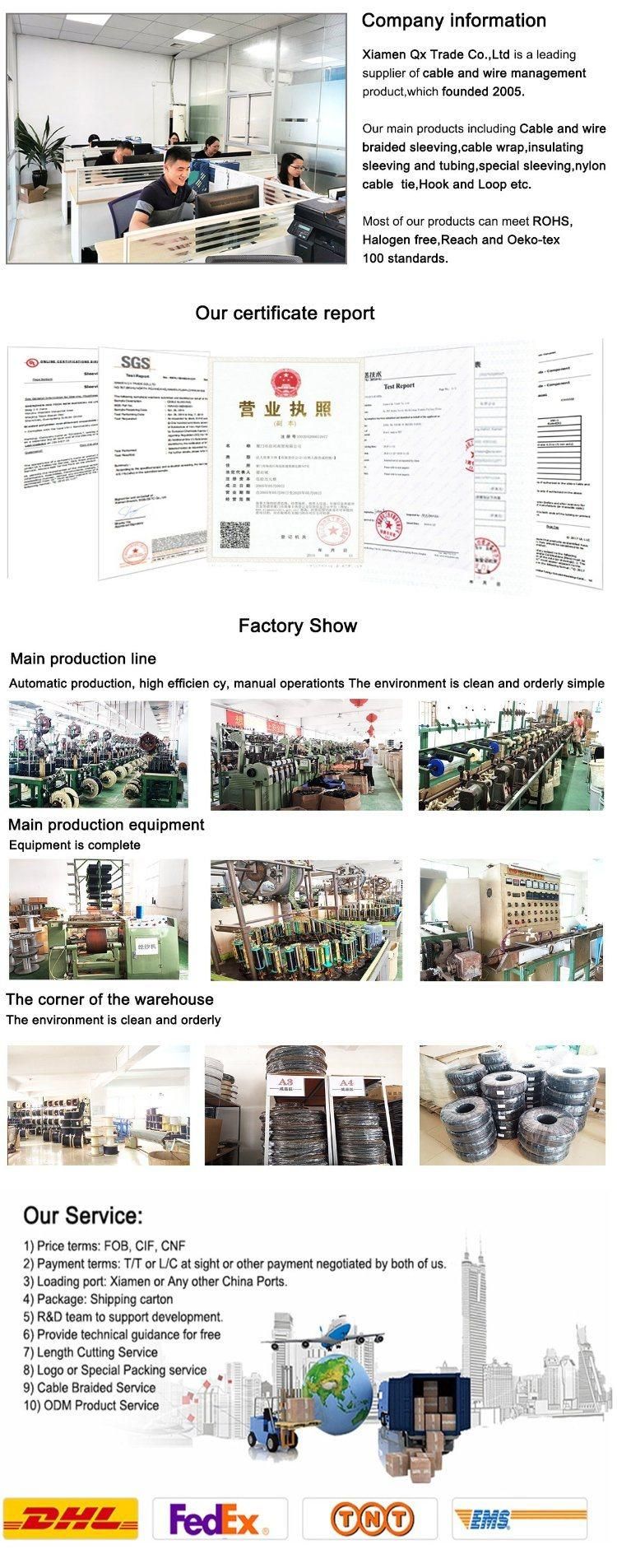

company profile

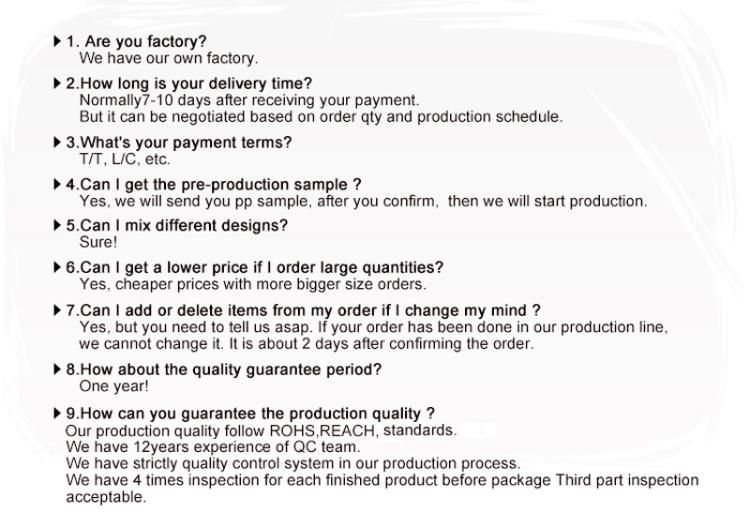

FAQ
