PVC Cable Glands Pg 19 with Plastic Locknut

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Surface Treatment：No
  • Color：Black , Light Grey
  • IP Rating：IP68
  • Material：Nylon
  • Type：Straight Head

Base Info

  • Model NO.：PG19
  • Cable Gland：Waterproof
  • Main Material：PA
  • Claw：Nylon
  • Seal & O Ring：NBR
  • Thread Length：Standard & Customization
  • Other Size：Customization
  • Black Color：Ral: 9017
  • Light Grey：Ral: 7035
  • Transport Package：Standard Export Carton
  • Specification：M , PG , NPT , G
  • Trademark：JXLJQ
  • Origin：China Mainland
  • HS Code：854720000
  • Production Capacity：50000PCS,Month

Description

Product Name:Waterproof cable glandMain material:PlasticStandard size:M8-M120; PG7-PG63; NPT1/4-NPT2; G1/4 -G2Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is availablePVC Cable Glands Pg 19 with Plastic LocknutPVC Cable Glands Pg 19 with Plastic LocknutSizesCable Range(mm)Thread O.D.(mm)Thread Length(mm)Spanner Size(mm)M8x12-58512M10x13-6.510714M12x1.53-6.512816M16x1.54-816819M18x1.55-1018822M20x1.56-12201024M22x1.510-14221027M24x1.512-16241027M25x1.513-18251033M27x1.513-19271033M30x1.516-21301135.........................M72x242-50722877PG73-6.512.5816PG94-815.2819PG115-1018.6822PG13.56-1220.41024PG1610-1422.51027PG1912-16241027.........................PG6342-50712877NPT1/44-813.68.519NPT3/85-10171022NPT1/26-1221.21024NPT3/413-1826.51533NPT118-2533.21541.........................NPT1 1/417-2541.91552G1/44-813.18.519G3/85-1016.61022G1/26-1220.91027/24G3/413-1826.41236/33G118-2533.21546/41.........................G229-38601860/62

More size information, kindly contact us directly.. We provide customization service !

PVC Cable Glands Pg 19 with Plastic LocknutLocknut packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.
PVC Cable Glands Pg 19 with Plastic LocknutPVC Cable Glands Pg 19 with Plastic Locknut                                                                                    Company ShowPVC Cable Glands Pg 19 with Plastic LocknutPVC Cable Glands Pg 19 with Plastic Locknut

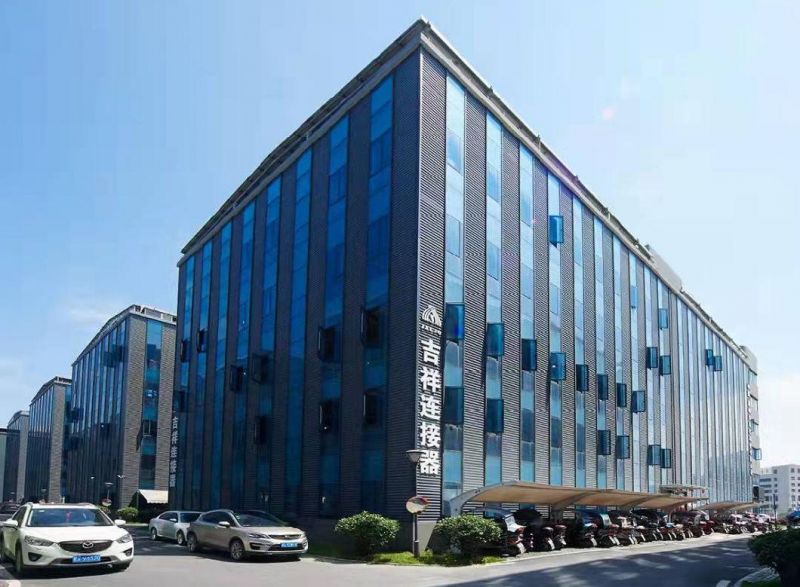

YUEQING JIXIANG CONNECTOR CO.,LTD

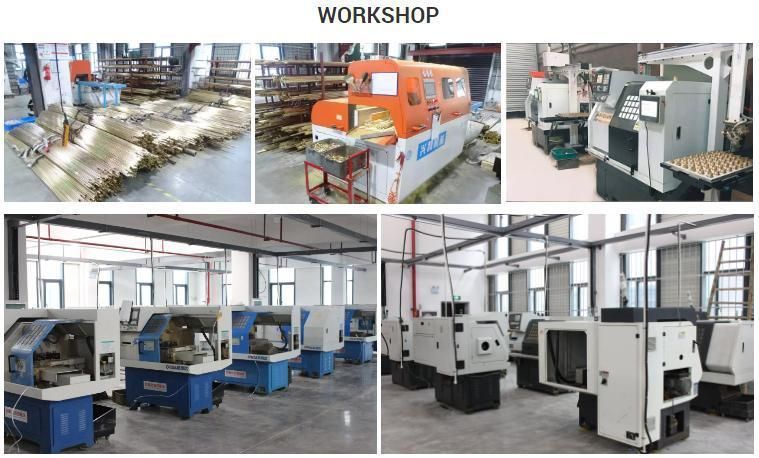

We're a professional manufacturer of various kinds of cable glands and cable connectors. JIXIANG combines research,
production and sales. The main products are metal cable glands and nylon cable glands.
We firmly believe that market is the key to the development of enterprises.
Thus, we always take the high quality as our essential principle.Our products are approved by CE, IP68, ROHS, EX ATEX, TUV and ISO9000.
It was widely used in electronic, machinery, instrument, electrical appliances and other industrial fields.PVC Cable Glands Pg 19 with Plastic LocknutPVC Cable Glands Pg 19 with Plastic Locknut
