• Size：1,2"-4"
• Usage：Wire and Cable Protection
• Type：Round Conduit for Protect Cable or Wire
• Customized：Customized
• Secondary or Not：Non-Secondary
• Technique：Cold Rolled
• Grade：Q195,Q195-Q345
• Outer Diameter：21.34mm-114.3mm
• Length：3.05m
• Section Shape：Round
• Transport Package：Carton, Wooden Box
• Specification：CE, ISO
• Trademark：lonwow
• Origin：China
• Production Capacity：3000 Ton,Tons Per Month

Product description

    Rigid Metal Conduit is manufactured from high-strength steel coil and produced according to the standard of ANSI C80.1(UL6). The interior surface of our conduit is free from a defect with a smooth welded seam. It is hot-dipped galvanized inside and outside so that metal-to-metal contact and galvanic protection against corrosion are provided, and the surface of the conduit is coated with a clear lacquer coating to inhibit white rust and increase corrosion resistance. And the conduit is threaded on both ends, with a coupling applied to one end and a by size color-coded thread protector to the other as per table. The interior surface provides a smooth continuous raceway for easy wire pulling.  Our conduits ductility characteristics provide for easy bending, cutting, and threading in the field.

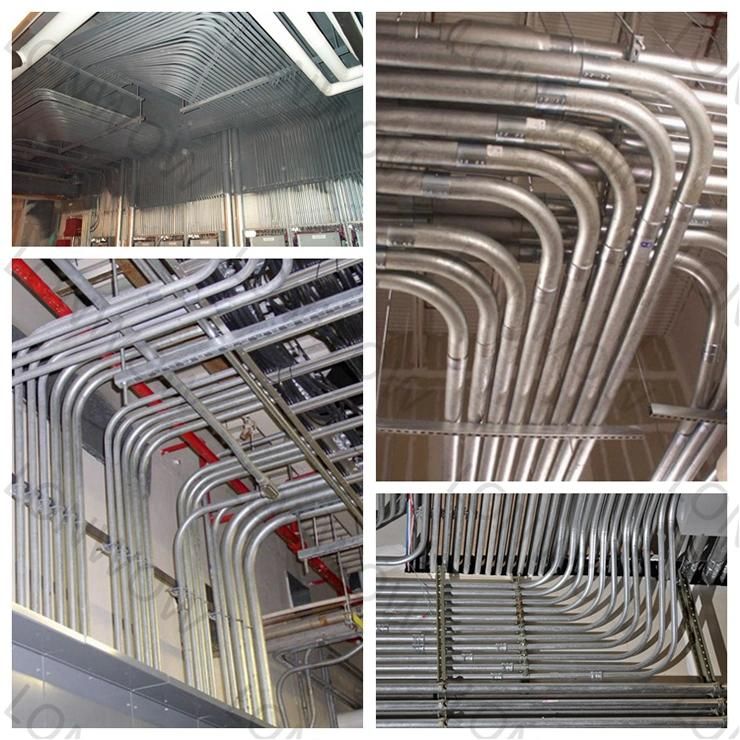

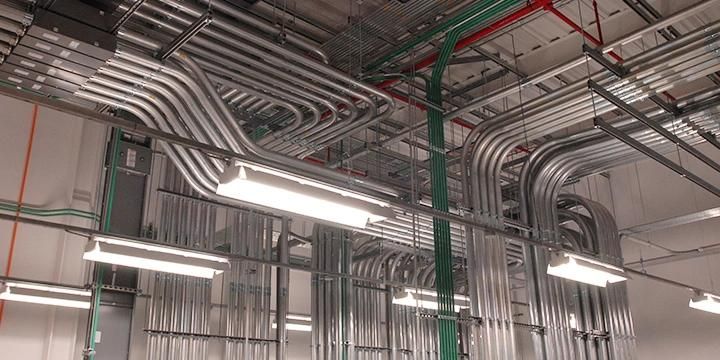

Application

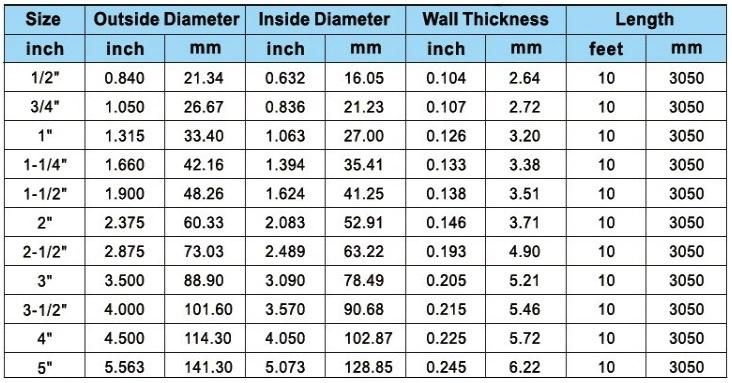

Common size

Product: RMC-Rigid Metal Conduit

Standard: UL6 & ANSI C80.1

Application: used for protection and routing of electrical wiring.



Cost relative to Rigid Galvanized Steel(RGS) conduit, 3/4 inch (21metric) sizeTypeLaborWeightMaterial costRMC1.01.01.0Aluminum0.890.340.99IMC0.890.760.84EMT0.620.420.35PVC0.550.20.43 Exact ratios of installation labor weight and material cost vary depending on the site of conduit, but the value for 3/4 inch (21metric) trade size are representative.

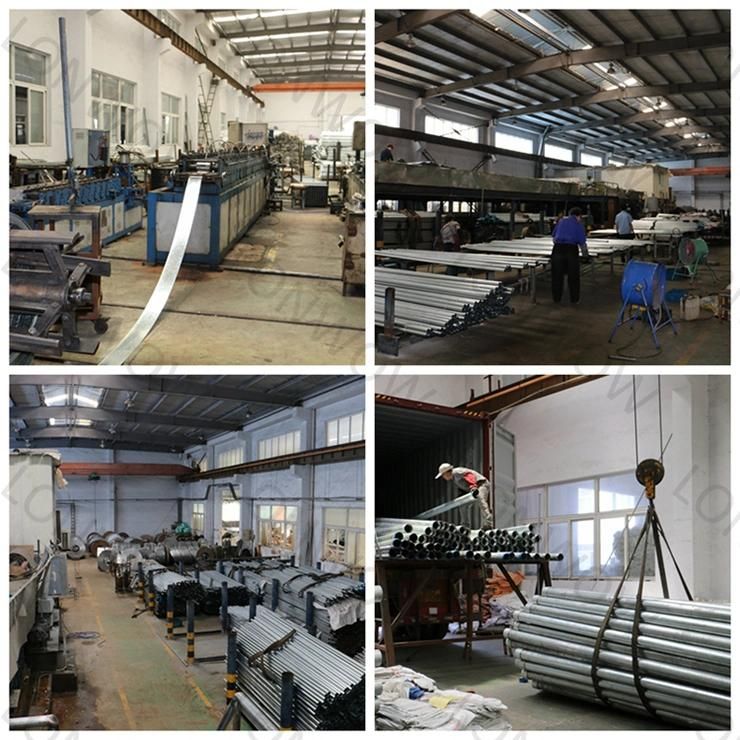

Packaging & ShippingProduction



you can press "send" or "chat now"  on the bottom to chat with me :-)

Company InformationWhy Choose Us?

Lonrace Industry Co., Ltd. is a leading company that specialized in dealing with various kinds of steels in Jiangsu Province, China. Our company brings in advanced testing & production equipment to guarantee quality precisely. With our policy of "Quality first, Customers prior and Price reasonable" we have established a good relationship with customers all over the world.
Warmly welcome all customers and friends at home and abroad to contact and cooperate with us.

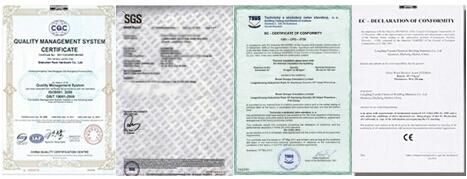

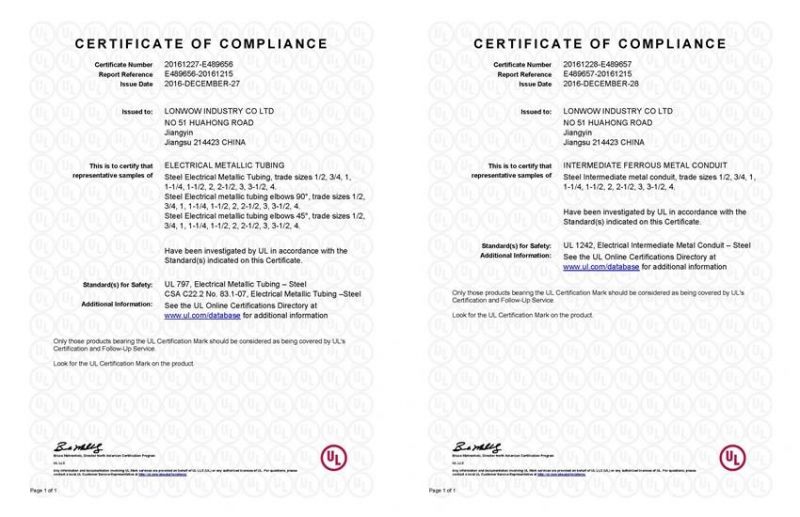

CertificationsCertification



Our ServicesOur Services

1. 24 hours prompt reply by email

2. Other thickness & size also available on request

3. 30 years warranty (special material rate, installation in relative humidity 97% below & 050 ºC

    in the room, no deformation)

4. Free samples for your reference

5. Flexible terms of payment (T/T, L/C, DP and so on are all accepted)

6. Excellent after-sale service
