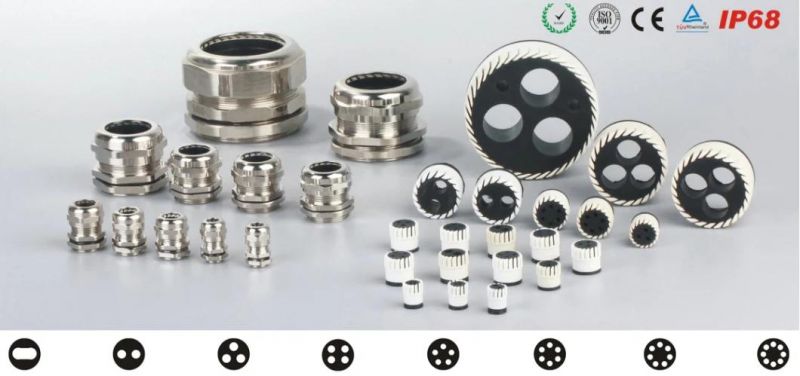

Electronic Multicore Metal Cable Gland Pg16

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Surface Treatment：Electroplating
  • Color：Metallic Color
  • IP Rating：IP68
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：M , PG , NPT , G

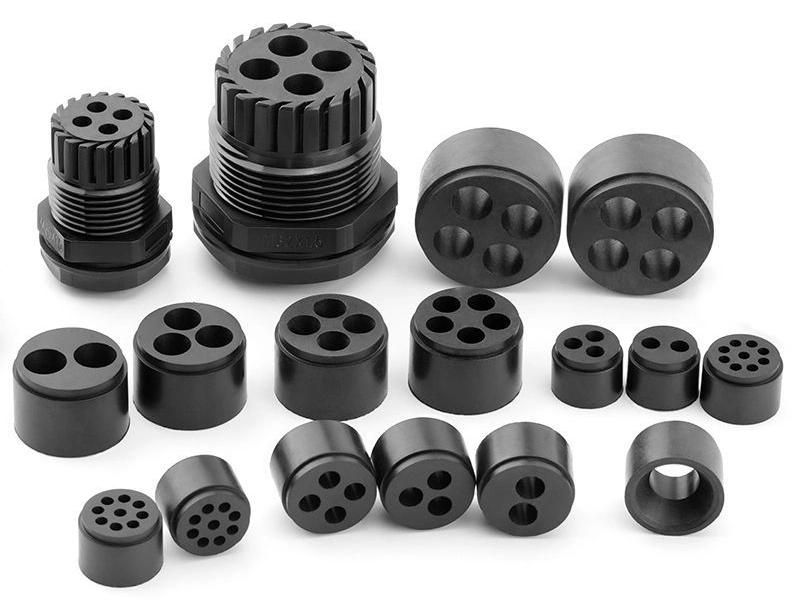

  • Cable Gland：Multi-Holes Gland
  • Main Material：Nickel-Plated Brass
  • Claw：Nylon (PA66)
  • Seal & O Ring：Rubber
  • Thread Length：Standard & Customization
  • Other Size：Customization
  • Transport Package：Standard Export Carton
  • Trademark：JXLJQ
  • Origin：China Mainland
  • HS Code：8547901000
  • Production Capacity：50000PCS,Month

Description

Product Name:Multi-holes cable glandMain material:Nickel-plated brassStandard size:M12-M32; PG7-PG29Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is availableElectronic Multicore Metal Cable Gland Pg16Electronic Multicore Metal Cable Gland Pg16AG item

Flat

(mm)

2 holes

(mm)

3 holes

(mm)

4 holes

(mm)

5 hols

(mm)

6 holes

(mm)

7 holes

(mm)

8 holes

(mm)

M12x1.5/3-1.22.6-1.22.3-1////M16x1.5/4-1.62.6-1.22.3-12.5-12-1//M18x1.56x103.5-24-1.63-1.22.6-1.52.2-1 / /M20x1.55x11.55.3-1.55-2 4.2-1.7 3-1.23-1.2 3-1.23-1.2M22x1.56x146-2.53.5-1.5 4.5-2 // / /M25x1.56x148.7-48-45-2  3.5-1.53.5-1.53.5-1.5 3.5-1.5M27x1.57x188.7-4.55-2 7-3.53.5-1.53.5-1.53.5-1.5 3.5-1.5M32x1.58x225-1010-59-4.5 8-4 7-3.5 6-3/PG7/3-1.22.6-1.22.3-1 ////PG9/4-1.62.6-1.2 2.3-12.5-1  2-1 //PG116x103.5-24-1.6 3-1.2 2.6-1.5 2.2-1 //PG13.55x11.55.3-1.53.5-1.5 4.2-1.74.2-1.7  ///PG166x146-2.53.5-1.5 4.5-2 ////PG217x188.7-4.55-2 7-3.5 3.5-1.5 3.5-1.5 3.5-1.5/

More size information, kindly contact us directly..
We provide customization service !

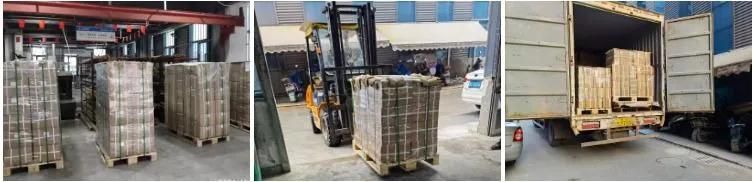

Electronic Multicore Metal Cable Gland Pg16Locknut packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.

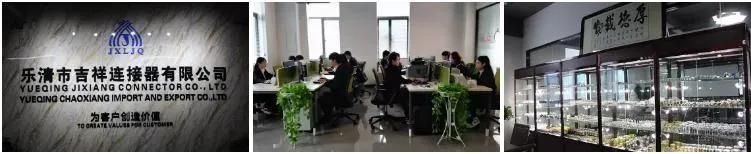

Electronic Multicore Metal Cable Gland Pg16Electronic Multicore Metal Cable Gland Pg16                                                                                    Company ShowElectronic Multicore Metal Cable Gland Pg16Electronic Multicore Metal Cable Gland Pg16

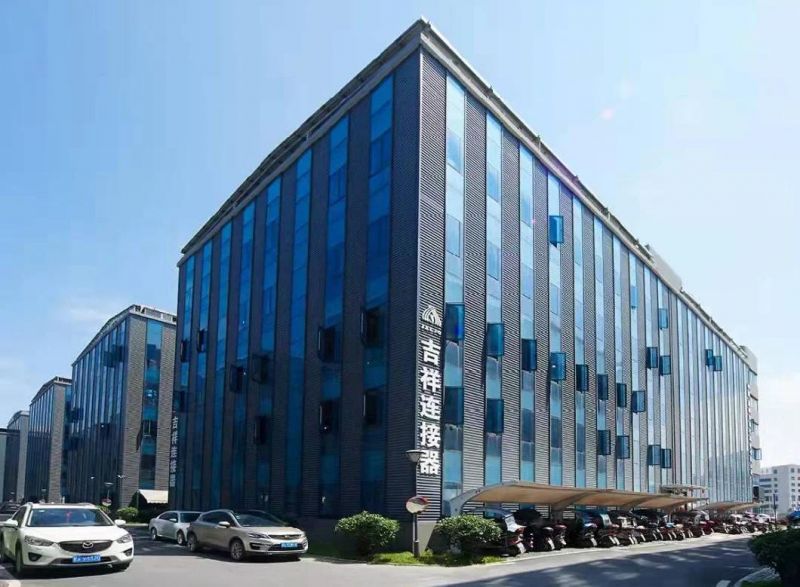

YUEQING JIXIANG CONNECTOR CO.,LTD

We're a professional manufacturer of various kinds of cable glands and cable connectors. JIXIANG combines research,
production and sales. The main products are metal cable glands and nylon cable glands.
We firmly believe that market is the key to the development of enterprises.
Thus, we always take the high quality as our essential principle.Our products are approved by CE, IP68, ROHS, EX ATEX, TUV and ISO9000.
It was widely used in electronic, machinery, instrument, electrical appliances and other industrial fields.Electronic Multicore Metal Cable Gland Pg16Electronic Multicore Metal Cable Gland Pg16
