• Model NO.：CF09-81
• Type：Insulated
• Conductor Type：Stranded
• Conductor Material：Aluminum Clad Steel
• Sheath Material：PVC
• Insulation Material：PVC
• Material Shape：Round Wire
• Products：Stainless Steel 304 Flexible Interlock Metal Condu
• Size：Od6 Till Od56
• Size Range：ID4 Till ID51mm
• Usage：Cable Protection
• Feature：High Temperature Proof
• Cover：PE,PVC Coated
• Package：Carton Box
• MOQ：100meters
• Payment Terms：T,T
• Transport Package：Standard Seaworthy & Air Transportation
• Specification：ROHS SGS
• Trademark：Longterm
• Origin：Wuxi, China
• HS Code：8307100000
• Production Capacity：10000000m,Month

Material:stainless steel grade 304galvanized steelSizeID4-56mmID4-51mmOD6-56mmThickness0.2-1.5mmPressure-10 to 100 barTemperature-40 to 120 degreeCertificationCE/ROHSFittingsoptionalCoatingPVD coating optionalCustomizeacceptableFeaturesIt has excellent performance of waterproof, insulation and tensile property.The counter-lock structure provide a powerful tensile resistance, hard to break and deformHigh flexibilityUsage fieldPower plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.Payment TermTT / West Union / PYAPALDelivery TimeIn 15 daysDeliveryShipment / DHL / TNT/ FEDEX Technical data for flexible conduitNo.Size
(inch)Inner diameter
(mm)Outer diameter
(mm)PVC coated ODPackage
(M)W030050S1F1 3.005.006.00100W040060S1F1 4.006.007.00100W050070S1F1 5.007.007.60100W060080S1F1 6.008.009.20100W070090S1F1 7.009.009.80100W080010S1F1 8.0010.0011.00100W090011S1F1 9.0011.0012.00100W010012S1F1 10.0012.0013.00100W095125S1F1 1/49.5012.5013.2050W125157S1F1 3/812.5015.7016.6050W030060S1F1 1/216.1019.5020.5050W030060S1F1 19.1022.2023.0050W208255S1F1 3/420.8024.3025.5040W220268S1F1 22.0025.6026.8040W264316S1F11   26.4030.0031.6030W345396S1F11 1/434.5038.0039.6030W400468S1F11 1/240.0045.0046.8020W510586S1F2251.0057.0058.6010

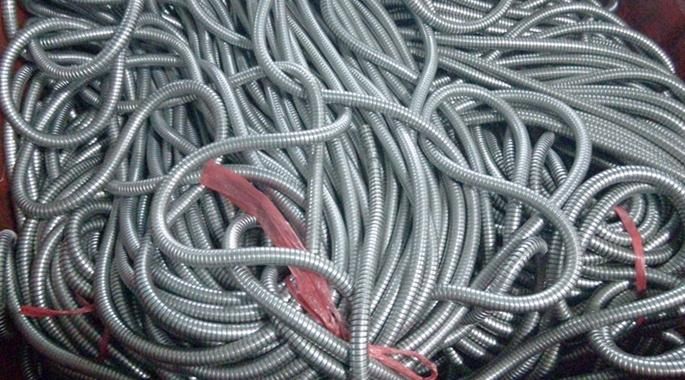

Picture of conduit

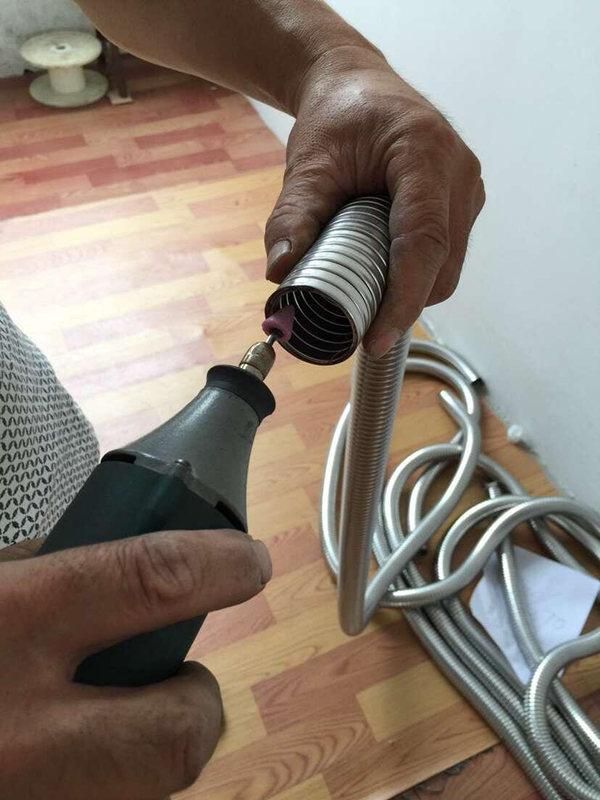

Test

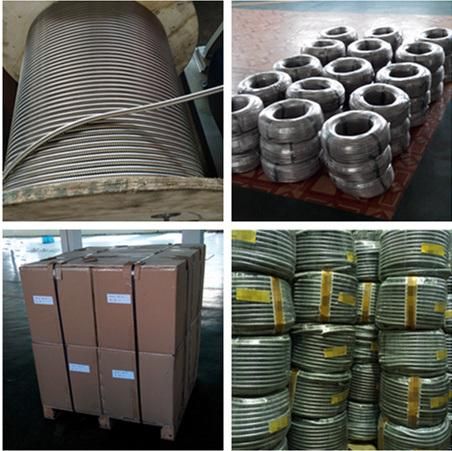

Picture of packages&delivery



Company information
     We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines,such as elastomer hose forming machine, hydraulic forming machine,wire braiding machine, rewinding machine,bellow forming machine, etc..We are lead manufacturer of flex-related products in China.
     Our metal hose and braid is offered in a variety of different alloys that meet or exceed even the most stringent service conditions that industry demands.

FAQ for conduit
Q: What material hose do you have?
A: stainless less steel (garde201, 3045, 316L, 321), galvanized steel, aluminum.
Q: What size hose and what type do you have?

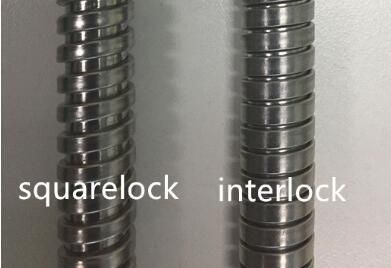

A:We have both squarelock conduit and interlock conduit
B: Squarelock conduit Size: ID3.2 -ID51mm,OD5-57mm
C:Interlock conduit Size: ID4-ID51mm,OD6-56mm
Q: Can you customize for us?
A: yes we accept customize, including hose size, diameter, and pvc coating material & thickness.
Q: why should I chose you?
A: we produce both hose and hose making machine with many years' experience and professional technology.
Q: what is your hose features?
A: performance of waterproof, powerful tensile resistance, high flexibility.
We need to know the following information before we send quotation for the hoses/conduit you need:
1.Hose/conduit material
2.Hose/conduit type, for instance, square lock or interlock hose
3.Size/diameter
4.Quantity, for big quantity order, the prices will be much lower
