Stainless Steel Barb Locking Nylon Cable Ties
Zhejiang Jiuhong Electric Co., Ltd.- Certification：RoHS, ISO, CE
- Color：White
- Fire Rating：94V2
- Size：10*
- Material：Nylon
- Type：Self-Locking Cable Tie
Base Info
- Model NO.：NZ
- Customized：Non-Customized
- Condition：New
- Flame Retardant：Normal
- MOQ：10000PCS
- Colour：White Black Colorful
- Logo：Accept Customized

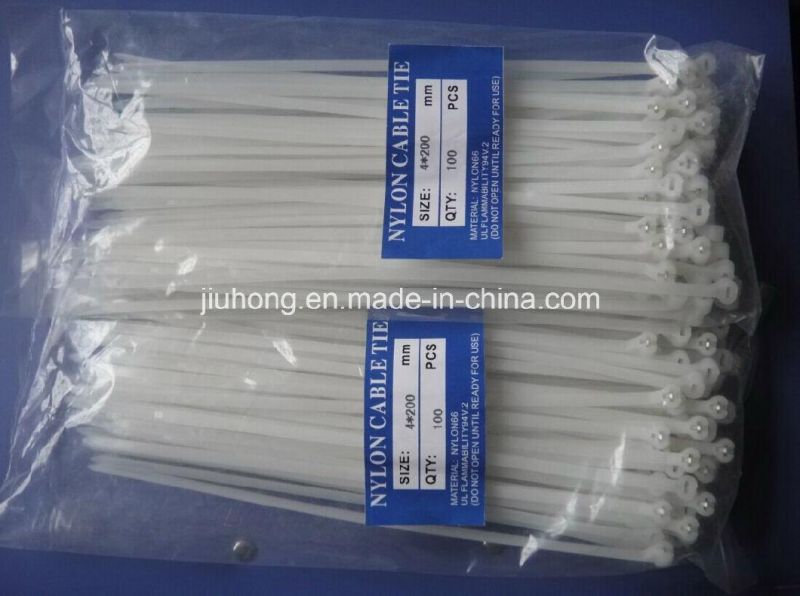

- Transport Package：100PCS,Polybag
- Specification：CE SGS
- Trademark：JIONG
- Origin：Zhengjiang, Chinag
- HS Code：39269090
- Production Capacity：2container,Month
Description
Basic Info.
Model NO. NZ Customized Non-Customized Condition New Flame Retardant Normal MOQ 10000PCS Colour White Black Colorful Logo Accept Customized Transport Package 100PCS/Polybag Specification CE SGS Trademark JIONG Origin Zhengjiang, Chinag HS Code 39269090 Production Capacity 2container/MonthProduct Description

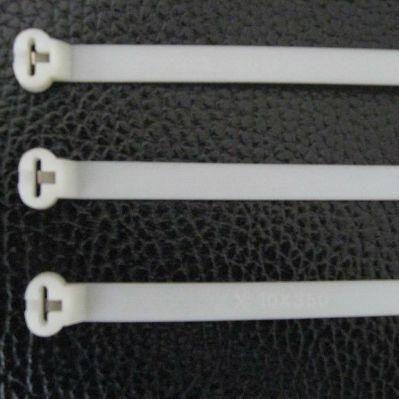

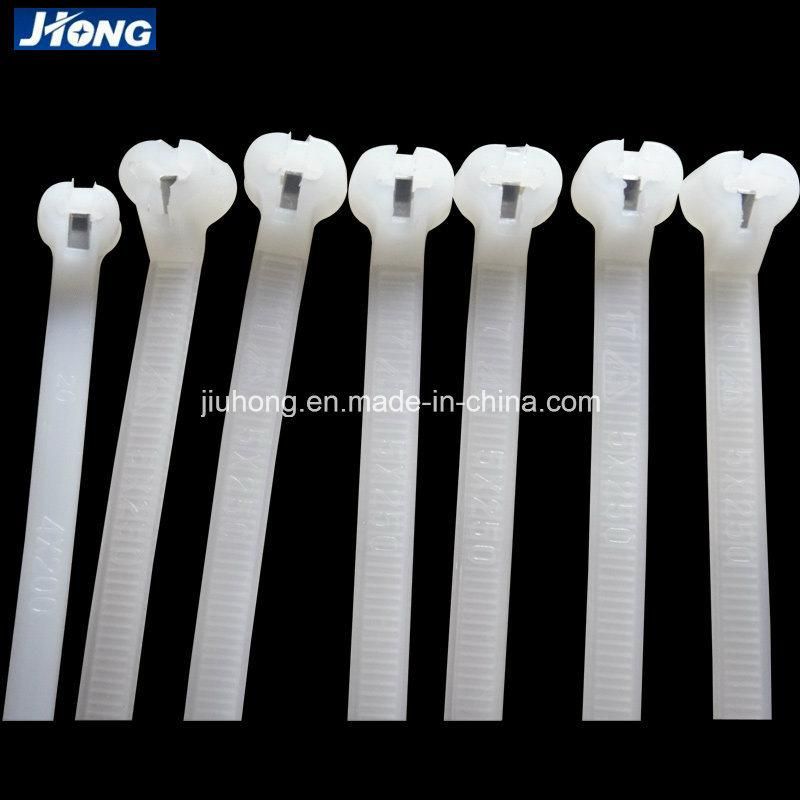

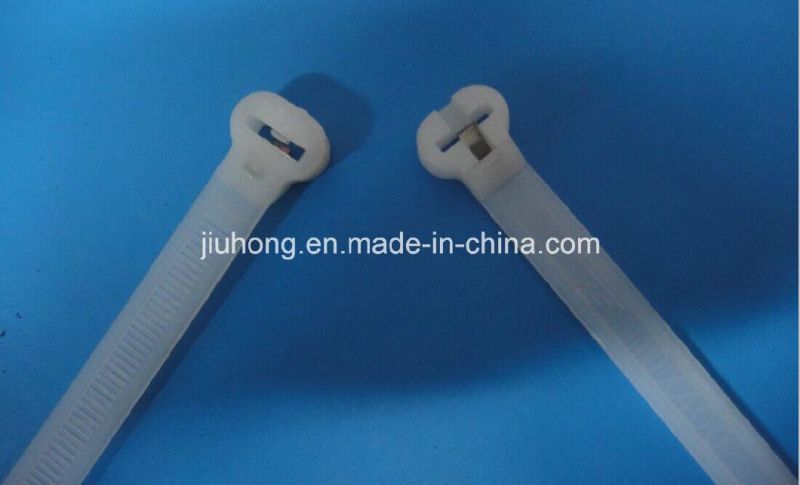

Nylon Cable Tie-Stainless Steel Barb Locking
1.For indoor and outdoor use
2.One-piece construction for performance and reliablility
3.Lowest threading force of any one-piece cable tie in the industry
4.Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
5.A variety of materials and color is available for specific applications
6.Working temperature:-40°C~85°C
7.Specification:UL approved material.Heat resistant,color are available
8.Material:Nylon 66;94v-2
| Part Number | Approx.Length mm(inch) | Approx.Width mm(inch) | Max.Bundle Dia. mm(inch) | Min.loop Tensile Strength N(bs) |
| JHS1-3X100 | 100(3.94) | 3(0.118) | 22(0.87) | 80(18) |
| JHS1-4X150 | 150(5.91) | 4(0.157) | 35(1.38) | 160(36) |
| JHS1-4X200 | 200(7.87) | 4(0.157) | 53(2.09) | 160(36) |
| JHS1-5X250 | 250(9.84) | 5(0.197) | 65(2.56) | 200(45) |
| JHS1-5X300 | 300(11.81) | 5(0.197) | 76(2.99) | 200(45) |
| JHS1-5X380 | 380(14.96) | 5(0.197) | 102(4.02) | 200(45) |
| JHS1-6X200 | 200(7.87) | 6(0.236) | 53(2.09) | 220(49.5) |
| JHS1-7X300 | 300(11.81) | 7(0.276) | 76(2.99) | 250(56.3) |
| JHS1-8X145 | 145(5.7) | 8(0.315) | 34(1.33) | 250(56.3) |
| JHS1-8X175 | 175(6.89) | 8(0.315) | 43(1.69) | 250(56.3) |
| JHS1-8X200 | 200(7.87) | 8(0.315) | 53(2.09) | 250(56.3) |
| JHS1-8X240 | 240(9.45) | 8(0.315) | 64(2.52) | 250(56.3) |
| JHS1-8X300 | 300(11.81) | 8(0.315) | 76(2.99) | 250(56.3) |
| JHS1-8X400 | 400(15.75) | 8(0.315) | 102(4.02) | 500(112.5) |
| JHS1-10X300 | 300(11.81) | 10(0.394) | 76(2.99) | 500(112.5) |
| JHS1-10X350 | 350(13.78) | 10(0.394) | 97(3.82) | 500(112.5) |
| JHS1-10X400 | 400(15.75) | 10(0.394) | 102(4.02) | 550(123.7) |
| JHS1-10X450 | 450(17.72) | 10(0.394) | 120(4.72) | 550(123.7) |
| JHS1-10X600 | 600(23.62) | 10(0.394) | 186(7.32) | 550(123.7) |
