Fiberglass Braided Sleeving Insulating Silicone Fiberglass Mesh Sleeving

Xiamen QX Trade Co., Ltd.
  • Certification：CSA, UL, RoHS
  • Color：Orange
  • IP Rating：IP68
  • Usage：Optical Cable, Lighting Decoration, Electric Wire, DVI Line, HDMI Cable
  • Material：Fiberglass
  • Type：Insulation Sleeve

Base Info

  • Model NO.：BS-FS-C
  • Chemistry：Organic Insulation
  • Thermal Rating：200 200
  • Maximum Voltage：<10kv
  • Classification：Organic Insulating Material
  • Transport Package：100m,Roll
  • Specification：0.8mm-100mm
  • Trademark：QX
  • Origin：Made in China
  • HS Code：7019909000
  • Production Capacity：100, 000 M,Month

Description

Basic Info.

Model NO. BS-FS-C Chemistry Organic Insulation Thermal Rating 200 200 Maximum Voltage <10kv Classification Organic Insulating Material Transport Package 100m/Roll Specification 0.8mm-100mm Trademark QX Origin Made in China HS Code 7019909000 Production Capacity 100, 000 M/Month

Product Description

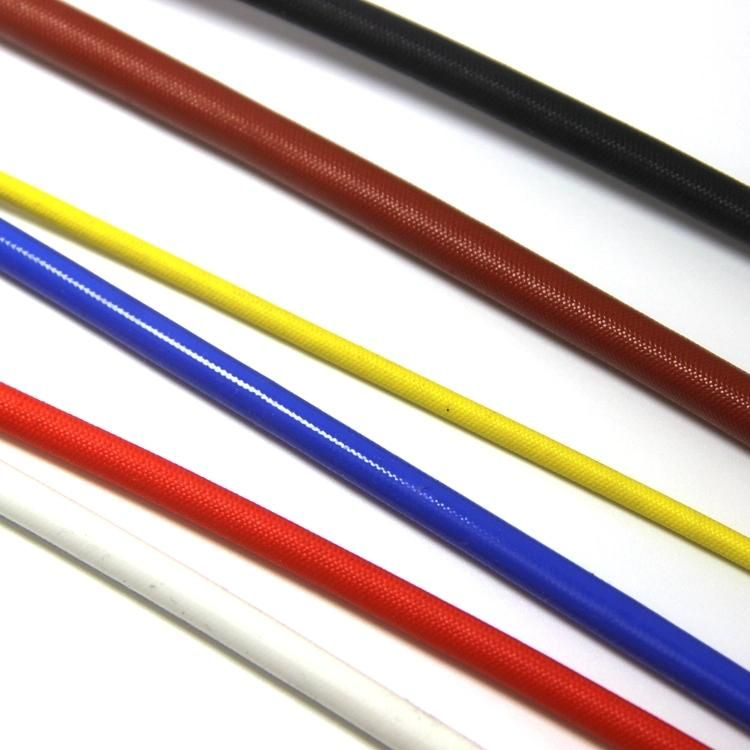

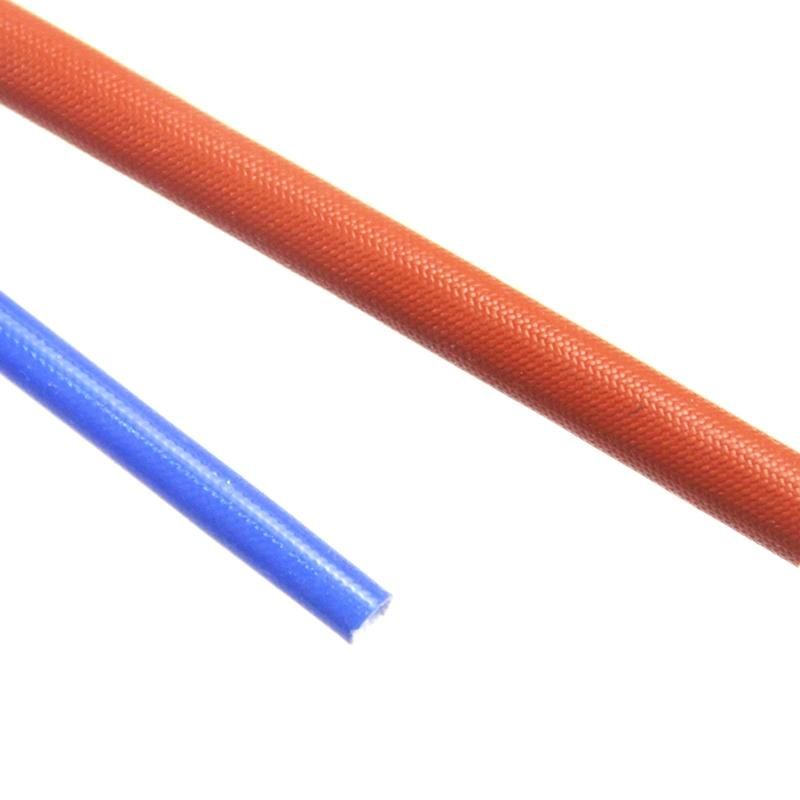

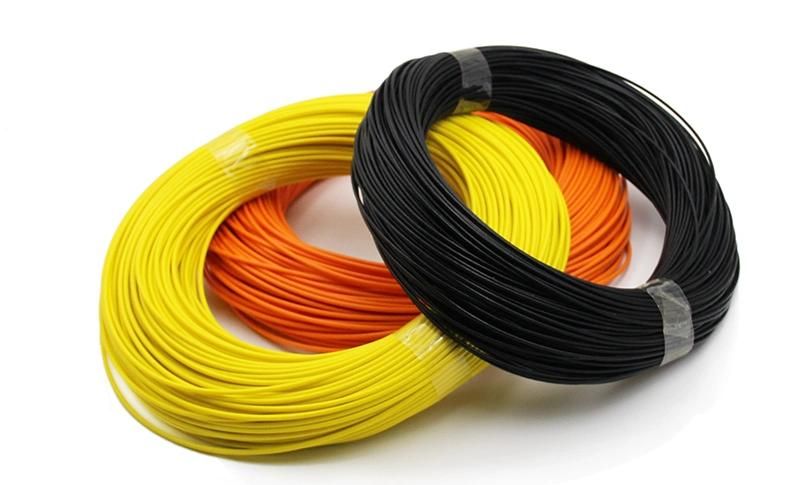

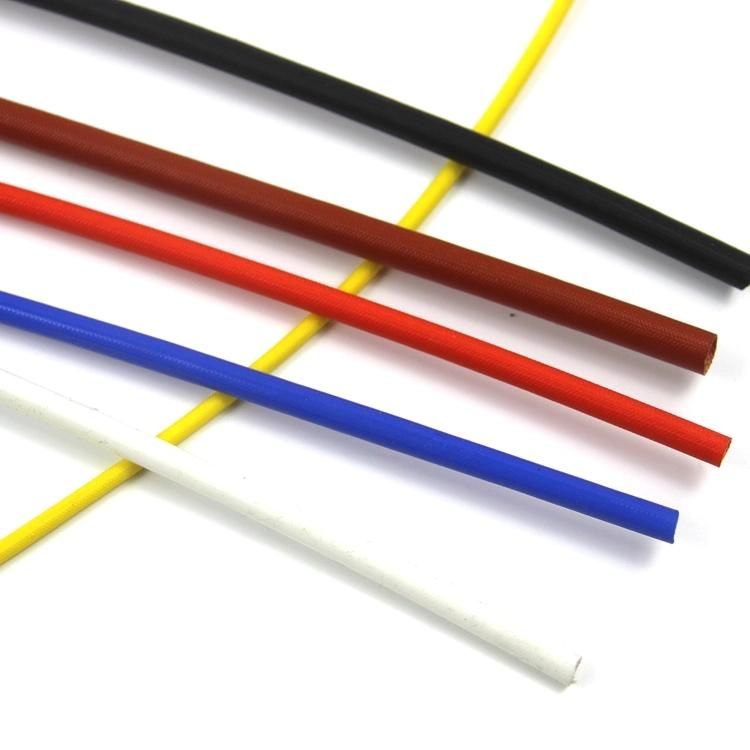

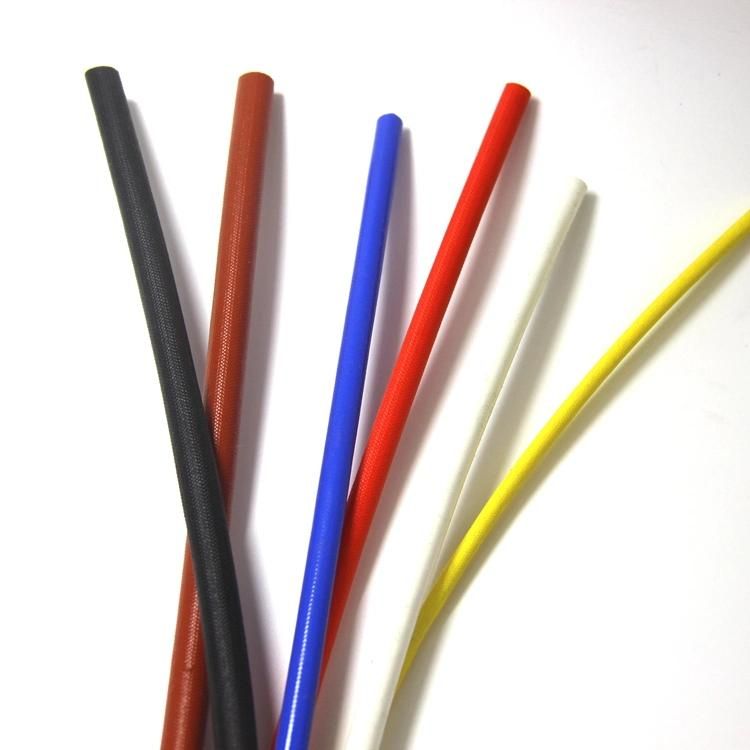

Fiberglass Braided Sleeving Insulating Silicone Fiberglass Mesh Sleeving
BS-FS Fiberglass Sleeving is treated at high temperature with a special kind of silicone resin and possess outstanding
a temperature classification of 200C. It also has excellent properties of self-extinguishing and flexibility.

Fiberglass Braided Sleeving Insulating Silicone Fiberglass Mesh Sleeving

Fiberglass Braided Sleeving Insulating Silicone Fiberglass Mesh Sleeving
Fiberglass Braided Sleeving Insulating Silicone Fiberglass Mesh Sleeving

Product Features

1.Tight weaving and full coverage

2.Economical and Easy to install

3.Non corrosive, fungas resistant

4.High temperature , aging resistant

5.Flexible and Soft

6.Self - extinguishing

7.High insulation

8.ROHS, UL, CSA Certification

Fiberglass Braided Sleeving Insulating Silicone Fiberglass Mesh SleevingFiberglass Braided Sleeving Insulating Silicone Fiberglass Mesh Sleeving
Application

These sleeves are widely used for supplementary insulation on transformer, motor, generator and resistor leads etc.



Technical data

Sleeving materialFiberglass fiber
Coating materialSilicone resin
Operating range-60C-+200C
Breakdown voltage1.2kV-4.0kV
FlammabilityVW-1
Standard colorWhite
CertificateUL, CSA, RoHS
Cutting toolCutting machine, Scissors


Datasheet

     Part No.          I.D (I)    Wall thickness (T)   Packaging (L)
     BS-FS0.8          0.80                0.30       100m/roll
     BS-FS1.0          1.00                0.30       100m/roll
     BS-FS1.5          1.50                0.30       100m/roll
     BS-FS2.0          2.00                0.35       100m/roll
     BS-FS2.5          2.50                0.35       100m/roll
     BS-FS3.0          3.00                0.35       100m/roll
     BS-FS4.0          4.00                0.40       100m/roll
     BS-FS10.0         10.00                0.50        50m/roll
     BD-FS12.0         12.00                0.50        50m/roll
