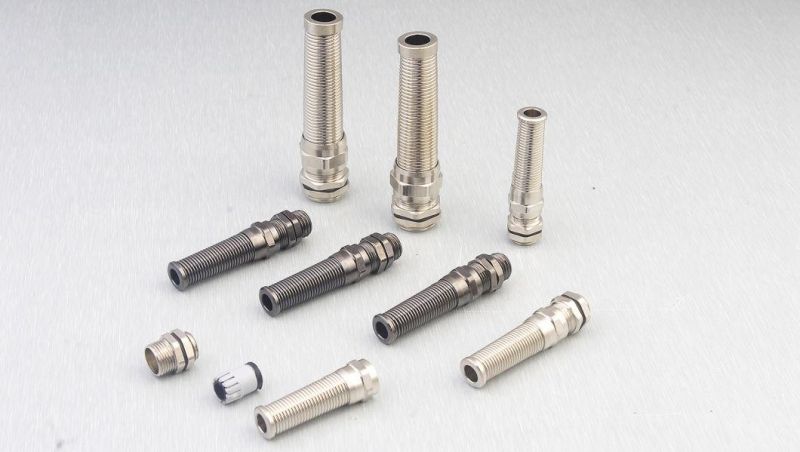

Waterproof Type Electric Bend Metal Pg9 Flexible Cable Gland

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Surface Treatment：No
  • Color：Metallic , Black , Light Grey
  • IP Rating：IP68
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：PG9
  • Cable Gland：Waterproof
  • Main Material：Brass
  • Transport Package：Standard Export Carton
  • Trademark：JXLJQ
  • Origin：China Mainland
  • HS Code：8547901000
  • Production Capacity：50000PCS,Month

Description

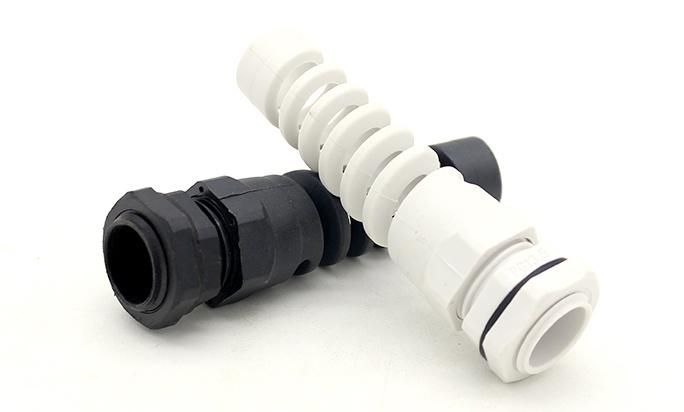

Product Name:Flexible cable glandMain material:Plastic / Nickel Plated BrassStandard size:M12-M27; PG7-PG21Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is availableNylon MaterialWaterproof Type Electric Bend Metal Pg9 Flexible Cable GlandMetal MaterialWaterproof Type Electric Bend Metal Pg9 Flexible Cable GlandSizesCable Range(mm)Thread O.D.(mm)Thread Length(mm)Spanner Size(mm)M12x1.53-6.512816M16x1.54-816819M18x1.55-1018822M20x1.56-1220924M22x1.510-14221027M25x1.513-18251033M27x1.513-18271033.........................PG73-6.512.5816PG94-815.2819PG115-1018.6822PG13.56-1220.4924PG1610-1422.51027PG2113-1828.31033

More size information, kindly contact us directly..
We provide customization service !

Waterproof Type Electric Bend Metal Pg9 Flexible Cable GlandLocknut packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.
Waterproof Type Electric Bend Metal Pg9 Flexible Cable GlandWaterproof Type Electric Bend Metal Pg9 Flexible Cable Gland                                                                                    Company ShowWaterproof Type Electric Bend Metal Pg9 Flexible Cable GlandWaterproof Type Electric Bend Metal Pg9 Flexible Cable Gland

YUEQING JIXIANG CONNECTOR CO.,LTD

We're a professional manufacturer of various kinds of cable glands and cable connectors. JIXIANG combines research,
production and sales. The main products are metal cable glands and nylon cable glands.
We firmly believe that market is the key to the development of enterprises.
Thus, we always take the high quality as our essential principle.Our products are approved by CE, IP68, ROHS, EX ATEX, TUV and ISO9000.
It was widely used in electronic, machinery, instrument, electrical appliances and other industrial fields.Waterproof Type Electric Bend Metal Pg9 Flexible Cable GlandWaterproof Type Electric Bend Metal Pg9 Flexible Cable Gland

We welcome your inquiry

You can click here to start online customization for the design you want.
