Direct Factory Price Galvanized Electrical Metallic Tubing (EMT) Conduits with UL OEM

TOPELE ENTERPRISE CO., LTD.
  • Color:Silver
  • IP Rating:IP68
  • Surface Treatment:Galvanised
  • Application:Electrical Wiring System
  • Material:Steel
  • Certification:UL

Base Info

  • Model NO.:EMT
  • Outside Diameter:17.93-114.3mm
  • Length:3050mm
  • Finish:Pre-Galvanized , Hot DIP Galvanized
  • Thickness:Standard and Thinner(0.85-2.11mm)
  • Size:1,2", 3,4", 1", 1-1,4", 1-1,2", 2"
  • Brand:Topele , OEM
  • Standard:UL797, C80.3
  • Transport Package:Woven Bag
  • Specification:1,2"-4"
  • Trademark:TOPELE, OEM
  • Origin:China
  • Production Capacity:30*20′ Container ,Month

Description

1. EMT Tube(Electrical metallic tubing) standard pipe   1/2"17.93mm1.07mm3.05m20pcs/bundle1.36 3/4"23.42mm1.24mm3.05m15pcs/bundle2.07 1"29.54mm1.45mm3.05m10pcs/bundle3.06 1-1/4"38.35mm1.60mm3.05m5pcs/bundle4.56 1-1/2"44.2mm1.65mm3.05m5pcs/bundle5.28 2"55.8mm1.65mm3.05m5pcs/bundle6.78 2-1/2"73.03mm1.83mm3.05m1pcs/bundle9.8 3"88.9mm1.83mm3.05m1pc11.98 3-1/2"101.6mm2.11mm3.05m1pc15.79 4"114.3mm2.11mm3.05m1pc17.8





Applications:

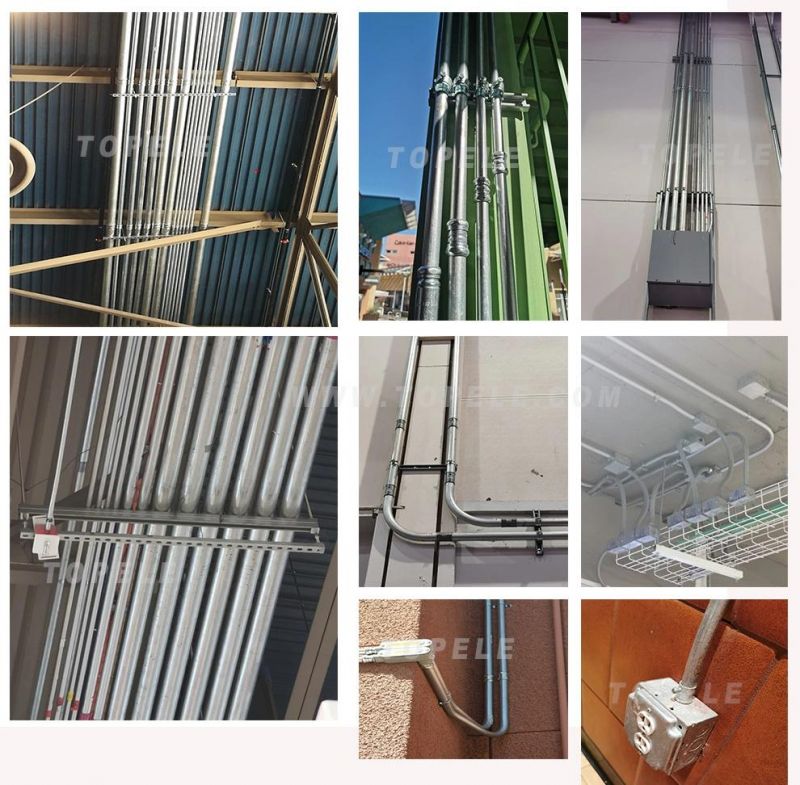

TOPELE EMT CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT CONDUIT is made of Pre-galvanized steel and has an organic coating inside.



From thickness, TOPELE have standard and thiner for  customer choose,the thickness can also be customized according to the customer's requirements.

From the surface treatment, TOPELE have hot dipped Galvanized (HDG) and the Pre- galvanized.



Direct Factory Price Galvanized Electrical Metallic Tubing (EMT) Conduits with UL OEM

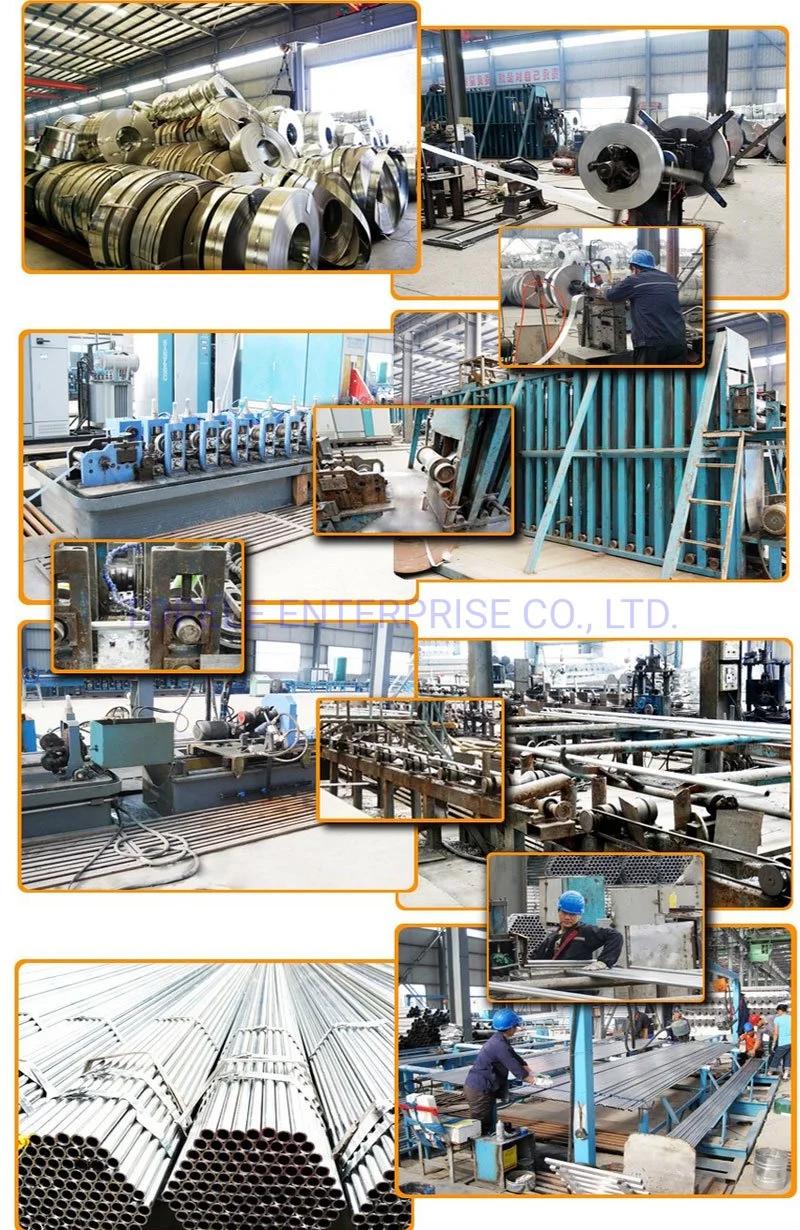

Warehouse
