• Model NO.：BS-SCW019
• Classification：Split Braided Sleeve
• Standard Color：Black
• Available Size：3mmid~50mmid
• Flammability：UL94 VW-1
• Abrasion Resistance：Medium
• Wall Thickness：0.027"
• Tensile Strength - Yarn (ASTM D-2265) Lb：7.5
• Sample：Avaliable
• Condition：New
• Customization：Pre-Cutting, Package
• Transport Package：25m,Roll
• Specification：19mm ID
• Trademark：EKO
• Origin：Fujian, China
• HS Code：5909000000
• Production Capacity：2000000 Meters,Week

Basic Info.

Model NO. BS-SCW019 Classification Split Braided Sleeve Standard Color Black Available Size 3mmid~50mmid Flammability UL94 VW-1 Abrasion Resistance Medium Wall Thickness 0.027" Tensile Strength - Yarn (ASTM D-2265) Lb 7.5 Sample Avaliable Condition New Customization Pre-Cutting, Package Transport Package 25m/Roll Specification 19mm ID Trademark EKO Origin Fujian, China HS Code 5909000000 Production Capacity 2000000 Meters/Week

Product Description

EKO 19mm PET Split Wiring Wrap for Post-termination Cable Organisation



Product Type	EKO 19mm PET Split Wiring Wrap for Post-termination Cable Organisation
Material	Polyester Monofilament
Size	19mm ID
Color	Black, White, Grey and Colorful Customized
Packaging	25m/Roll
Operating Temperature	-50°C~+150°C
Melt Point	240°C+-10°C
Flammability	UL94 VW-1
Certification	ROHS, CSA, UL, Halogen Free
Cutting Tool	Scissors or Hot Knife



Where we could apply for PET Braided Wrap Around Sleeving?

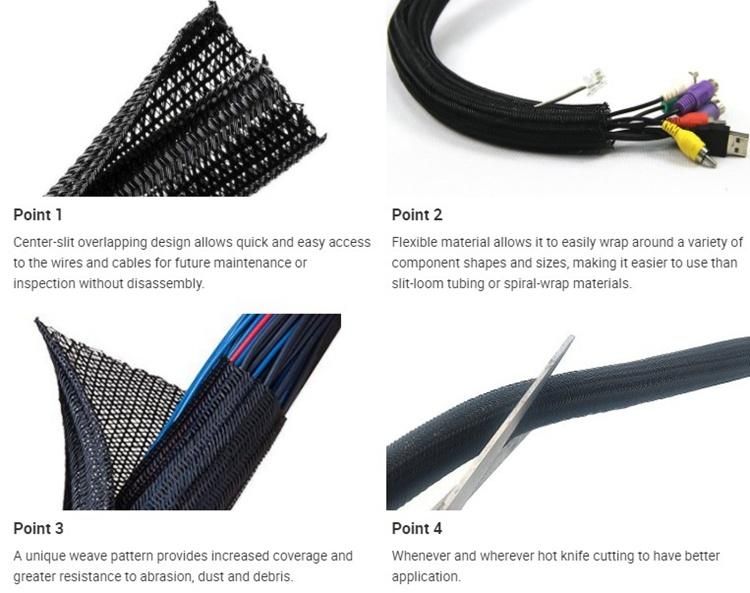

What are advantages of PET Braided Wrap Around Sleeving?

What is the change after using PET Braided Wrap Around Sleeving?

Specifications


Part No	Inner Diameter	Overlap	Max Bundle Dia	Packing (L)
BS-SCW003	3mm	25%	4mm	200m/Roll
BS-SCW006	6mm	25%	7mm	200m/Roll
BS-SCW009	9mm	25%	10mm	100m/Roll
BS-SCW013	13mm	25%	14mm	50m/Roll
BS-SCW019	19mm	25%	20mm	25m/Roll
BS-SCW025	25mm	25%	26mm	25m/Roll
BS-SCW032	32mm	25%	33mm	25m/Roll
BS-SCW038	38mm	25%	40mm	25m/Roll
BS-SCW050	50mm	25%	52mm	25m/Roll

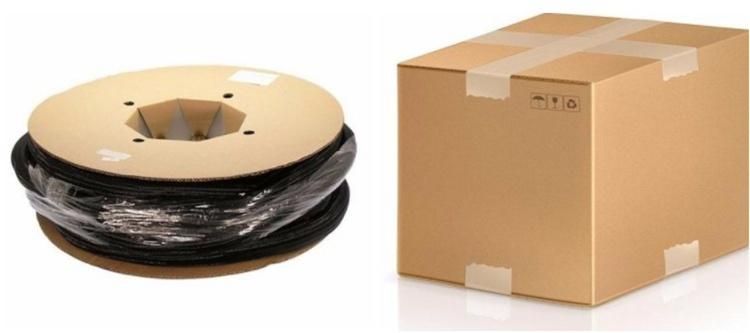

Packing
