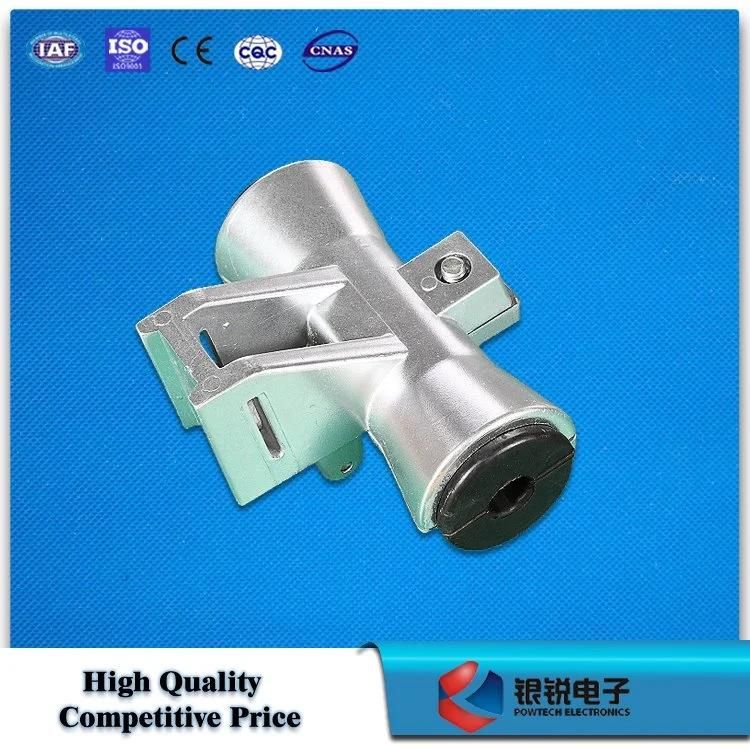

Fiber Optic Cable Customized Suspension Pipe Clamps
Qingdao Powtech Electronics Co., Ltd.- Installation：Through Stainless Steel Strap
- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Aluminum
- Insulation Material：PE
Base Info
- Model NO.：AQXM
- Material Shape：Round Wire
- Range of Application：Cold-Resistant
- Name：ADSS Optical Fibers Cable Customized Suspension Cl
- Rts：40kn
- Span Length：200m
- Transport Package：Wooden Case
- Specification：100m span
- Trademark：Powtech
- Origin：China
- HS Code：76109090
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. AQXM Material Shape Round Wire Range of Application Cold-Resistant Name ADSS Optical Fibers Cable Customized Suspension Cl Rts 40kn Span Length 200m Transport Package Wooden Case Specification 100m span Trademark Powtech Origin China HS Code 76109090 Production Capacity 10000PCS/MonthProduct Description
Fiber Optic Cable Customized Suspension Pipe Clamps
Applications:

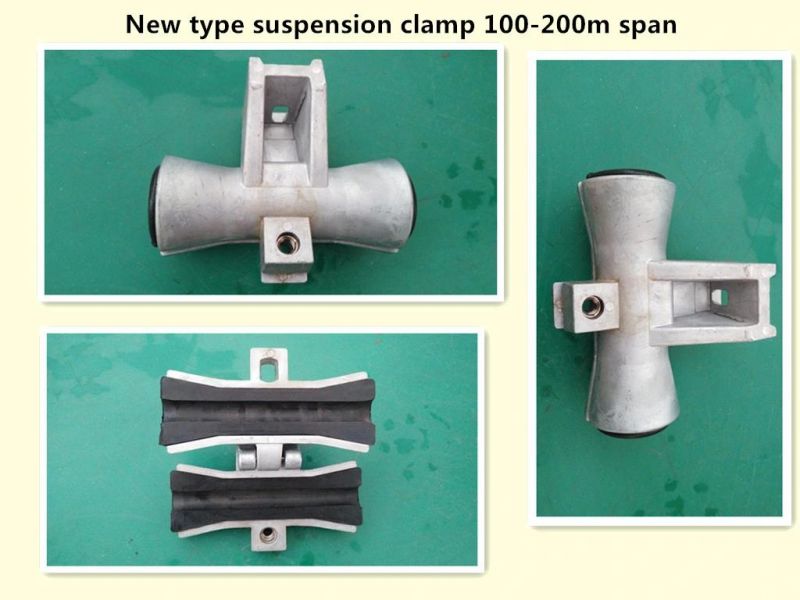

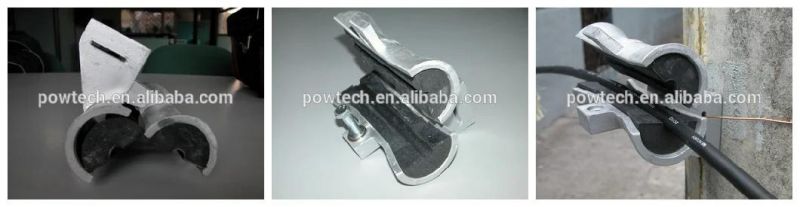

The suspension sets is designed to gently, but firmly support ADSS cable. The AQXM suspension set features the following: band mount design, hinged keeper, single-bolt clamping, and stackability for multi-cable installations.
Configuration
| S.No | Description | Qty | Material |
| 1 | Keeper | 1 | Aluminium alloy |
| 2 | Cushion inserts | 1 | Synthetic rubber |
| 3 | Captured bolt & washer | 1 | Stainless Steel |
| 4 | Lock nut | 1 | Stainless Steel |
Data sheet:
Max. Span length: 200m
RTS: 40KN
| Model | Cable diameter | Armor Rods (mm) | Weight(kg) |
| AQXM 200-XX | 9.0-18.0 | 0 | 1.1 |

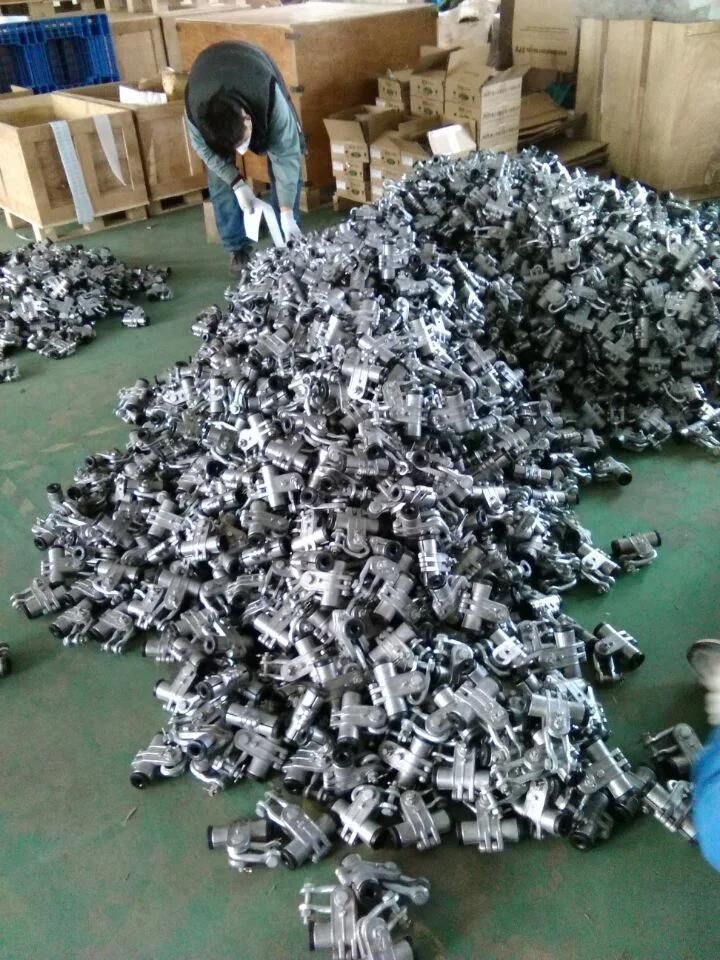

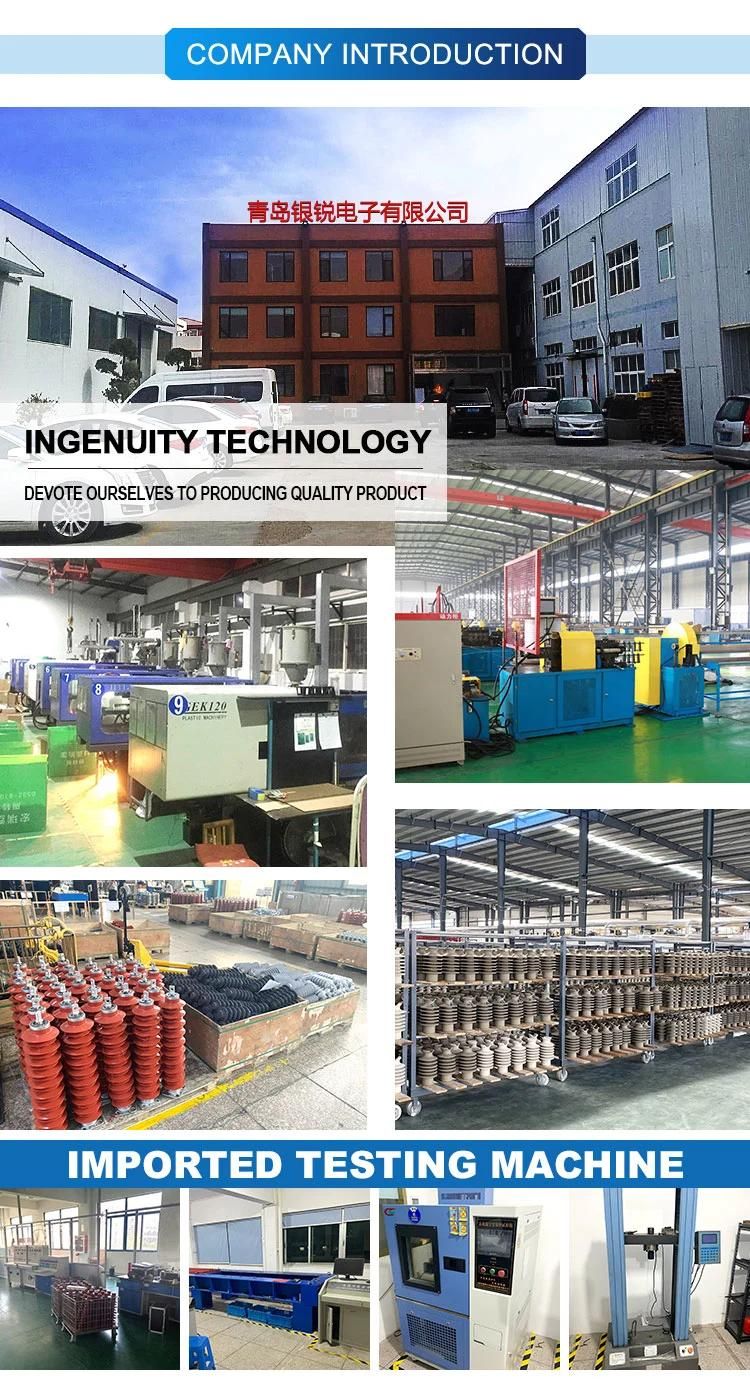

Production Line:
Installation:

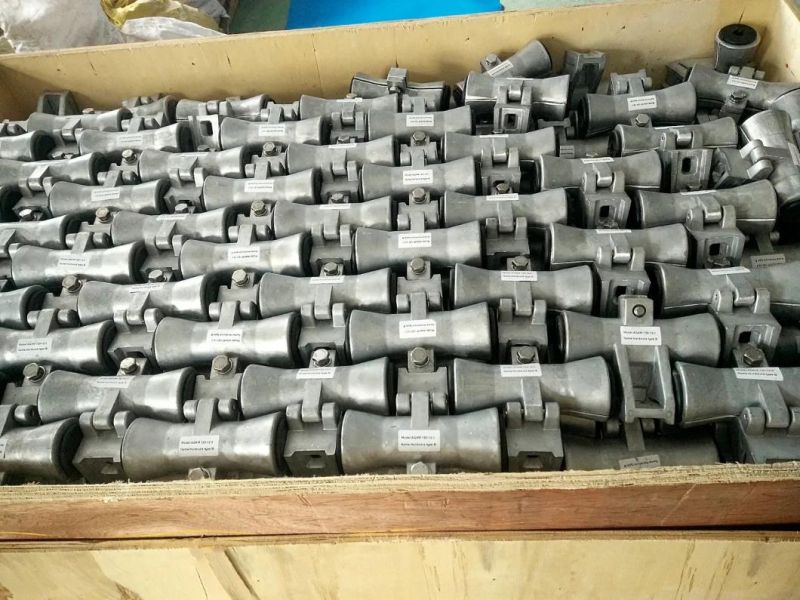

Package:
