• Rated Voltage：3kv
• Tensile Strength：10.4MPa
• Transport Package：100m,Roll
• Trademark：ZC
• Origin：China
• Production Capacity：50000 Rolls, Month

Basic Info.

Rated Voltage 3kv Tensile Strength 10.4MPa Transport Package 100m/Roll Trademark ZC Origin China Production Capacity 50000 Rolls/ Month

Product Description

Product Description:

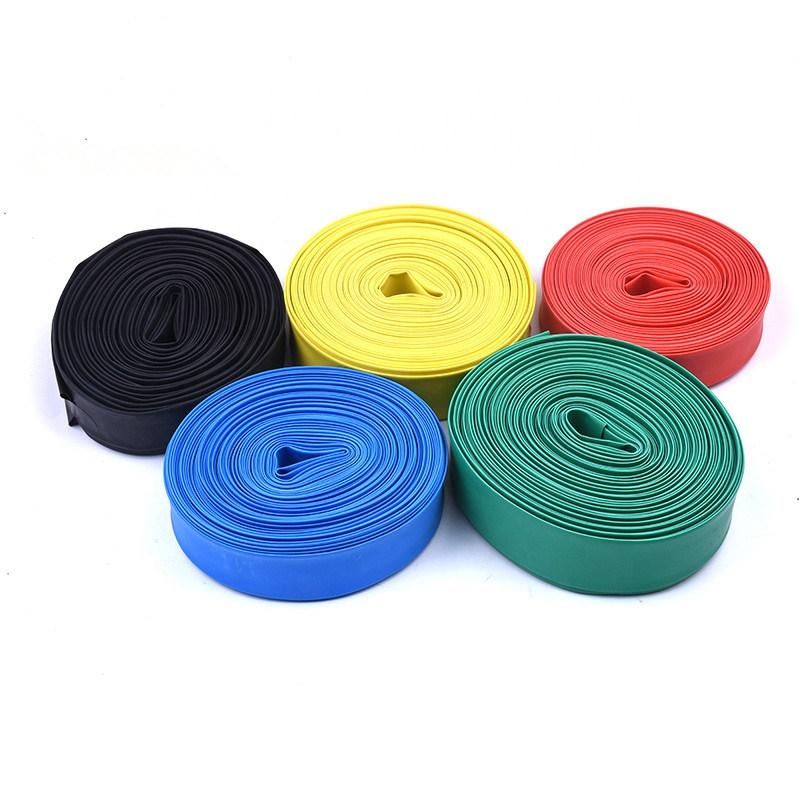

 Five Colors



3KV  Heat Shrinkable Tubing


size	As supplied (mm)		After recovery (mm)		standard length
(mm)	Inside diameter	Wall thickness	Inside diameter(max)	Wall thickness(min)	(m/spool)
Φ1.0	1.5±0.3	0.20±0.05	0.6	0.33	200
Φ1.5	2.0±0.3	0.20±0.05	0.75	0.36	200
Φ2.0	2.5±0.3	0.20±0.05	1	0.44	200
Φ2.5	3.0±0.3	0.25±0.05	1.25	0.44	200
Φ3.0	3.5±0.3	0.25±0.05	1.5	0.44	200
Φ3.5	4.0±0.3	0.25±0.05	1.75	0.44	200
Φ4.0	4.5±0.3	0.25±0.05	2	0.44	200
Φ4.5	5.0±0.3	0.25±0.05	2.25	0.44	200
Φ5.0	5.5±0.3	0.28±0.05	2.5	0.56	100
Φ6.0	6.5±0.3	0.28±0.05	3	0.56	100
Φ7.0	7.6±0.3	0.30±0.07	3.5	0.56	100
Φ8.0	8.6±0.3	0.30±0.07	4	0.56	100
Φ9.0	9.6±0.3	0.30±0.07	4.5	0.56	100
Φ10.0	10.7±0.4	0.30±0.07	5	0.56	100
Φ11.0	11.7±0.4	0.30±0.07	5.5	0.56	100
Φ12.0	12.7±0.4	0.30±0.07	6	0.56	100
Φ13.0	13.7±0.4	0.35±0.08	6.5	0.69	100
Φ14.0	14.7±0.4	0.35±0.08	7	0.69	100
Φ15.0	15.7±0.5	0.35±0.08	7.5	0.69	100
