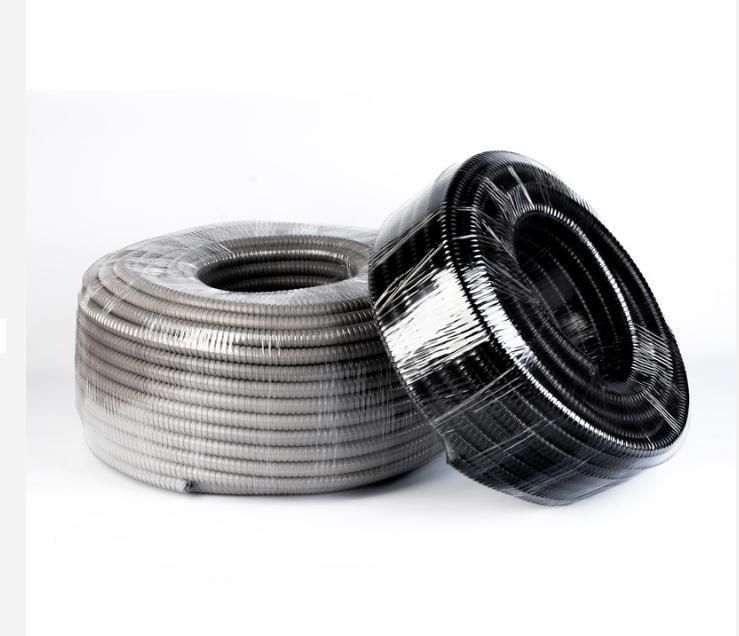

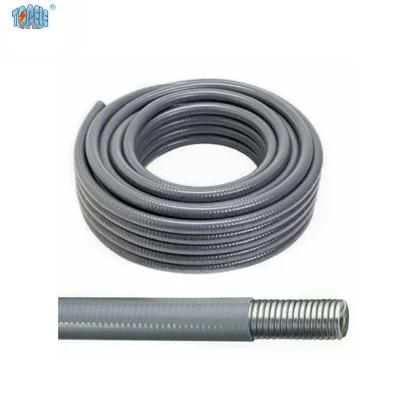

Galvanized Stainless Steel Flexible Conduit, Flexible Metal Conduit Roll with UL
TOPELE ENTERPRISE CO., LTD.- IP Rating：IP68
- Surface Treatment：Galvanised
- Application：Electrical Wiring
- Material：Carbon Steel
- Certification：UL
- Length：50mm or as Customers′ Requirements
Base Info
- Model NO.：GALVANIZED FLEXIBLE CONDUIT
- Inside Diameter：12.8-102.6
- Transport Package：Packed in Bundles with Woven Bag
- Specification：3,8"-4"
- Trademark：TOPELE
- Origin：Hangzhou, China
- HS Code：72169100
Description
TOPELE#SIZE Metric Designator Inside Diameter Outside Diameter Min.Bend Meters Min(mm) Max(mm) Min(mm) Max(mm) GFC01 3/8" 12 10.82 12.09 14.22 15.49 25 100 GFC02 1/2" 16 18.44 19.97 21.84 23.37 38 100 GFC03 3/4" 21 22.64 24.17 26.54 28.07 45 50 GFC04 1" 27 28.82 30.85 33.02 35.05 55 50 GFC05 1-1/4" 35 34.47 36.50 39.37 41.40 62 25 GFC06 1-1/2" 41 41.79 44.33 46.99 49.53 90 25 GFC07 2" 53 54.29 56.83 59.69 62.23 110 20 GFC08 2-1/2" 63 65.44 70.52 72.64 77.72 130 20 GFC09 3" 78 78.14 83.22 85.34 90.42 160 10 GFC10 4" 103 103.54 108.64 110.74 115.85 210 10
Packing & Shipping
EMT conduit are packed in bundles with woven bag, we also can put customers' sticker on pipes,woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes. For regular packing information, please check the Table .
