• Model NO.：HCG
• Transport Package：Ctns
• Specification：Normal
• Trademark：OEM
• Origin：China
• HS Code：3926909090
• Production Capacity：10000,Day

Basic Info.

Model NO. HCG Transport Package Ctns Specification Normal Trademark OEM Origin China HS Code 3926909090 Production Capacity 10000/Day

Product Description

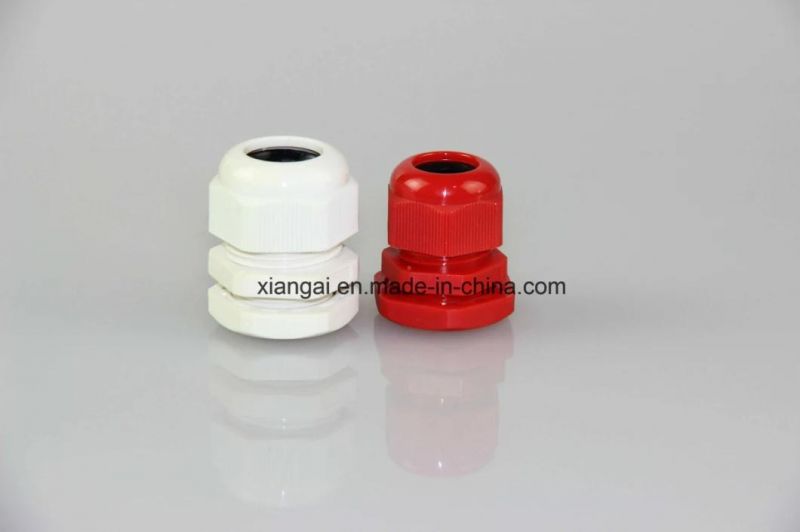

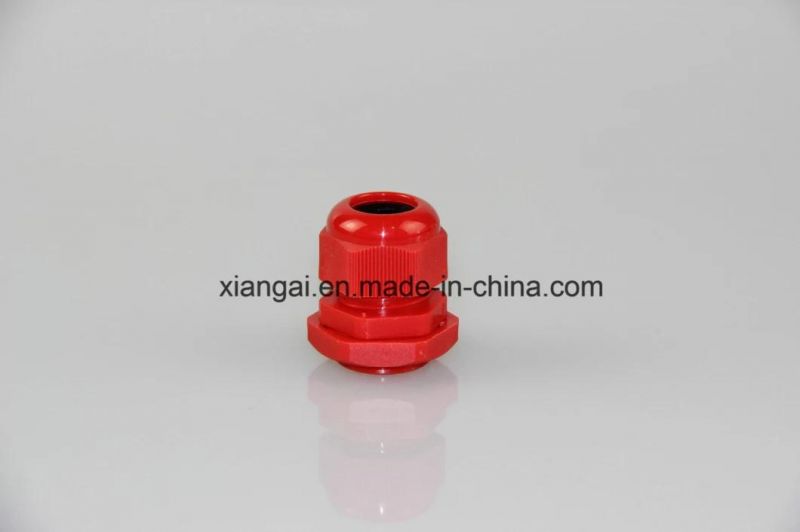

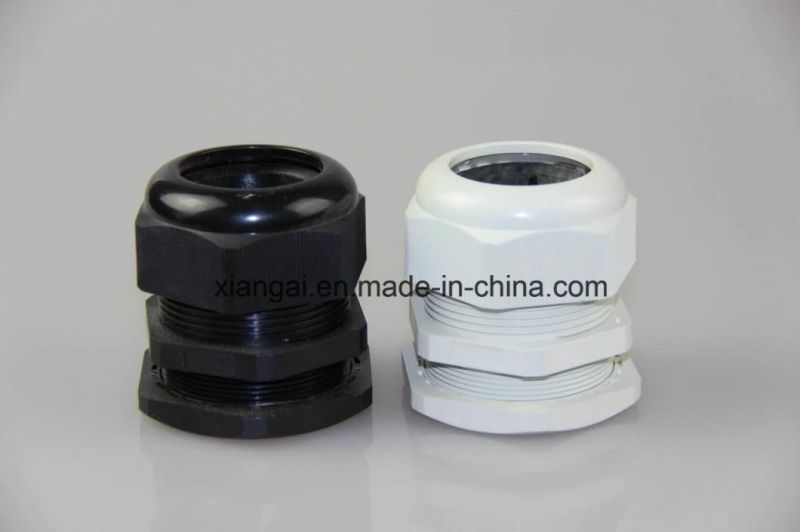

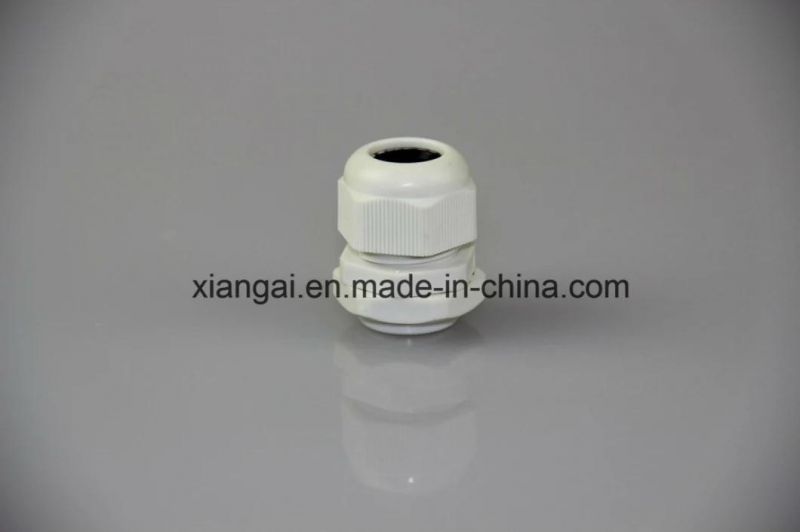

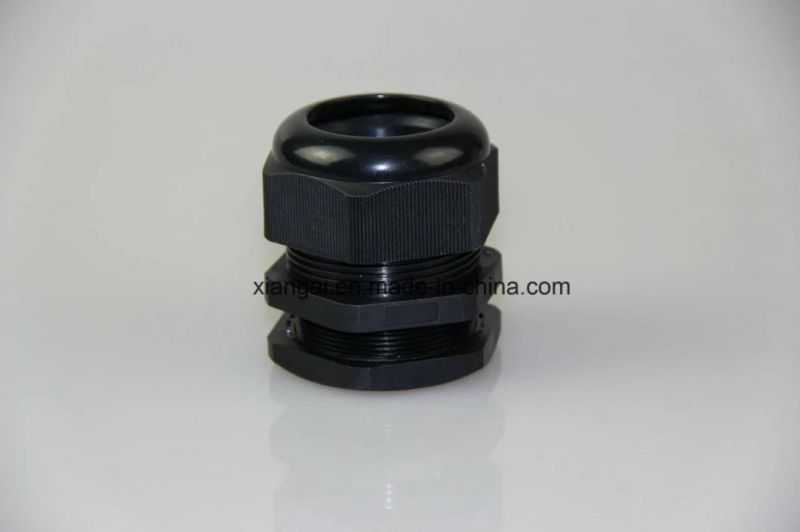

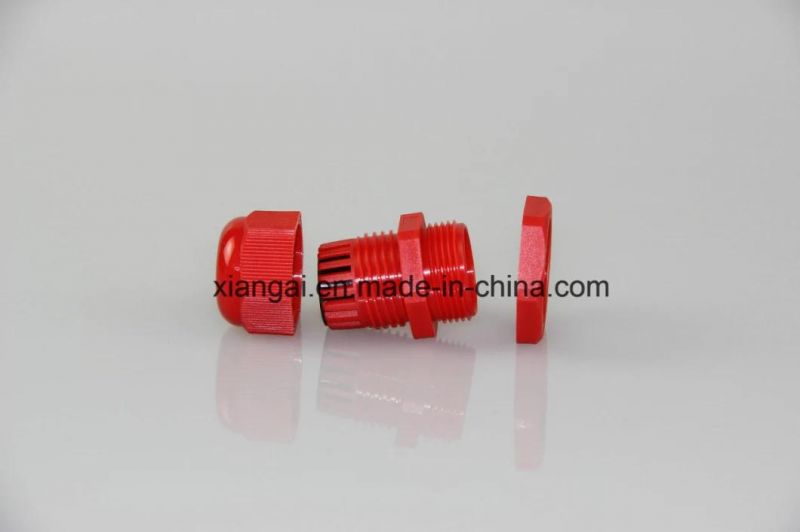

Water-Proof Nylon Cable Glands

Material: Made from UL Nylon66, 94V-2 and tight ring from rubberr
Feature: 1. Special designation, good strengthsile and none damange to electrical machine.
2. Not need to dismetgrate the fix terminal, cable can be inserted through directly then tighter easy and save time
Seal ring: NBR
Color: Black, Bule, White & Gray
Temperature: Stat.: -40° C to +120° C
Dyn.: -40° C to +120° C
1 IP68 degree of protection
2 UL approved nylon 66, 94V-2 (Black)
3 UV resistant in outdoor applications
4 Indoor and outdoor applications
5 Superior strain relief
6 Operating temperature range of -40 cent degree to 100 cent degree
7 Provides a positive seal on cable sheath
Application: Used for machinery control box distribution plate machine and electrical, etc

Type	ITEM.NO.	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	B1 (mm)	Cable range (mm)
M12×1.5	PG-07	12	8.1	9	5	15	14	6.4	3.5--6
M16×1.5	PG-09	16	11	9	5	15	16	8.6	4--8
M18×1.5	PG-11	17.9	13	9	5	18	18	10.7	5--10
M20×1.5	PG-13.5	20.2	15	9	5	20	19	13.3	6--12
M22×1.5	PG-16	22	17	11	5	20	19	14.3	10--14
M24×1.5	PG-19	24	19	11	5	22	21	15.5	12--15
M27×1.5	PG-21	26.9	21.8	11	6	24	22	16.7	13--18
M30×1.5	PG-24	29.8	24	13	7	24	24	19.2	15--22
M30×1.5	PG-25	29.8	24	13	7	24	24	19.2	15--22
M32×1.5	PG-27	29.8	24	13	7	24	24	19.2	15--22
M36×1.5	PG-29	36	28	13	7	25	24	24.8	18--25
M48×1.5	PG-36	45.7	39	15	8	32	27	30.7	22--32
M53×1.5	PG-42	54	46	15	8	33	29	35.6	30--38
M58×1.5	PG-48	59	51	16	8	36	30	41.4	34--44
M70×1.5	PG-63	71	63.5	28	9	45	44	55	42--54
