• Model NO.：FTKS-1805-16F
• Item Name：IP65 16 Port ABS Outdoor FTTH Terminal Box
• Work Temperature：Relative Humidity Is Less Than 85% (+30 C)
• Atmospheric Pressure：70kpa~106kpa
• Insert Loss：Less Than 0.2dB
• Upc Return Loss：More Than 50dB
• APC Return Loss：More Than 60dB
• Insert and Pull out Life：More Than 1000 Times
• Dimension：292mm*218mm*83mm
• Installation Dimension：154mm*82mm
• Material：ABS or PC
• Transport Package：Plastic Bag+Standard Carton
• Specification：292mm*218mm*83mm
• Trademark：TAKFLY
• Origin：Shenzhen, China
• Production Capacity：500, 0000

Basic Info.

Model NO. FTKS-1805-16F Item Name IP65 16 Port ABS Outdoor FTTH Terminal Box Work Temperature Relative Humidity Is Less Than 85% (+30 C) Atmospheric Pressure 70kpa~106kpa Insert Loss Less Than 0.2dB Upc Return Loss More Than 50dB APC Return Loss More Than 60dB Insert and Pull out Life More Than 1000 Times Dimension 292mm*218mm*83mm Installation Dimension 154mm*82mm Material ABS or PC Transport Package Plastic Bag+Standard Carton Specification 292mm*218mm*83mm Trademark TAKFLY Origin Shenzhen, China Production Capacity 500, 0000

Product Description

Unloaded IP65 16 port ABS outdoor FTTH Terminal Box

1.Description

Fiber Optic termination box, is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system and are mainly applied in FTTH field, ODN solution . It can distribute, lead in, protect the fiber or cable. The material is ABS, or ABS+ PC and the last one is stronger than the former. According to box size, termination box can be divided into two types: plastic termination box and the desk box.

Plastic termination box, applied in outdoor environment, is bigger than desk box. Users can put PLC splitters, LGX splitter, CWDM/DWDM (ABS type).In other words, plastic termination box can not only be used as distribution box, but can also divided optics. Normally, less than 12 cores, the splitter is in mini-type; more than 24 cores, the splitter or CWDM is box-type or mini-type. The size of 2, 4, 6 cores box is similar with each other.

Desk box, is mainly used in indoor environment. When the residents move in a new house, they can be convenient to use fiber. The cores are 1, 2, 4. The material is ABS+PC.

2.Features

1.Clamping for feeder cable and drop cable, fiber splicing, fixation,storage, distribution...etc all in one;
2.Suitable for SC and LC duplex adaptor and pigtail;
3.Easy to operate;
4.Total enclosed structure, be in nice shape;
5.Protects and manages cable effectively;
6.Secured with anti-theft locking mechanism;
7.Standard size, light weight;
8.Wall and pole mountable (accessories optional);
9.Suitable for both outdoor and indoor use;
10.High quality PC +ABS material;
11.Good properties of dust, and moisture proofing,IP65;

3.Application

1.Telecommunication subscriber loop;
2.Fiber to the home(FTTH);
3.FTTHLAN&WAN;

4.Specification


Material	ABS or plastic
Accommodate item	1x4,1x8,1X16,2x4,2x8 & 2x16 PLC splitter
Appication	Outdoor or indoor using, waterproof
Waterproof index	IP65
Cable capacity	Up to 16 FTTH drops
Box type	wall mounting and pole mounting
Work Temperature	-40 C ~+85 C
Relative Humidity	≤ 85% (+30 C)
Atmospheric Pressure	70Kpa~106Kpa
Insert Loss	≤ 0.2dB
UPC Return Loss	≥ 50dB
APC Return Loss	≥ 60dB
Insert and Pull out Life	≥ 1000 times
Insulation	The grounding device is insulated with the Termination box, IR ≥1000m (direct current)
Withstand Voltage	Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current)
Dimension	292mm*218mm*83mm
Installation Dimension	154mm*82mm


5.Company Information

Takfly, established in 2000, has been manufacturing and exporting fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. and goods have passed RoHS, CE, FCC, REACH, EN50575, ISO9001, etc.

So far, Our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project. In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange and Ericsson. All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price item.

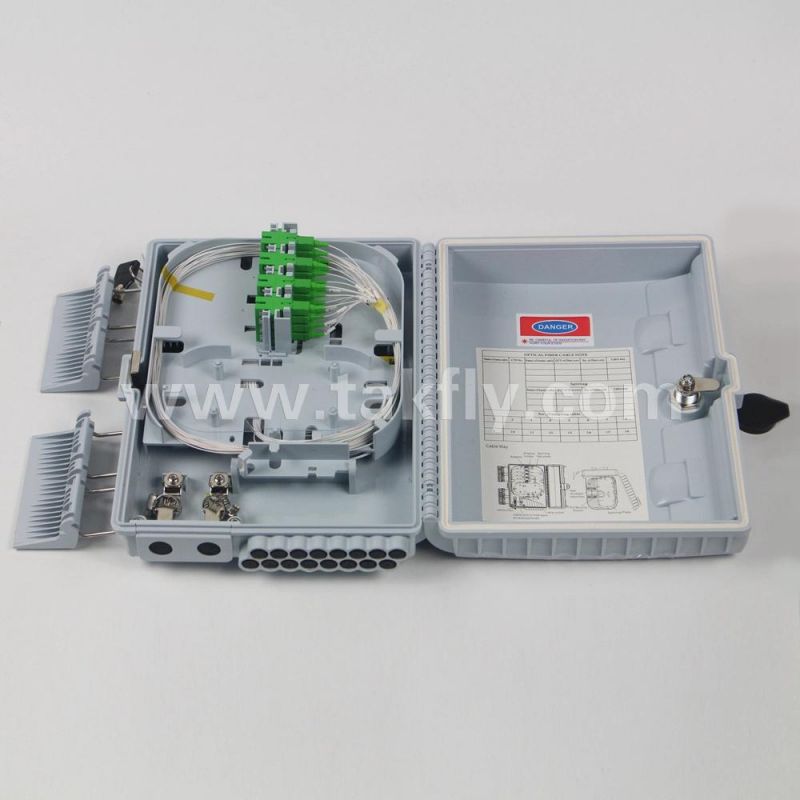

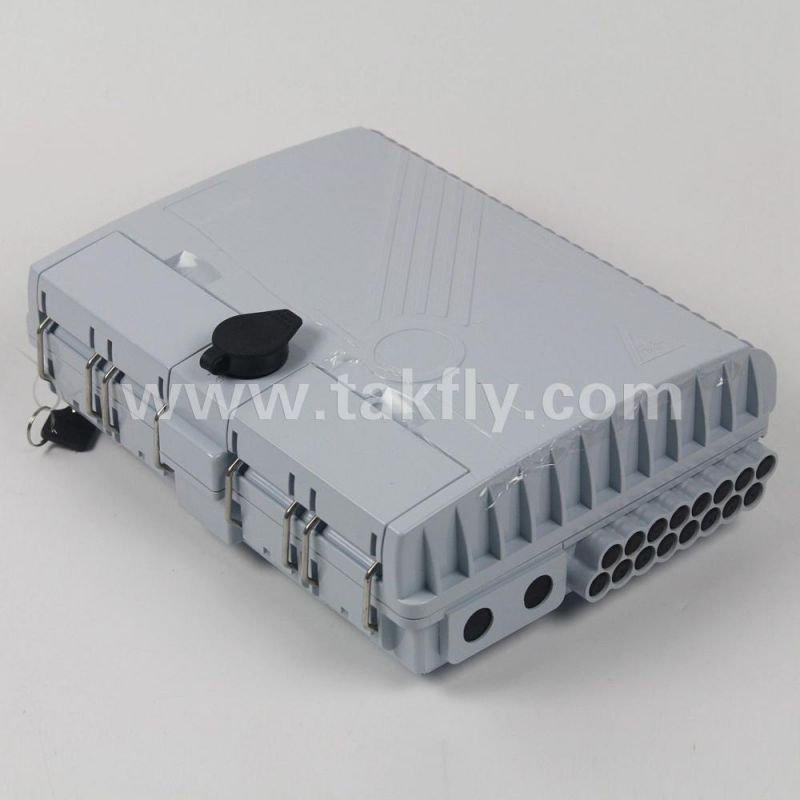

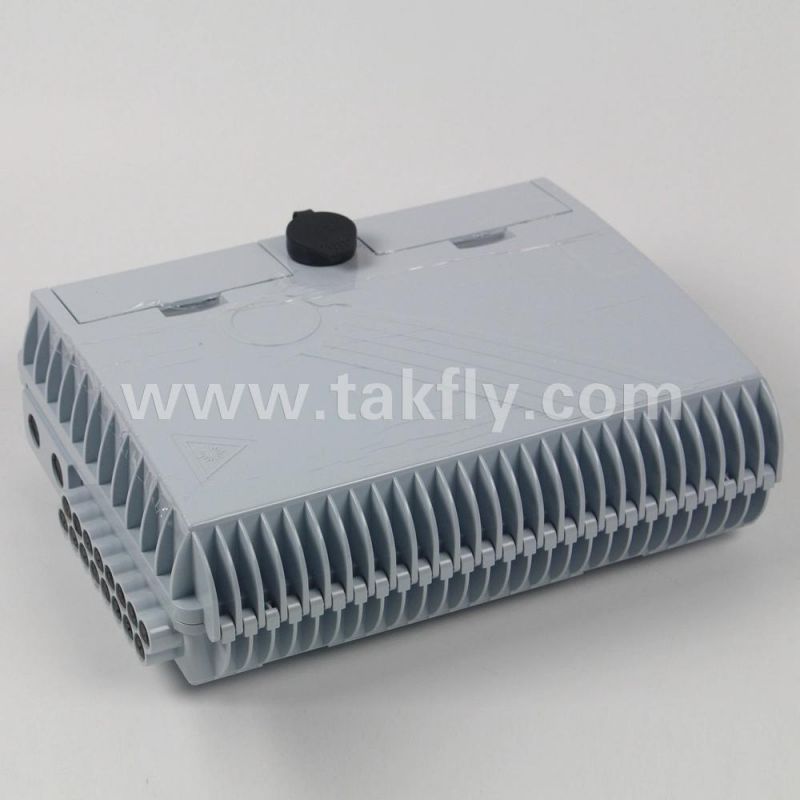

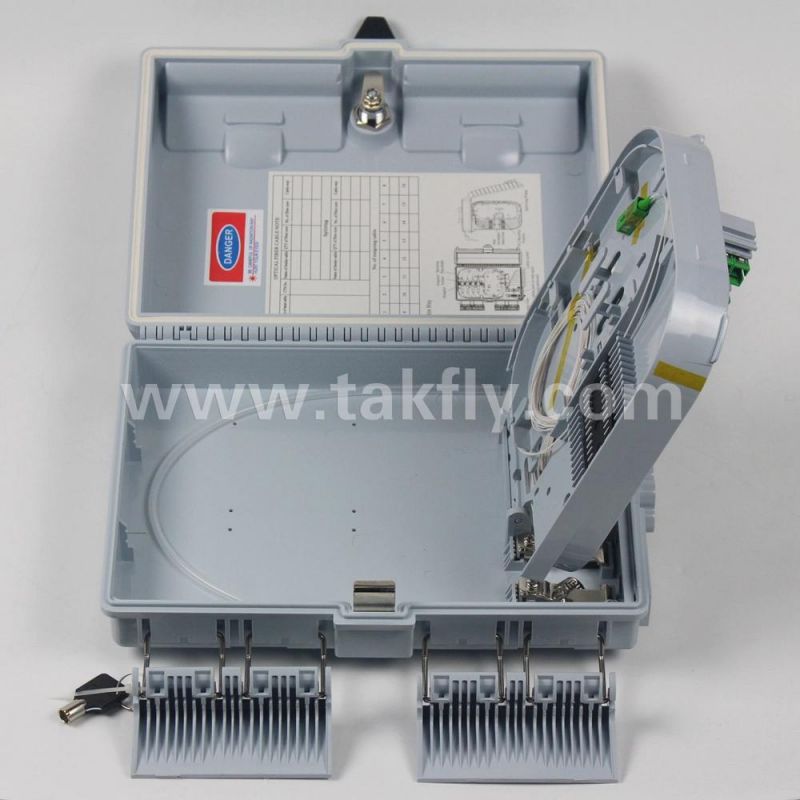

6.Item and company images:







7.Why choose Takfly?

Service

1.Customer's logo: Acceptable;
2.General inspection on fixing before packing;
3.Third party inspection: Acceptable;

Quality Control

All products must go through five checks before manufacturing process;
1.Material incoming inspection before production;
2.Full check after every individual process finished;
3.Full check after production half-done;
4.Full check before packing;
5.Spots check after production packed before shipping;

Advantage

1.15 years experience in manufacturing fiber optic products;
2.Availability of R & D with more than 10 engineers;
3.Available of design and making mold with special molding house;
4.High quality, attractive price and fast delivery(2-7days);
5.OEM, ODM customer designs are also welcomed;
6.More than 200 workers;
7.Excellent service;

Delivery

1.Packing: Plastic bag& carton, Neutral packing or as your required;
2.Sample time: 1-3 days after confirm;
3.Order lead time: 2-7working days depend on quantity and products;
4.Shipping port: Shenzhen China or HK;
5.Shipping term: EXW or FOB;

Shipping

1.Once confirmed the order, and payment sent after finishing goods;
2.Goods will be sent within 7 days with the fast, reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc;
3.Please make sure your postal address is correct. Any lost and mistakes because  of wrong address are not supplier's responsibility;
4.Please do not bid if you disagree with the shipping and handling charge;

Welcome to your trial order!!!  If you need more technical support, pls do not hesitate to contact us.
