• Model NO.：MPO
• Model：MPO Fiber Cable
• Application：Datacent Backbone Cabling
• Capacity：12-144
• Working Temperature：-20°c~+60°c
• MOQ：1 PCS
• Transport Package：1PCS,Carton
• Specification：1U
• Trademark：SOFTEL
• Origin：China
• HS Code：8517622990
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. MPO Model MPO Fiber Cable Application Datacent Backbone Cabling Capacity 12-144 Working Temperature -20°c~+60°c MOQ 1 PCS Transport Package 1PCS/Carton Specification 1U Trademark SOFTEL Origin China HS Code 8517622990 Production Capacity 1000PCS/Week

Product Description

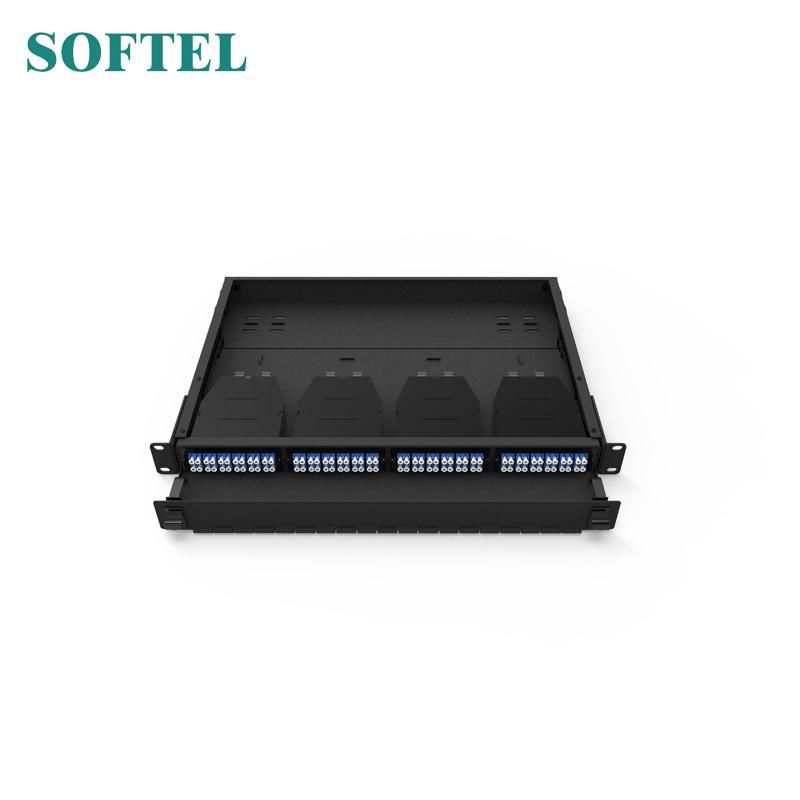

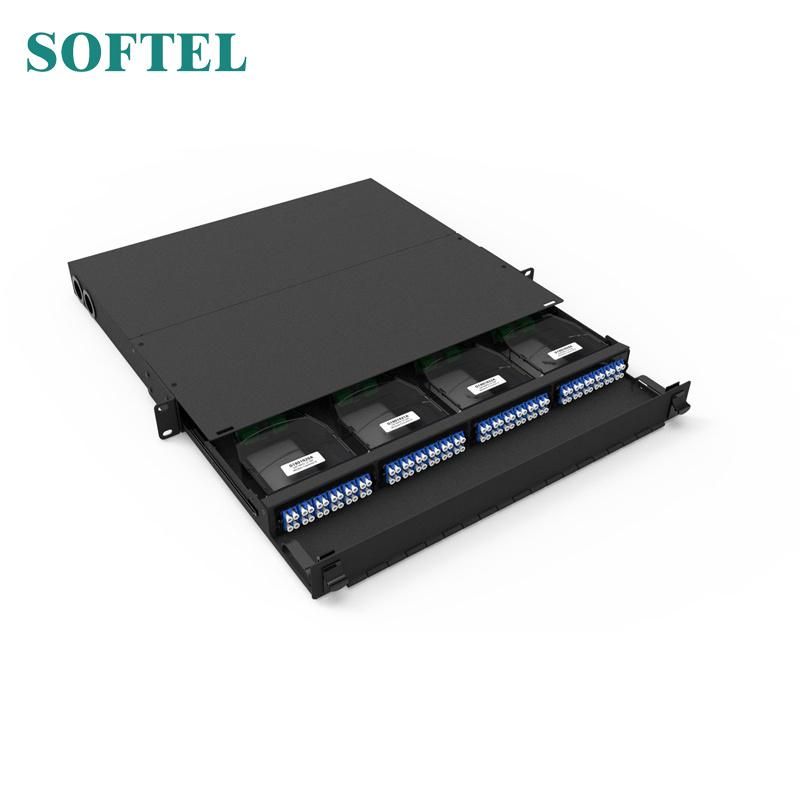

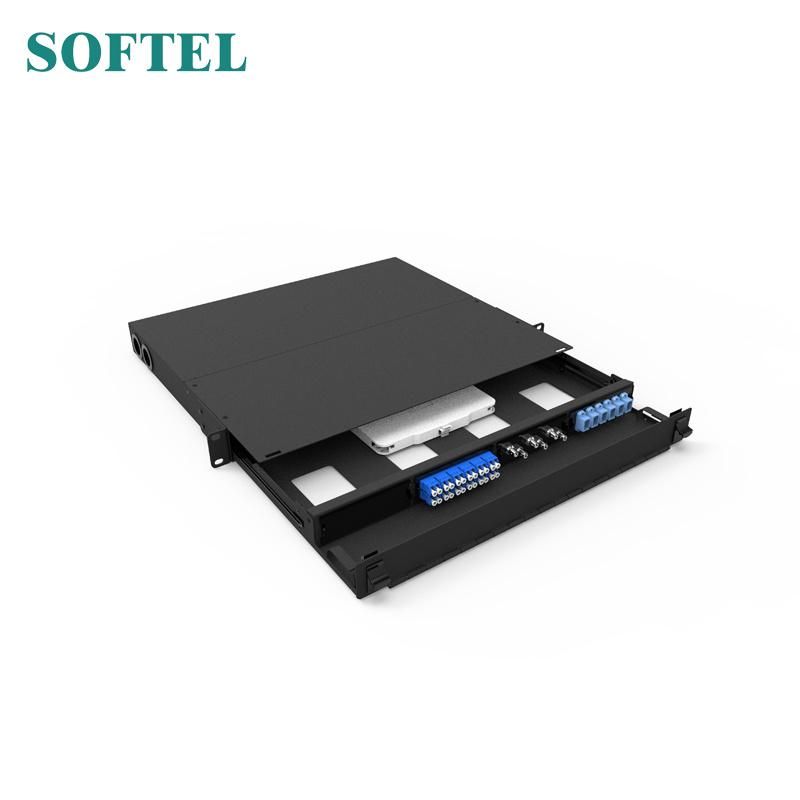

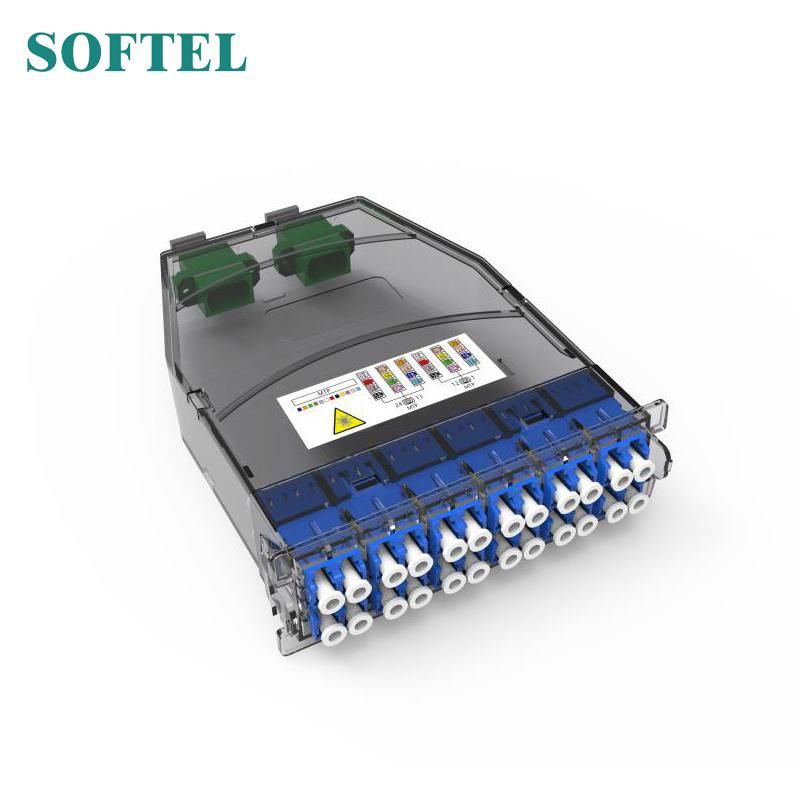

MTP/MPO to LC 12F 1U Patch Panel with 3 MPO cassette


MPO Pre-terminated cabling system solution

Custom made for you by SOFTEL. It is custom made for your datacenter and other high-end cabling solution with pre-termination MPO.

SOFTEL MPO adopts Corning CLearCurve series OM3/OM4 fiber cable, plus the connectors from US Connector MTP products. All the production is done in SOFTEL factory facility to ensure the system performance and quality.

Modular and snapping fit design, which offer great convenience to installers at the site for installations as well as future maintenances and services. With the universal system and MPO interface, it will provide trouble-free connection between fiber cable and equipments as well as ensure the channel has the best flexibility, compatibility and reliability.

Product line construction

SOFTEL pre-terminated MPO series offers the solution from trunk cables to extended trunk cables, to hybrid trunk cables, to cassette modules, to MPO adapter panels, to direct patch panels, to patch panels in both MPO classification of G class(normal class) and L class(super low loss).

1. Ideal for high density datacenter application, choice from 12 to 144-fiber cable.
2. Adopt MTP/MPO connectors single 12-fiber push/pull connector.
3. Custom made cable length.
4. Pre-wrapped cable pulling eye provide additional protection to the cable during shipping.
5. Cable distribution protection devise, ensure easy cable laying and neat installation.
6. Pre-terminated cables can take 450N pulling force when installed in the slots.
7. Available in LSZH,OFNR,OFNP, all can be custom made. LC MPO Patch Panel
