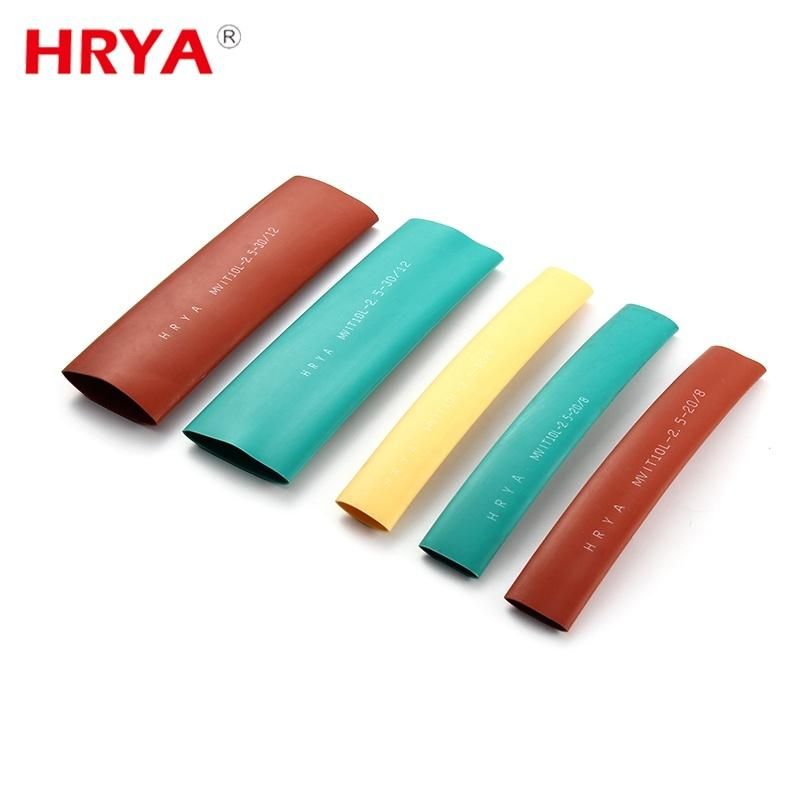

- Name：Heat Shrinkable Busbar Insulating Tube
- Tensile Strength：>=14MPa
- Transport Package：Carton
- Specification：0.5mm-150mm
- Trademark：HRYA
- Origin：Zhejiang, China
- HS Code：391733000
- Production Capacity：100000
| Property | Test Method | Typical Data |
| Operating temperature | UL 224 | -55°C to + 125°C |
| Tensile strength | ASTM D 2671 | >14 MPa |
| Elongation at break | ASTM D 2671 | 400% |
| Longitudinal shrinkage | UL 224 | 0±5% |
| Eccentricity | ASTM D 2671 | <30% |
| Flammability | VW-1 | Pass |
| Dielectric strength | IEC 243 | >20 KV/mm |
| Volume resistance | IEC 93 | 10 14 Ω.cm |
| Copper stability | UL224 | Pass |
| Heat aging / Tensile strength / Ultimate elongation | 158°C/168h | Unaged / >12 MPa / > 350% |
HCA35 35KV 36KV HEAT SHRINKABLE CABLE ACCESSORIES
Heat shrinkable cable accessories for protection of indoor/outdoor cable terminals joint up to 36kv, widely used in electricity supply systems in oil refinery, metallury railway, ports and other area where safety and reliability of electricity supply is vital for daily operation.
Features and Benefits
•Segmented cable will effectively connected together or connected to the terminal appliance.
•Good insulation properties.
•Easy to install, easy to distinguish between cable types.
Shrink Physical Properties
•Operating Shrink Temperature: -55°C to 105°C
•Shrink Temperature: 120°C to 140°C
Technical Details
| Test Item | Test Method | Typical Value |
| Work frequency wet voltage withstand | 35KV/1min | No breakdown and no flashover |
| Work frequency long term voltage withstand | 65KV/4min | No breakdown and no flashover |
| Impact voltage withstand | 250KV/10times | No breakdown |
| D.C voltage withstandv | 156KV/15min | No breakdown and no flashover |
| Part discharge(kv, pc)v | 39,≤20 | 39,4 |
Product Selection
| Product Code | Name | Product Code | Name | For Cable mm² |
| NRSY35-3/1 | 3-cores indoor termination | NRSY35-1/1 | 1-cores indoor termination | 25-50 |
| NRSY35-3/2 | 3-cores indoor termination | NRSY35-1/2 | 1-cores indoor termination | 70-120 |
| NRSY35-3/3 | 3-cores indoor termination | NRSY35-1/3 | 1-cores indoor termination | 150-240 |
| NRSY35-3/4 | 3-cores indoor termination | NRSY35-1/4 | 1-cores indoor termination | 300-400 |
| WRSY35-3/1 | 3-cores outdoor termination | WRSY35-1/1 | 1-cores outdoor termination | 25-50 |
| WRSY35-3/2 | 3-cores outdoor termination | WRSY35-1/2 | 1-cores outdoor termination | 70-120 |
| WRSY35-3/3 | 3-cores outdoor termination | WRSY35-1/3 | 1-cores outdoor termination | 150-240 |
| WRSY35-3/4 | 3-cores outdoor termination | WRSY35-1/4 | 1-cores outdoor termination | 300-400 |
| JRSY35-3/1 | 3-cores outdoor joints | JRSY35-1/1 | 1-cores outdoor joints | 25-50 |
| JRSY35-3/2 | 3-cores outdoor joints | JRSY35-1/2 | 1-cores outdoor joints | 70-120 |
| JRSY35-3/3 | 3-cores outdoor joints | JRSY35-1/3 | 1-cores outdoor joints | 150-240 |
| JRSY35-3/4 | 3-cores outdoor joints | JRSY35-1/4 | 1-cores outdoor joints | 300-400 |
