Topele EMT Steel Set Screw Connector with, W/O Plastic Throat

TOPELE ENTERPRISE CO., LTD.
  • Color：Silver
  • Surface Treatment：Galvanised
  • Application：Bond EMT to a Box or Enclosure
  • Material：Steel
  • Certification：UL No.E343475
  • Transport Package：Carton Box + Packing Belt

Base Info

  • Model NO.：SSCN
  • Trademark：TOPELE
  • Origin：China
  • HS Code：7307990000
  • Production Capacity：100000 PCS Per Month

Description

Topele EMT Steel Set Screw Connector with, W/O Plastic Throat

Item No.Trade SizeDim A(inch)Dim B(inch)SSCN-50S1/2''1.4520.722SSCN-75S3/4''1.5250.961SSCN-100S1''1.6251.185SSCN-125S1-1/4''2.2501.541SSCN-150S1-1/2''2.5201.785SSCN-200S2''2.7602.217SSCN-250S2-1/2''3.3152.818SSCN-300S3''3.7503.550SSCN-400S4''4.1854.550 Topele EMT Steel Set Screw Connector with, W/O Plastic ThroatTOPELE EMT Insulated Steel Set Screw Connector is designed to effectively bond EMT conduit to steel outlet boxes , load centers and other metal enclosures. The main body and locknut is made with steel for strength and the screw is made from zinc-plated steel.A whole have excellent corrosion protection.Plastic throat provides stronger sealing.

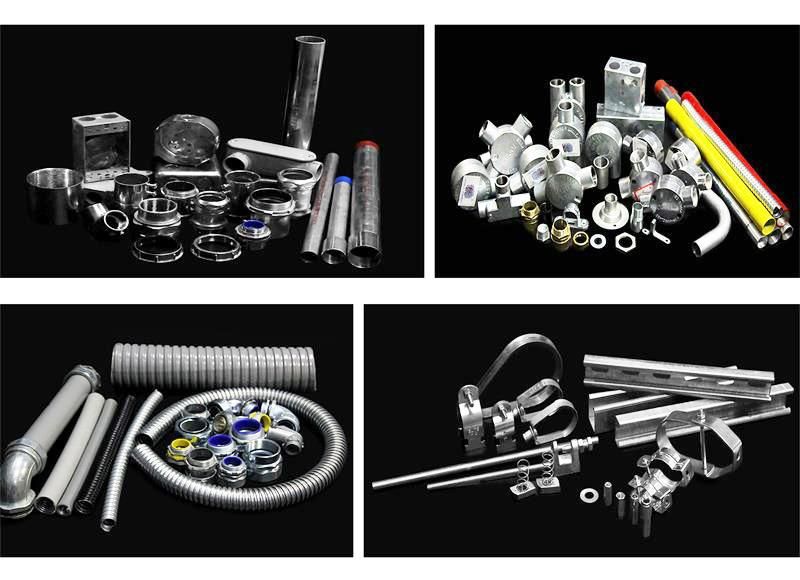

A Range Of Products:
Topele EMT Steel Set Screw Connector with, W/O Plastic Throat




Topele EMT Steel Set Screw Connector with, W/O Plastic ThroatTopele EMT Steel Set Screw Connector with, W/O Plastic ThroatTopele EMT Steel Set Screw Connector with, W/O Plastic ThroatTopele EMT Steel Set Screw Connector with, W/O Plastic ThroatTopele EMT Steel Set Screw Connector with, W/O Plastic Throat
