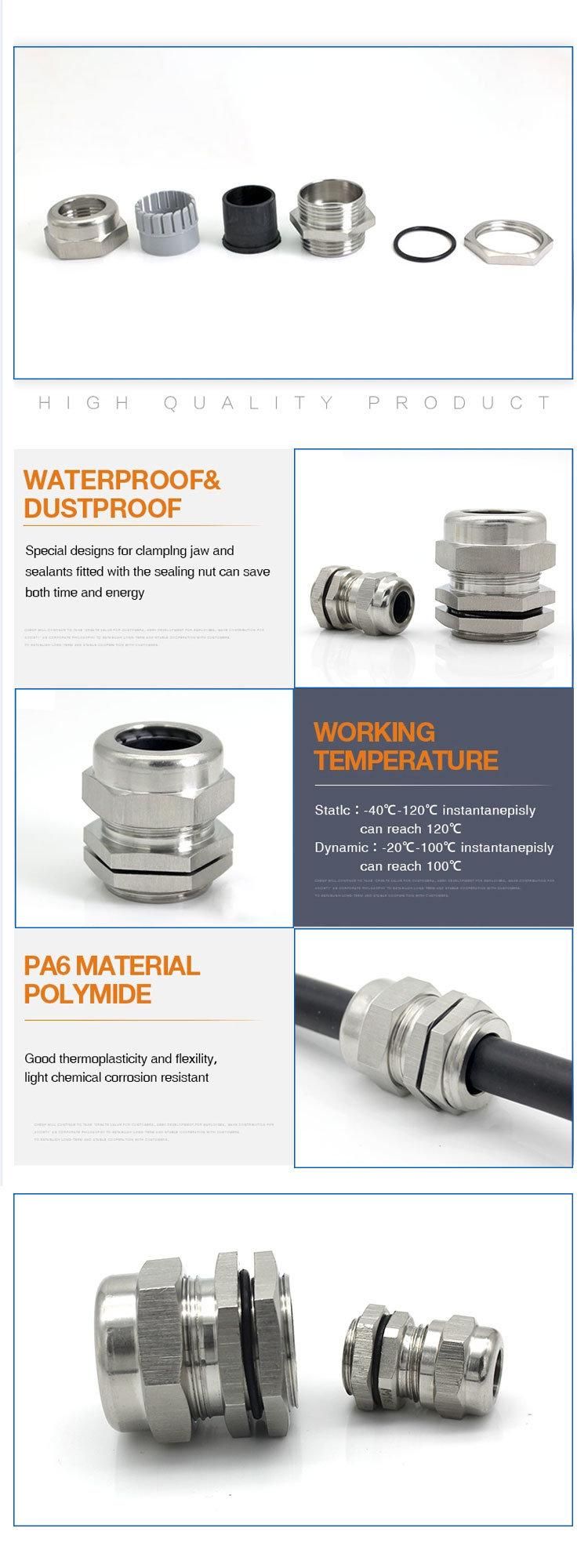

IP68 Waterproof M16 Stainless Steel Gland Metal Brass Cable Gland
Yueqing Jixiang Connector Co., Ltd.- Certification：RoHS, ISO, CE
- Surface Treatment：Electroplating
- Color：Metallic Color
- IP Rating：IP68
- Material：Brass
- Type：Straight Head
Base Info
- Model NO.：M18
- Seal Ring：NBR
- Sealing Insert：NBR
- Benefit：Free Samples
- Function：Protect Wires Safely
- Customization：Thread Can Be Increased
- Accessories：Locknut, O-Ring
- Transport Package：as Standard Carton
- Specification：M8-M18
- Trademark：Jixiang
- Origin：Zhejiang Province, China
- HS Code：8547901000
- Production Capacity：5000 PCS,Week
Description
Cable Gland ParametersThread Thread AG Cable range
(mm) Thread O.D
(mm) Mounting Hole
Diamter (mm) Thread Length
GL(mm) Spanner size
(mm) Metric thread M8x1 2-5 8 8-8.2 5 12 M10x1 3-6.5 10 10-10.2 7 14 M12x1.5 3-6.5 12 12-12.2 7 14 M14x1.5 4-8 14 14-14.2 7 17 M16x1.5 4-8 16 16-16.2 8 18 M18x1.5 5-10 18 18-18.2 8 20 ***** ***** ***** ***** ***** ***** M100x2 78-84 100 100-100.2 15 110 PG thread PG7 3-6.5 12.5 12.5-12.7 7 14 PG9 4-8 15.2 15.2-15.4 8 18 PG11 5-10 18.6 18.6-18.8 8 20/21 PG13.5 6-12 20.4 20.4-20.6 8 22 ***** ***** ***** ***** ***** ***** PG63 42-52 72 72-72.2 15 78 G threadNPT thread NPT1/4 3-6.5 13.6 13.6-13.8 7 14 NPT3/8 4-8 17 17-17.2 8 18 NPT1/2 6-12 21.2 21.2-21.4 8 22 ***** ***** ***** ***** ***** ***** NPT3 65-70 88.6 88.6-88.8 15 98 More size, kindly contact for further communication( we also provide customization service)..
(mm)
(mm)
Diamter (mm)
GL(mm)
(mm)
