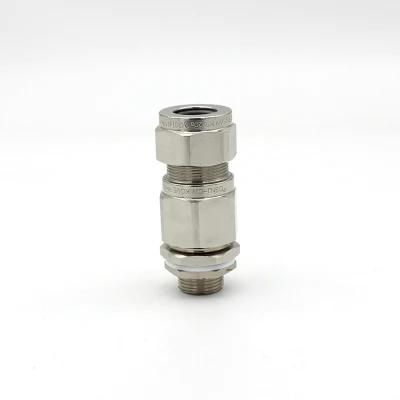

Ex Clamp Sealing Joint Gland Jx4 Series

Yueqing Jixiang Connector Co., Ltd.
  • Certification：RoHS, ISO, CE
  • Surface Treatment：Brass with Nickle Plated
  • Color：Metallic
  • IP Rating：IP66
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：G1,2-G4
  • Claw：PA
  • Transport Package：Standard Export Package
  • Specification：36*26*19
  • Trademark：Jixiang
  • Origin：Zhejiang
  • HS Code：8547901000
  • Production Capacity：1000000piece,Year

Description

Ex Clamp Sealing Joint JX4 - G Thread

Code

A End Pipe Thread

Cable Range (mm)

Length C (mm)

JX-4-EX-10

G1/2

7-10

63

JX-4-EX-14

G3/4

9-14

64

JX-4-EX-18

G1

12-18

74

JX-4-EX-26

G1 1/4

15-26

84

JX-4-EX-30

G1 1/2

18-30

86

JX-4-EX-42

G2

25-42

86

JX-4-EX-55

G2 1/2

29-55

100

JX-4-EX-65

G3

29-65

100

JX-4-EX-80

G4

41-80

100

More size information, kindly contact us directly.. We provide customization service !
