• Model NO.：NL-AAAC
• Transport Package：50PCS,Carton
• Specification：CE, RoHS, SGS, ISO
• Trademark：Powtech
• Origin：China
• HS Code：73269000
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. NL-AAAC Transport Package 50PCS/Carton Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 73269000 Production Capacity 1000PCS/Day

Product Description

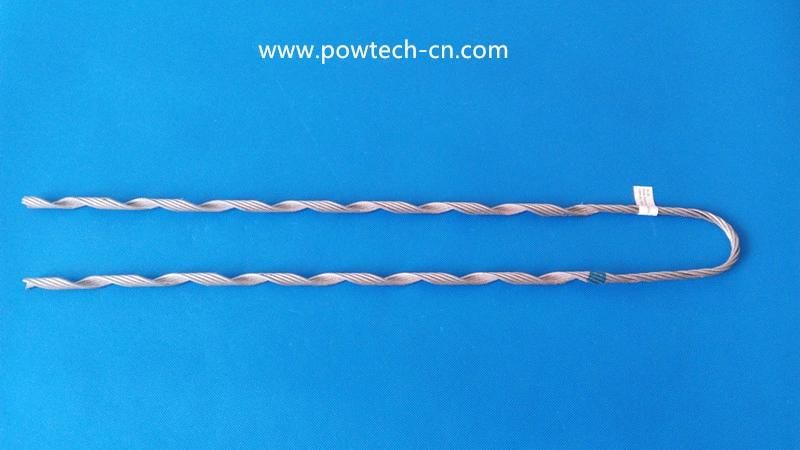

Preformed Guy Grips For AAAC Conductor



Description:

The guy-grip dead end clamp for conductor can be applied to bear strain on overhead bared or
insulated covered conductors in transmission & distribution lines. It's the substitutes of the traditional dead
end clamps,such as bolted type, compression type and wedge type.

Technical data sheet:

Cat. No.	Conductor Range (mm)	Applicable conductor size (AAAC), mm2	Applied length (mm)	Units per Carton (pcs)	Weight (kg)	Color Code
NL-16/LJ	4.62~5.16	16	406	100	0.1	Blue
NL-25/LJ	5.80~6.53	25	444	100	0.1	Orange
NL-35/LJ	7.35~8.26	35	622	100	0.2	Red
NL-50/LJ	8.27~9.25	50	685	100	0.2	Green
NL-70/LJ	10.40~11.68	70	736	100	0.4	Blue
NL-95/LJ	11.69~13.11	95	800	100	0.4	Orange
NL-120/LJ	13.12~14.66	120	876	100	0.6	Red
NL-150/LJ	14.67~16.59	150	889	50	0.8	Black
NL-185/LJ	16.60~18.77	185	1016	50	1.1	Green
NL-210/LJ	16.60~18.77	210	1016	50	1.1	Green
NL-240/LJ	18.78~21.26	240	1155	20	1.7	Orange
NL-300/LJ	21.27~24.05	300	1270	20	2.3	Blue
NL-400/LJ	24.06~27.20	400	1422	10	3.0	Brown
NL-500/LJ	27.21~30.78	500	1651	10	4.9	Orange

Installation Guide:

Certificate:





Advantages:

Reliability
Powtech has been engaged in designing and manufacturing ADSS/OPGW cable,Cable accessories nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech is reliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.

Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.

Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than our competitors.
We promise that all products from Powtech are the most affordable in the industry.

Why Choose Us?

1.Strict quality control system

2.Factory direct-sales,Lower purchasing cost

3.Professional,efficient after-sales service,Time and manpower saving

4.Experienced workers team,Advanced technicians,Sophisticated equipment

5.Small trial order/OEM product/artwork is acceptable

6.ADSS/OPGW cable,cable accessories supplier for 20 years from China,ISO certificated


FAQ
