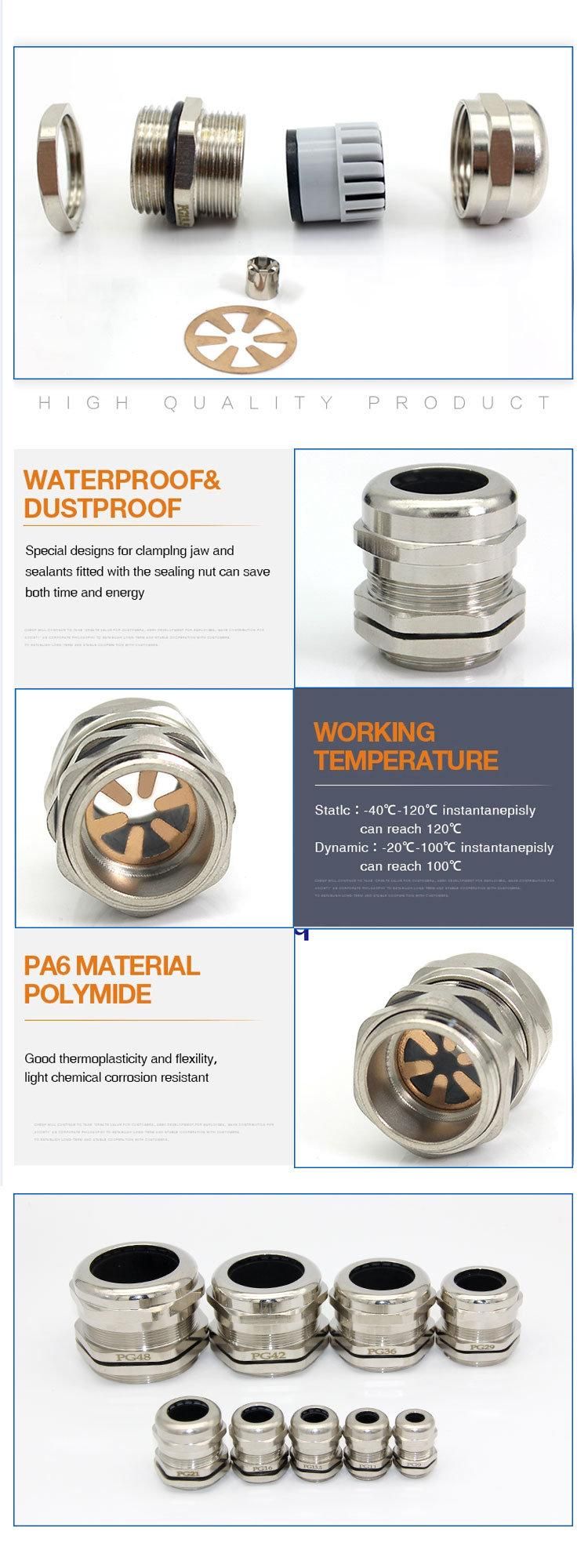

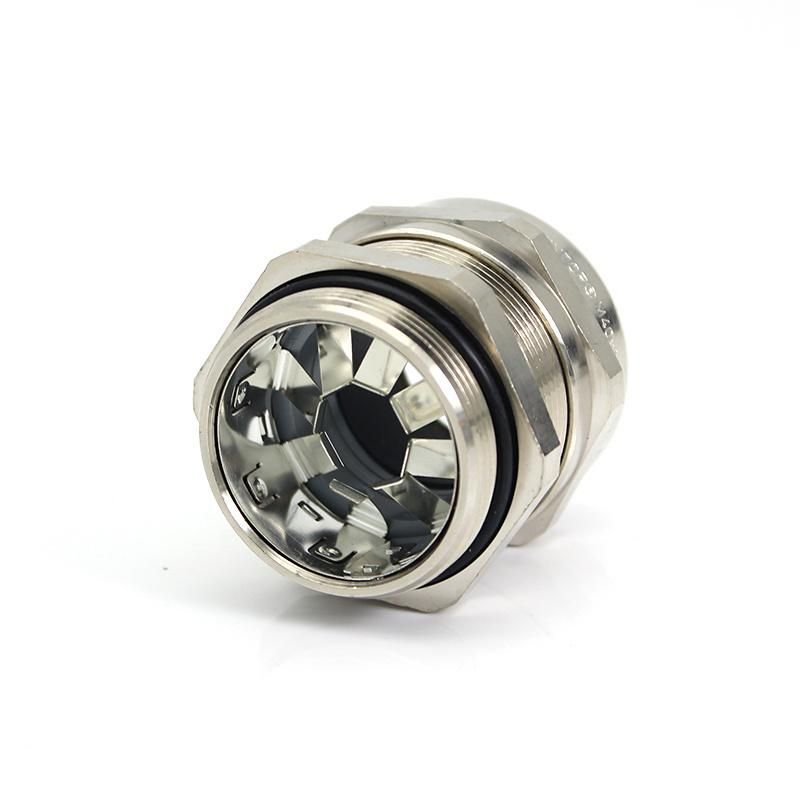

EMC Brass Cable Gland Pg Thread Cable Fitting
Yueqing Jixiang Connector Co., Ltd.- Certification：RoHS, ISO, CE, TUV
- Surface Treatment：Brass with Nickle Plated
- Color：Metallic
- IP Rating：IP68
- Material：Brass
- Type：Straight Head
Base Info
- Model NO.：PG thread
- Claw：PA
- Approvals：IP68, ISO9000, TUV
- Sealing and Sealing Ring：NBR
- Advantages：Free Sample
- Brand Name：Jixiang
- Protection Level：IP68
- Size：M12-M100,Pg7-Pg100
- Transport Package：Standard Export Package
- Specification：36*26*19
- Trademark：Jixiang
- Origin：Zhejiang
- HS Code：8547909000
- Production Capacity：50000PCS,Week
Description
EMC Cable Gland ---D series, Metric threadProduct CodeThread AGCable range(mm)Thread diameter(mm)Board caliber(mm)Thread length GL(mm)Joint length(mm)Wrench diameter (mm)JX-D.M12-EMCM12*1.56.5-31212-12.271914JX-D.M14-EMCM14*1.58-41414-14.271917JX-D.M16-EMCM16*1.58-41616-16.282018JX-D.M18-EMCM18*1.510-51818-18.282120JX-D.M20-EMCM20*1.512-62020-20.282222JX-D.M22-EMCM22*1.514-102222-22.282324JX-D.M24-EMCM24*1.514-102424-24.292524/27JX-D.M25A-EMCM25*1.514-102525-25.292524/27JX-D.M27A-EMCM27*1.518-132727-27.292730JX-D.M28A-EMCM28*1.518-132828-28.292730........................JX-D.M72-EMCM72*252-427272-72.2154265/68JX-D.M75-EMCM75*252-427575-75.2154278JX-D.M80-EMCM80*262-508080-80.2154586/88JX-D.M88-EMCM88*270-608888-88.2154598JX-D.M100-EMCM100*280-70100100-100.21545110
