Steel Galvanized Threaded Bar Mounted Conduit Pipe Clips Clamps

TOPELE ENTERPRISE CO., LTD.
  • Color：Silver
  • IP Rating：IP68
  • Surface Treatment：Galvanised
  • Application：Strut Support System
  • Material：Steel
  • Certification：UL

Base Info

  • Finish：Galvanized
  • Size：1,2", 3,4", 1", 1-1,4", 1-1,2", 2"
  • Type：Conduit Clamp , Pipe Clamp
  • Brand：Topele , OEM
  • Standard：UL
  • Transport Package：Carton
  • Specification：1,2"-4"
  • Trademark：TOPELE, OEM
  • Origin：China
  • Production Capacity：500, 000, 00PCS Per Month

Description

Basic Info.

Finish Galvanized Size 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" Type Conduit Clamp / Pipe Clamp Brand Topele / OEM Standard UL Transport Package Carton Specification 1/2"-4" Trademark TOPELE/ OEM Origin China Production Capacity 500, 000, 00PCS Per Month

Product Description

Steel galvanized Threaded Bar Mounted conduit Pipe Clips Clamps


Description
conduit / pipe Clamp  with or without EPDM

Brand: TOPELE

Raw material: Carbon steel

Finish: Electro-galvanized

Size Range: 1/2" through 8"
Include plastic Anti-lose washer
Add Nuts for side screw for choose
Reinforced or Flat Surface for choose
Unc or BSW Thread Top nuts available
Six Point welding
EPDM Rubber
Other thickness/ Width Available
Steel Galvanized Threaded Bar Mounted Conduit Pipe Clips Clamps
Specification

conduit / pipe Clamp  with or without EPDM

Trade sizeDmmThreadA*Bmm
3/8"15-19M8+M1020*1.5
1/2"20-25M8+M1020*1.5
3/4"26-30M8+M1020*1.5
1"32-36M8+M1020*1.5
11/4"38-43M8+M1020*1.5
11/2"47-51M8+M1020*1.5
 53-58M8+M1020*1.5
2"60-64M8+M1020*1.5
 68-72M8+M1020*1.5
21/2"75-80M8+M1020*1.5/2.0
 80-86M8+M1020*1.5/2.0
3"87-92M8+M1020*1.5/2.0
31/2"94-100M8+M1020*1.5/2.0
 102-114M8+M1020*1.5/2.0
4"110-115M8+M1020*1.5/2.0
 118-125M8+M1020*1.5/2.0
 123-137M8+M1020*1.5/2.0
5"128-145M8+M1020*1.5/2.0
 143-150 M8+M1020*1.5/2.0
6"152-163M8+M1020*1.5/2.0
 160-172M8+M1020*1.5/2.0
 175-184M8+M1020*1.5/2.0
 195-198M8+M1020*1.5/2.0
8"215-217M8+M1020*1.5/2.0



Steel Galvanized Threaded Bar Mounted Conduit Pipe Clips Clamps


Applications:

1.For fastening:Pipe lines,such as heating,sanitary and waste water pipes,to walls,cellings and floors.
2.Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
3.For Suspending Stationary Non-Insulated Copper Tubing Lines
4.Being fasteners for pipe lines such as heating, sanitary and waste water pipes;to walls, ceilings and floors.
5.Side screws are protected against loss during assemble with the help of plastic washers

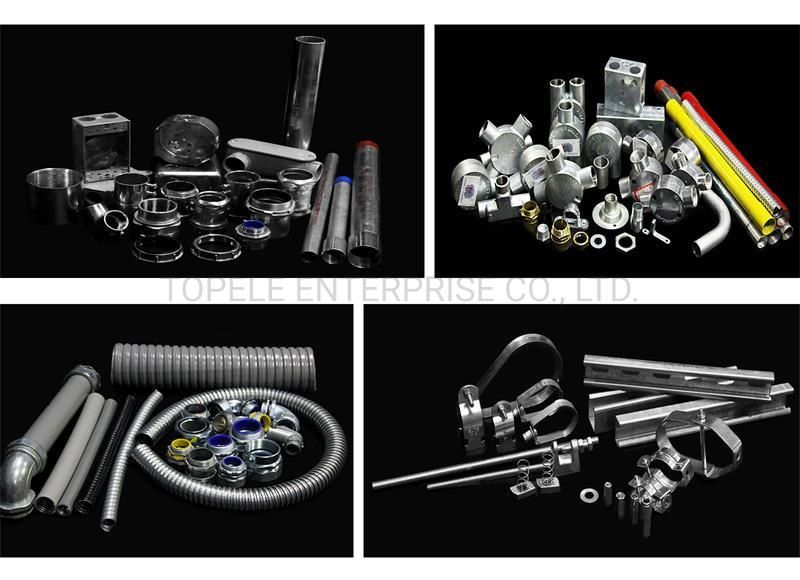

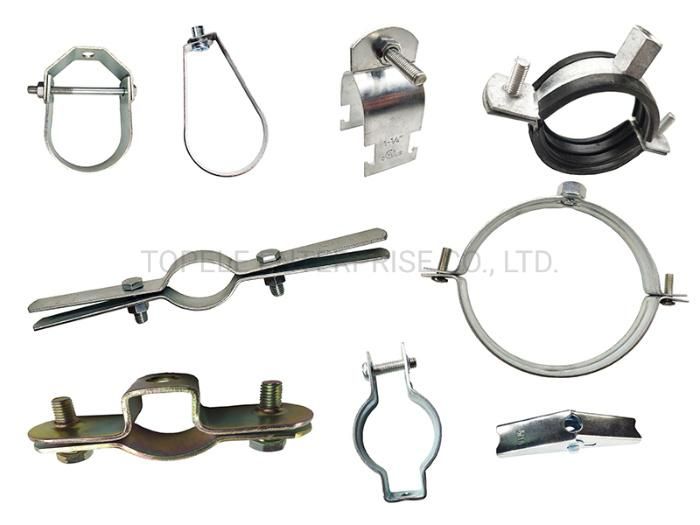

Our products line:
Steel Galvanized Threaded Bar Mounted Conduit Pipe Clips Clamps


Packing:



Steel Galvanized Threaded Bar Mounted Conduit Pipe Clips Clamps


Steel Galvanized Threaded Bar Mounted Conduit Pipe Clips ClampsSteel Galvanized Threaded Bar Mounted Conduit Pipe Clips ClampsSteel Galvanized Threaded Bar Mounted Conduit Pipe Clips Clamps

FAQ

Q: Do you have UL certificate?
A: Yes,most products are UL listed.

Q: Are you manufacture?
A: Yes,we have factory.

Q: How can I request product samples?
A: The samples are free but courier charge will be collected. Please send us samples list and courier account number.

Q: What is your payment terms?
A: 30% T/T deposit,balance against B/L copy

Q: How about the delivery time?
A: Accord to your order list and quantity,mostly delivery in 30days.

Q: Why choose us?
1. We are China Leading supply of Electrical Pipe,Strut Channel and Fittings.
2. Inspected by the Inspection Institution of UL Certification.
3. 100% QC inspection before Shipment.
4. Best Quality & Best Service with Competitive price.
