• Model NO.：JBS
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. JBS Production Capacity 100000PCS/Month

Product Description

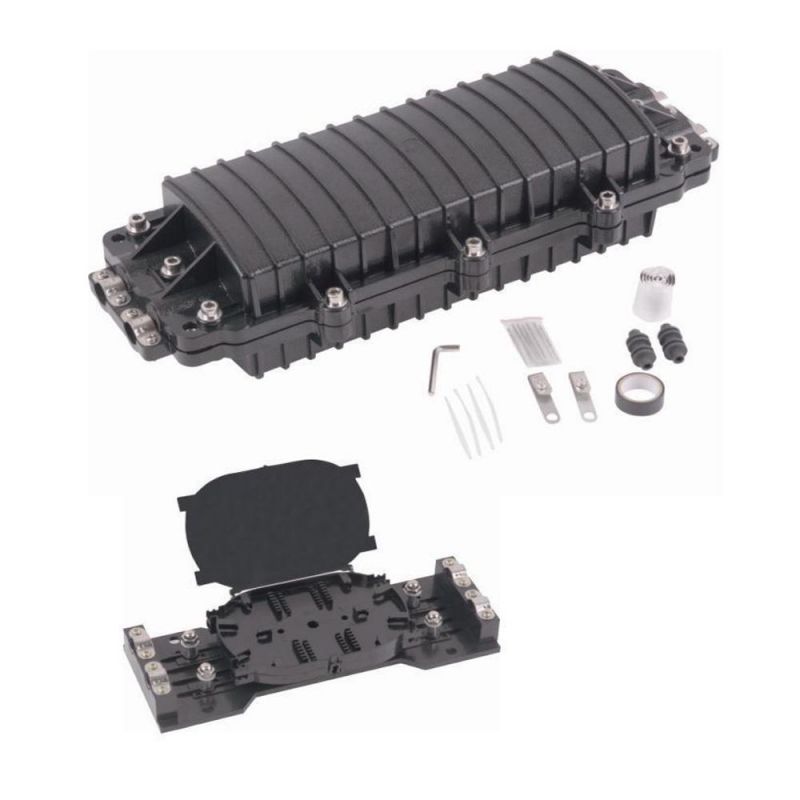

Horizontal fiber optic splice closure


Description:
JBS series fiber optic splice closure protects fiber optic splice while providing fast and easy no-cost, re-entry. It can be installed on aerial, in manholes, ducts and mounted on poles. The closure provides reliable sealing performance, and fiber splicing point protected in a ribbed polypropylene dome that has high mechanical and environmental features. With optional entry ports, the closure is applicable to in-line or mid-span branching method. It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network

Technical Data:


Model	Max capacity	Entrance port	Cable diameter(mm)	Net weight (kg)	Sizes (L*W*H,mm)	Material
JBS0202H	144	2in/2out	Φ7-φ25	1.6	460*185*110	ABS or PC
JBS0303H	144	2in/2out	Φ7-φ25	1.7	460*185*110	ABS or PC
