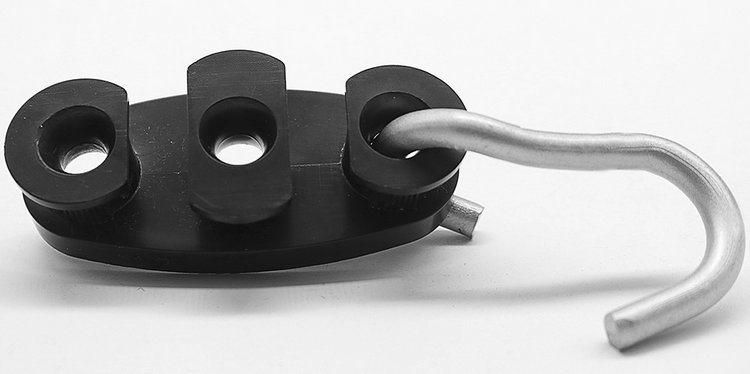

Costa Rica Drop Wire Tensioner Clamp of FTTH Cabling Fitting

Qingdao Powtech Electronics Co., Ltd.
  • Certification：RoHS, ISO, CE
  • Color：Black
  • Surface Treatment：Galvanised
  • Usage：Electrical Appliance
  • Material：Plastic
  • Type：S Type

Base Info

  • Model NO.：F14
  • Name：Tension Clamp
  • Transport Package：Cartons
  • Specification：CE, RoHS, SGS, ISO
  • Trademark：OPTELEC OR OEM
  • Origin：China
  • HS Code：85044020
  • Production Capacity：100000PCS,Month

Description

SizeWeightBreaking force                Plastic tensionersWidth38.1mm(1 1/2 inches)16g1.33KN
 Length76.2mm(3 inches)Wire hookDiameter6.35mm(1/4 inches)30gLength150mmCosta Rica Drop Wire Tensioner Clamp of FTTH Cabling Fitting

1. Tensioner material:The material is ABS plastic (Acrylonitrile-Butadiene-Styrene), black, resistant to ultraviolet light, moisture, salts and temperature changes and do not conduct current.

2. Hook material:
The tensioners is provided with a hot galvanized steel hook, with a minimum zinc deposition of 3.36 grams / dm2.
