• Model NO.：PG13.5
• Fuction：Protect Wires Safely
• Benefit：Free Samples
• Temperature：-40 to 100 Degree
• Claw：PA
• Sealing Ring：PA
• Sealing Rubber：Plastic
• Customization：Increase The Thread Length
• Transport Package：50,100 PCS Per Bag
• Specification：pg type
• Trademark：JIXIANG
• Origin：Zhengjiang Province, Cn
• HS Code：8547901000
• Production Capacity：30000 PCS , Week

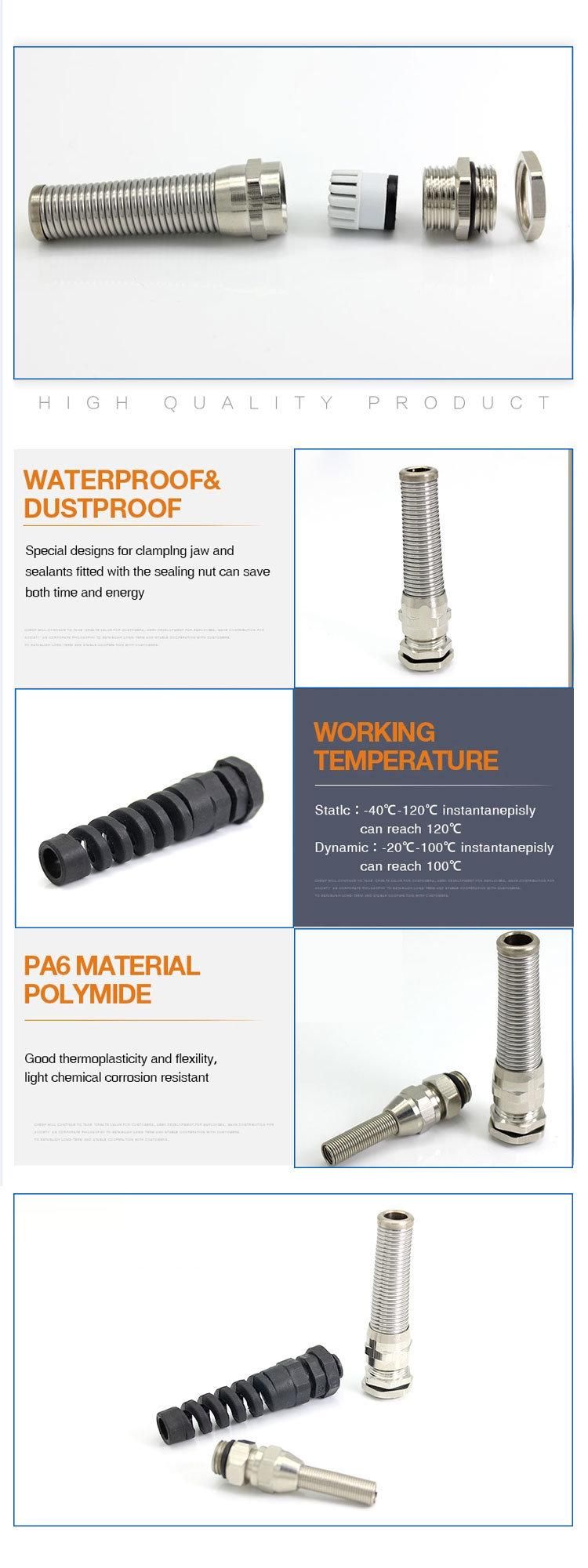

Material: Brass Flexible Cable GlandClaw: PASealing and Sealing Ring: NBRApprovals: ISO9001, CE , ROHSProtection Rate: IP68ColorMetallicTemperature Resistance: -40 Degree to 100 Degree, short time to 120 DegreeFunction: 1. Can be used in flexible metallic conduit or liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.2. Use to positively bond the conduit to a box or enclosure.

Product Code	Thread  AG	Cable range (mm)	Body Height (mm)	Thread length GL (mm)	Spanner Size (mm)
JX-PG7-6.5FL	PG7	3-6.5	53	8	14
JX-PG7-5FL	PG7	2-5	53	8	14
JX-PG9-8FL	PG9	4-8	66	8.2	17
JX-PG9-6FL	PG9	2-6	66	8.2	17
JX-PG11-10FL	PG11	5-10	77	8.6	20
JX-PG11-7FL	PG11	3-7	77	8.6	20
JX-PG13.5-12FL	PG13.5	6.7-12	88	9	22
JX-PG13.5-9FL	PG13.5	5-9	88	9	22
JX-PG16-14FL	PG16	10.2-14	98	10	24
JX-PG16-12FL	PG16	7-12	98	10	24
JX-PG21-18FL	PG21	13-18	111	10	30
JX-PG21-16FL	PG21	9-16	111	10	30
