Outdoor Jointing Kit Termination Kit
ORIENT ELECTRIC INTERNATIONAL GROUP LIMITED- Certification：ISO
- Color：Red
- Material：Rubber
- Type：Heat Shrinkable
Base Info
- HS Code：8547909000
Description

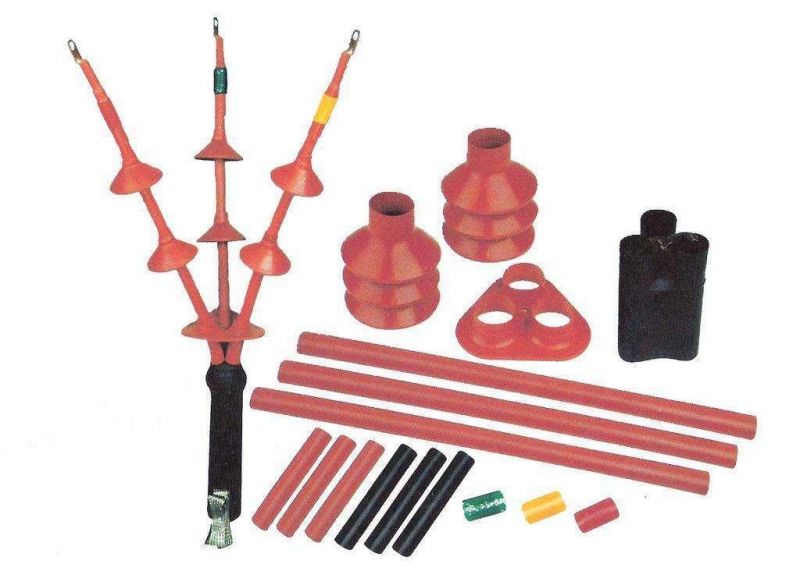

- Cable Termination Type - Heat Shrink
- Termination Location - Outdoor
- Voltage - 11kV/12kV
- Cable Insulation Type - XLPE EPR (Polymeric)
- Number of Cores - 3 Core
- Conductors - 16sqmm, 25sqmm, 35sqmm, 50sqmm, 70sqmm, 95sqmm, 120sqmm, 150sqmm, 185sqmm, 240sqmm, 300sqmm, 400sqmm, 500sqmm
- Heat Shrink Standard Tail Length - 700mm
- Suit 11kV Cables - BS6622, BS7835, BS7870, BS6883, BS7917 & IEC60502-2
11kV cable Termination Testing & Selection
Shrink Polymer Systems test 11kV heat shrink joints and terminations as detailed in CENELEC standards HD 628 S1 and 629.1 S2:2006 encompassing VDE 0278 and IEC 60502.
The following table enables the heat shrink termination kit selection for 3 core outdoor XLPE cables up to 12kV - customised terminations available to suit all types of high voltage polymeric cables cables.
More 11kV Terminations : Single Core Indoor 12kV XLPE | Single Core Outdoor 12kV XLPE
