High Quality Hot DIP Galvanized UL6 Rigid Conduit
Weifang East Pipe Industry Technical Co., Ltd.- Color：Silver Grey
- IP Rating：IP66
- Surface Treatment：Galvanised

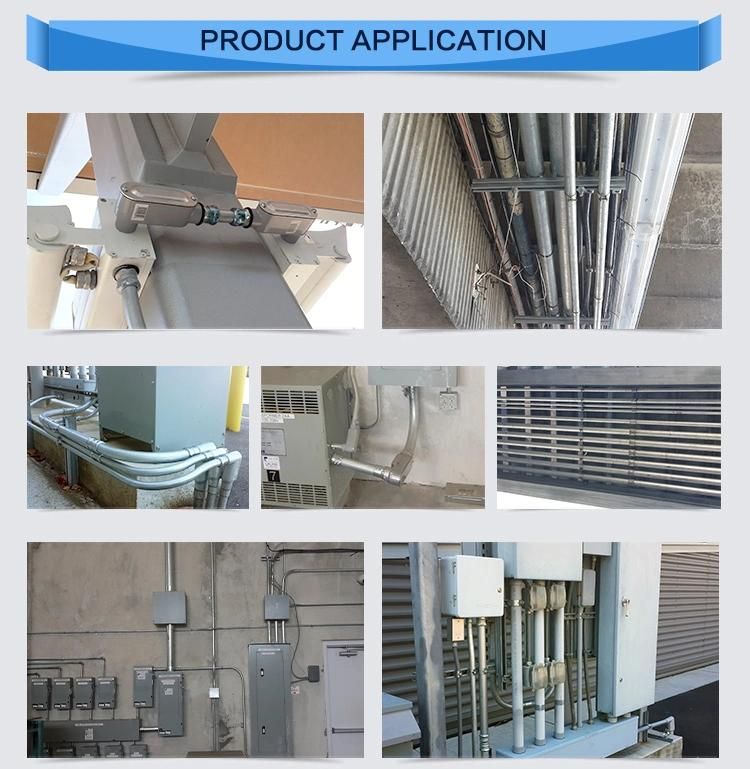

- Application：Building
- Material：Carbon Steel
- Certification：UL
Base Info
- Usage：Wire and Cable Protection
- Thickness：0.104 - 0.266 Inch
- Outer Diameter：0.84 - 6.625 Inch
- Technique：Cold Rolled
- Length：3050mm
- Capacity：5000 Ton,Tons Per Month
- Transport Package：Woodpackage
- Specification：1,2” to 6” inch
- Trademark：eaststeelpipe
- Origin：China
- HS Code：73063090
- Production Capacity：5000 Ton,Tons Per Month
Description
Trade SizeNominal Wt. per 100Ft(30.5M) Nominal Outside Diameter Nominal Wall Thickness U.S. Metric Lbs Kg In. mm In. mm 1/2" 16 82 37.2 0.84 21.3 0.104 2.6 3/4" 21 109 49.44 1.05 26.7 0.107 2.7 1" 27 161 73.03 1.315 33.4 0.126 3.2 1-1/4" 35 218 98.88 1.66 42.2 0.133 3.4 1-1/2" 41 263 119.3 1.9 48.3 0.138 3.5 2" 53 350 158.76 2.375 60.3 0.146 3.7 2-1/2" 63 559 253.56 2.875 73 0.193 4.9 3" 78 727 329.77 3.5 88.9 0.205 5.2 3-1/2" 91 880 399.17 4 101.6 0.215 5.5 4" 103 1030 467.21 4.5 114.3 0.225 5.7 5" 129 1400 635.04 5.563 141.3 0.245 6.2 6" 155 1840 834.62 6.625 168.3 0.266 6.8
Applicable tolerances:
Length: 10Ft (3.05m) ± ¼" (±6.35mm).
Outside Diameter: ½"-2" ±0.015" (±0.38mm); 2½"-4" ±0.025" (±0.64mm); 5"-6" ± 1%
