UL Listed Electrical 90 Degree EMT Conduit Elbow

TOPELE ENTERPRISE CO., LTD.
  • Color：Silver
  • Surface Treatment：Galvanised
  • Application：Couple Two Ends of EMT to Form 45,90 Degree Bend
  • Material：Steel

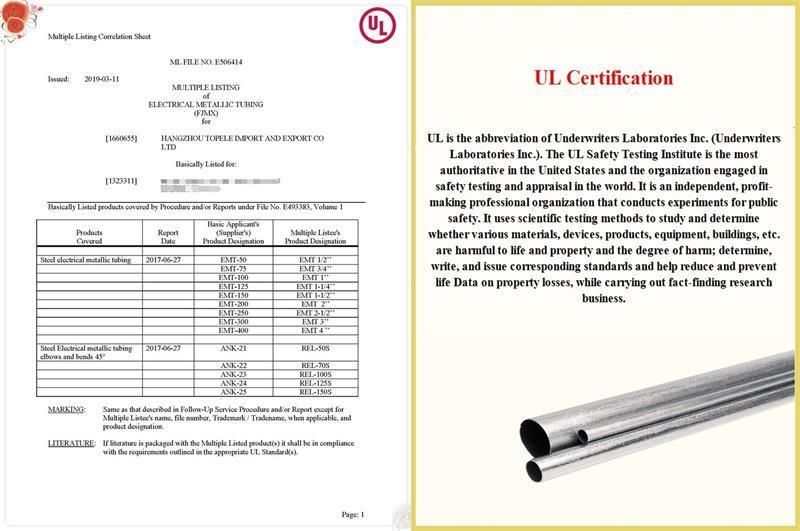

  • Certification：UL No.E506414
  • Transport Package：Woven Bag

Base Info

  • Model NO.：EEL
  • Specification：90,45 Degree
  • Trademark：TOPELE
  • Origin：China
  • HS Code：7307920000
  • Production Capacity：100000 PCS Per Month

Description

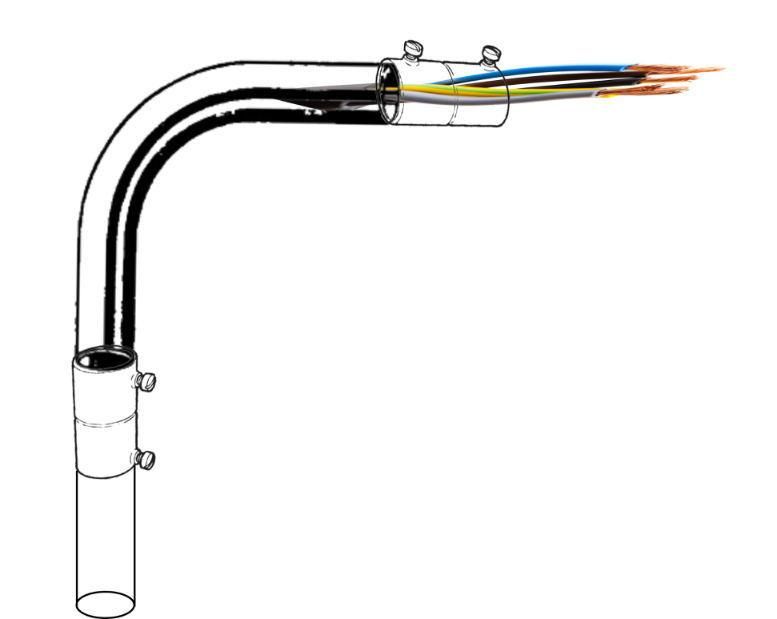

UL Listed Electrical 90 Degree EMT Conduit ElbowItem No.Trade SizeRadius(Inch)Offset(Inch)EEL-50s1/2''4.0006.250EEL-70s3/4''4.5007.000EEL-100s1''5.7509.250EEL-125s1-1/4''7.25010.500EEL-150s1-1/2''8.25012.500EEL-200s2''9.50014.250EEL-250s2-1/2''10.50019.000EEL-300s3''13.00020.000EEL-400s4''16.00026.000UL Listed Electrical 90 Degree EMT Conduit ElbowTOPELE 90 Degree EMT Elbow is be used to connect EMT conduit and change the direction of the run. It's made of galvanized steel for corrosion resistance. It has a large radius to allow easy wire pulling.We have two types of radius(45°/90°) to meet different locataion.

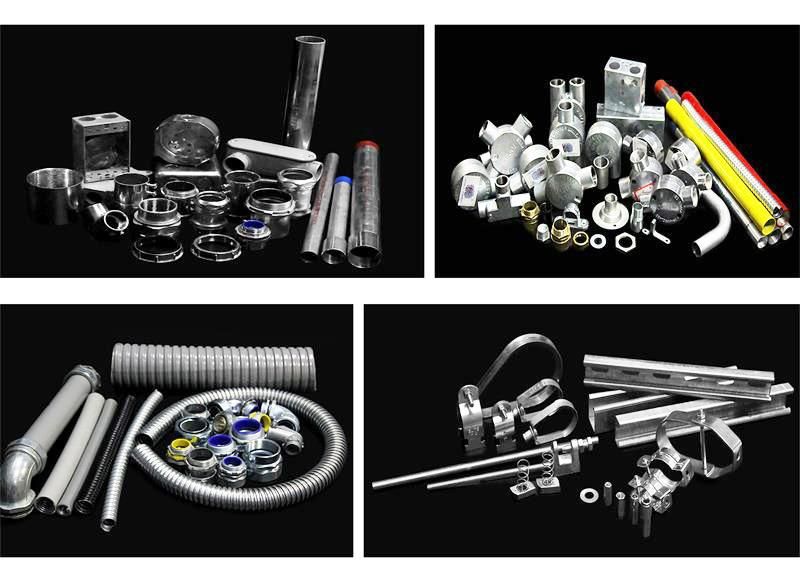

A series of products:
UL Listed Electrical 90 Degree EMT Conduit ElbowUL Listed Electrical 90 Degree EMT Conduit Elbow
