• Model NO.：M12-M100
• Advantage：Free Samples; Special Customized
• Thread Types：M Pg G NPT
• Product Name：Conduit Locknut
• Size：M12-M100
• Customized：Yes
• Transport Package：Standard Export Package
• Specification：36*26*19
• Trademark：Jixiang
• Origin：Zhejiang
• HS Code：7415339000
• Production Capacity：1000000piece,Year

Basic Info.

Model NO. M12-M100 Advantage Free Samples; Special Customized Thread Types M Pg G NPT Product Name Conduit Locknut Size M12-M100 Customized Yes Transport Package Standard Export Package Specification 36*26*19 Trademark Jixiang Origin Zhejiang HS Code 7415339000 Production Capacity 1000000piece/Year

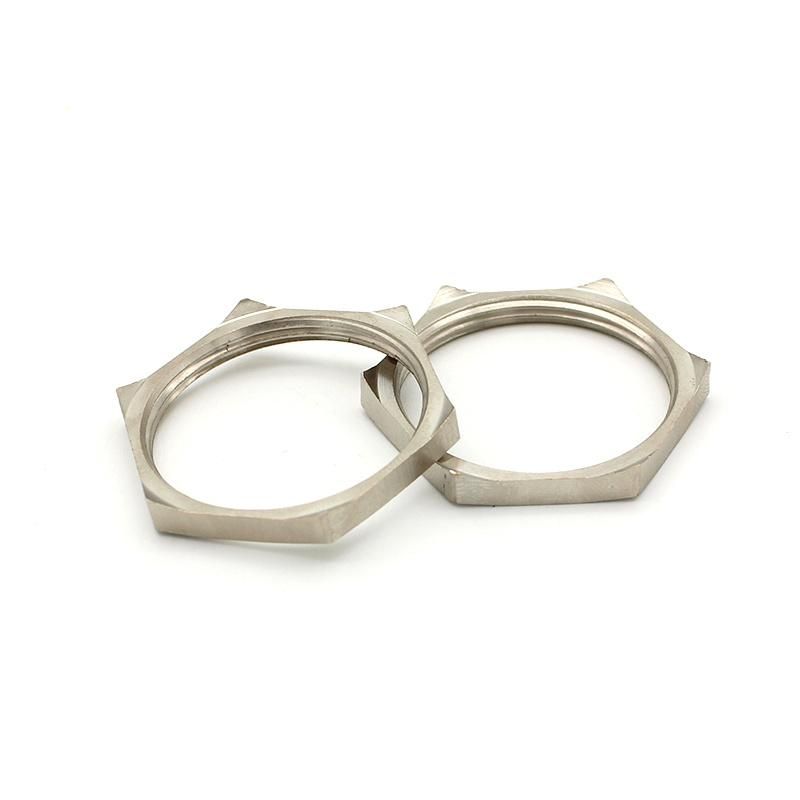

Product Description

Material: Brass,nickel plated


Thread: Metric, PG, G, NPT


Certificate: CE, IP68, ISO90001


Function: For use with most electrical fittings.


Note: Customization is available. Welcome to inquire.

Item	Thread	Thickness (mm)	Spanner size (mm)
JX-M12-ML	M12	3	14
JX-M14-ML	M14	3	17
JX-M16-ML	M16	3	18
JX-M18-ML	M18	3	20
JX-M20-ML	M20	3	22
JX-M22-ML	M22	3.2	24
JX-M24-ML	M24	3.5	27
JX-M25-ML	M25	3.5	27
JX-M27-ML	M27	4	30
JX-M28-ML	M28	4	30
JX-M30-ML	M30	4	32
JX-M32-ML	M32	4	35
JX-M33-ML	M33	4	35
JX-M36-ML	M36	4	40
JX-M37-ML	M37	4	40
JX-M40-ML	M40	4.5	45
JX-M42-ML	M42	5	45
JX-M47-ML	M47	5.5	50
JX-M48-ML	M48	5.5	52
JX-M50-ML	M50	5.5	55
JX-M54-ML	M54	5.5	57
JX-M56-ML	M56	5.5	59
JX-M60-ML	M60	6	64
JX-M63-ML	M63	6	68
JX-M64-ML	M64	6	68
JX-M72-ML	M72	8.5	77
JX-M75-ML	M75	8.5	77
JX-M80-ML	M80	9	88
JX-M88-ML	M88	9	94
JX-M100-ML	M100	9	110
