• Model NO.：WB 100*200
• Customized：Customized
• Condition：New
• Flame Retardant：High
• Finish：Electro Polishing
• Transport Package：Seaworthy Packing
• Specification：CE
• Trademark：Powtech
• Origin：China
• HS Code：73089000
• Production Capacity：Five 40hq Containers Per Month

Heighths of 35mm, 50mm, 60mm, 75mm, 100mm &150mm. Available for customized.Widths of 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm & 600mm.Length of 3000mm fit max loading capacity in 40'ft containers.Wire Mesh Cable Trays are constructed with a 50mm x 100mm mesh configuration.Diameters of wires are 4.0~ 6.0mm.
Installation Notice:

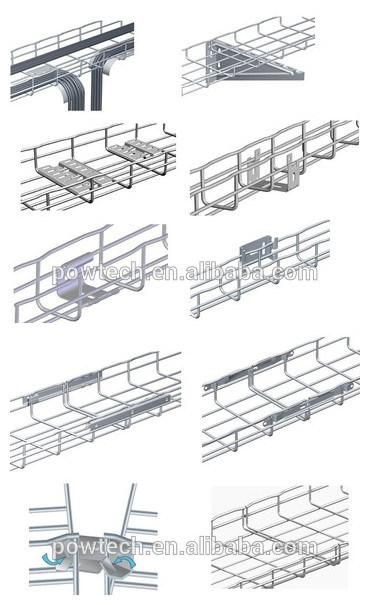

Bends, Risers, T Junctions, Crosses and Reducers can be made from wire mesh cable tray straight sections flexibly in projects.
Trays shall be supported at a maximum span of 2.5m by trapeze, wall, floor or channel mounting methods and will not exceed maximum loads as specified by the manufacturer.
Wire Mesh Cable Tray systems can be safely employed in places where the temperature ranges between -40deg C and +150deg; C without any change to their characteristics.

Application:
Wire Mesh Cable Trays are mainly used for low voltage, telecommunication, and fiber optic cables supported on short spans.

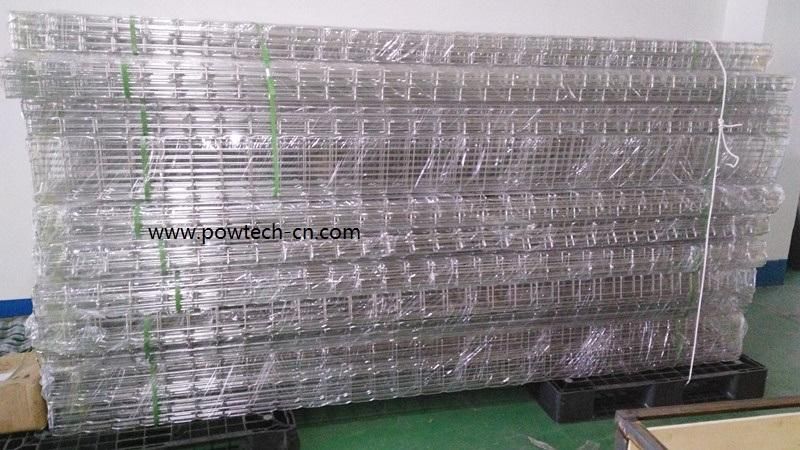

Package&Shipment:


Contact us:
